30 mm min.
C
Rail stopper

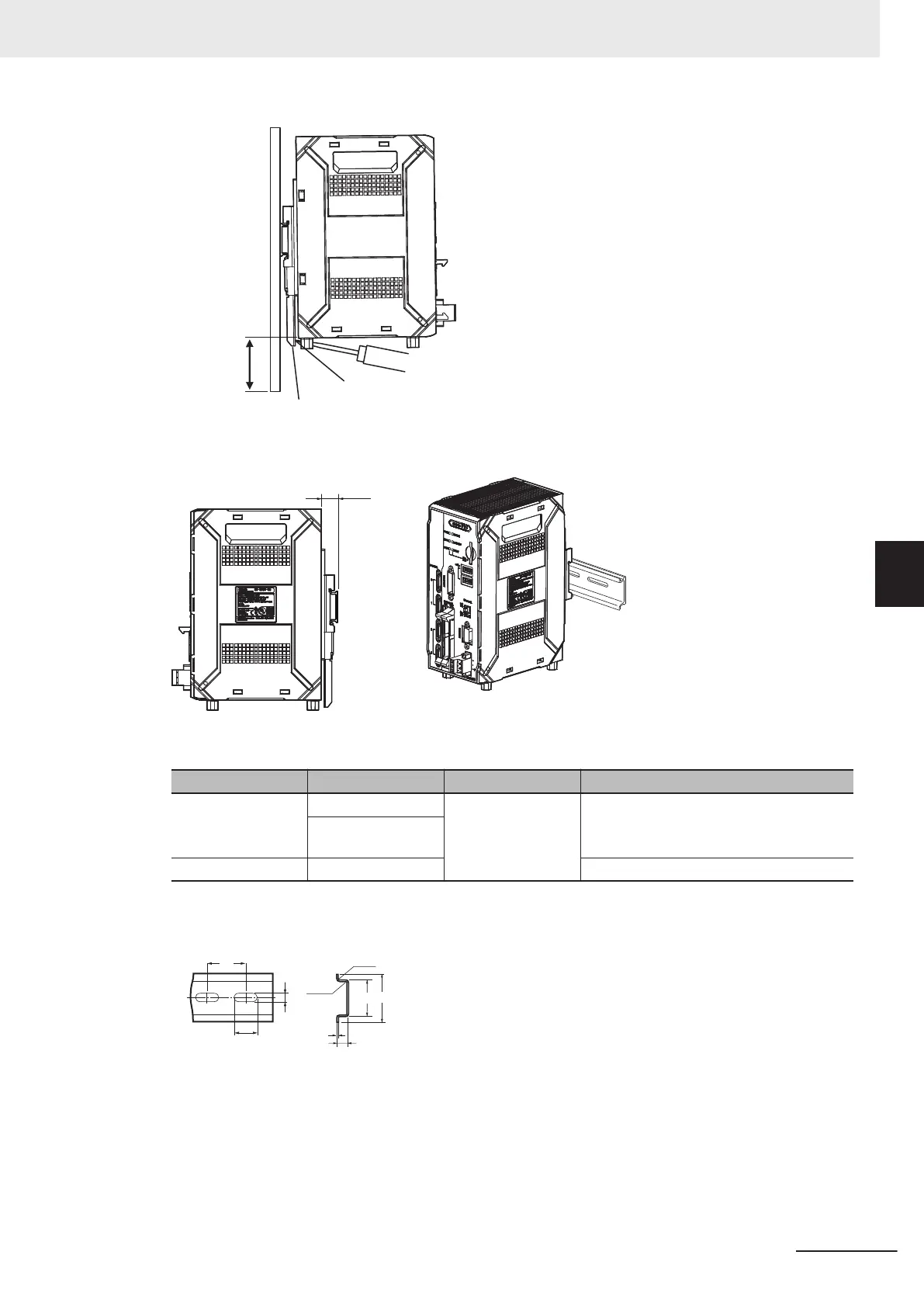

• The back clearance of DIN rail when mount the DIN rail is 16.1 mm.
16.1
• The following items are recommended for mounting DIN rail.
Name Model Manufacturer Note
DIN35 mm rail
NS 35/ 7,5 PERF
PHOENIX CON-
T
ACT
• Length: 75.5/95.5/1
15.5/200 cm
• Material: Iron
• Surface: Conductive
NS 35/ 15 PERF
End plate CLIPFIX 35 Need 2 pieces each Sensor Controller.
• DIN rail Dimensions:
NS 35/7.5 PERF
1
7.5
35
27
R0.8
R0.8
6.2
15
25
NS 35/165 PERF
5 Setup and Wiring
5-39
FH Series Vision System Hardware Setup Manual (Z366-E1)
5-8 Installation in a Control Panel
5
5-8-3 FH-L Series
