5
FQ2

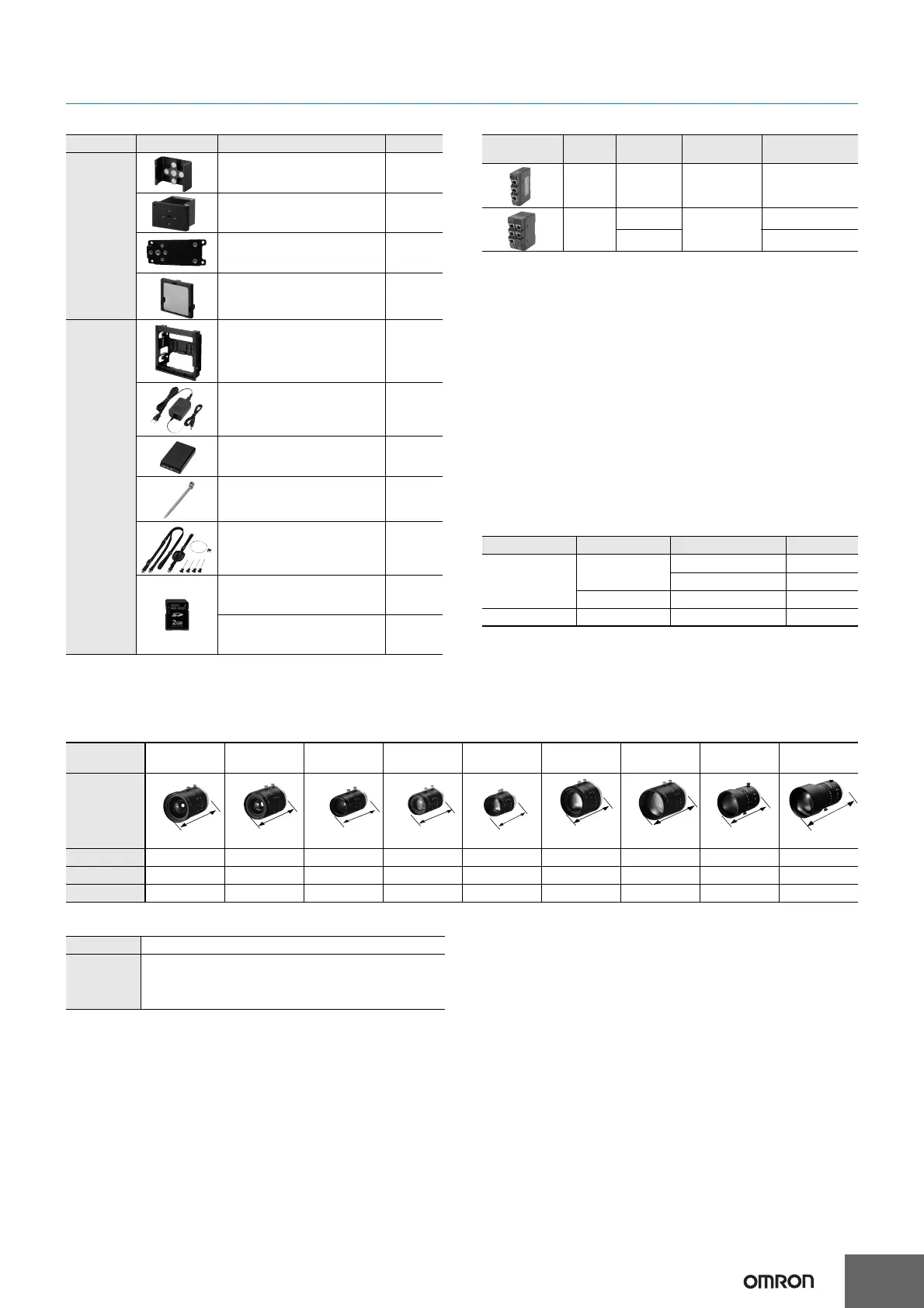

Accessories
Industrial Switching Hubs (Recommended)
*1 Included with Integrated Sensor.
*2 A mounting Bracket with improved resistance to vibrations and
other external stresses that cause displacement of the optical axis
and field of view.
*3 Included with Sensor with C-mount.
*4 AC Adapters for Touch Finder with DC / AC / Battery Power
Supply. Select the model for the country in which the Touch
Finder will be used.
*5 The Battery uses a lithium ion secondary battery. Confirm any
applicable laws and regulations in the destination country if you
export the Battery.
*6 Enclosed with Touch Finder.
Lenses for C-mount Camera Refer to optical chart on p.12 for selection of a lens.
High-resolution, Low-distortion Lenses
Extension Tubes
* Do not use the 0.5-mm, 1.0-mm, and 2.0-mm Extension Tubes
attached to each other. Since these ExtensionTubes are placed
over the threaded section of the Lens or other Extension Tube, the
connection may loosen when more than one 0.5-mm, 1.0- mm or
2.0-mm Extension Tube are used together.
* Reinforcement is required to protect against vibration when
Extension Tubes exceeding 30 mm are used.
Application Appearance Name Model
For Sensor
Mounting Bracket *1 FQ-XL
Mounting Bracket for high-
precision sensing *2
FQ-XL2
Mounting Base for
C-mount type *3
FQ-XLC
Polarizing Filter Attachment *1 FQ-XF1
For Touch
Finder
Panel Mounting Adapter FQ-XPM
AC Adapter
(for AC/DC/battery model)
*4
FQ-A@
Battery *5
(for AC/DC/battery model)
FQ-BAT1
Touch Pen *6 FQ-XT
Strap FQ-XH
SD Card (2 GB)
HMC-
SD291
SD Card (4 GB)
HMC-
SD491
Appearance
Number
of ports
Failure
detection
Current
consumption
Model
3 None 0.22 A W4S1-03B
5
None
0.22 A
W4S1-05B
Supported W4S1-05C
Plug Type Voltage Certified standards Model
A
125 V max.
PSE FQ-AC1
UL/CSA FQ-AC2
250 V max. CCC mark FQ-AC3
C 250 V max. --- FQ-AC4
Model
3Z4S-LE
SV-0614H
3Z4S-LE
SV-0814H
3Z4S-LE
SV-1214H
3Z4S-LE
SV-1614H
3Z4S-LE
SV-2514H
3Z4S-LE
SV-3514H
3Z4S-LE
SV-5014H
3Z4S-LE
SV-7525H
3Z4S-LE
SV-10028H
Appearance/
Dimensions
(mm)
Focal length 6mm 8mm 12mm 16mm 25mm 35mm 50mm 75mm 100mm
Brightness F1.4 F1.4 F1.4 F1.4 F1.4 F1.4 F1.4 F2.5 F2.8
Filter size M40.5 P0.5 M35.5 P0.5 M27 P0.5 M27 P0.5 M27 P0.5 M35.5 P0.5 M40.5 P0.5 M34.0 P0.5 M37.5 P0.5
36 dia.
42.0[WD:
∞
] to
54.6[WD:1200]
39 dia.
66.5[WD:
∞
] to
71.6[WD:2000]
Model 3Z4S-LE SV-EXR
Contents
Set of 7 tubes
(40 mm, 20 mm,10 mm, 5 mm,
2.0 mm,1.0 mm, and 0.5 mm)
Maximum outer diameter: 30 mm dia.
To Next Page
