G9SA
G-119G9SA

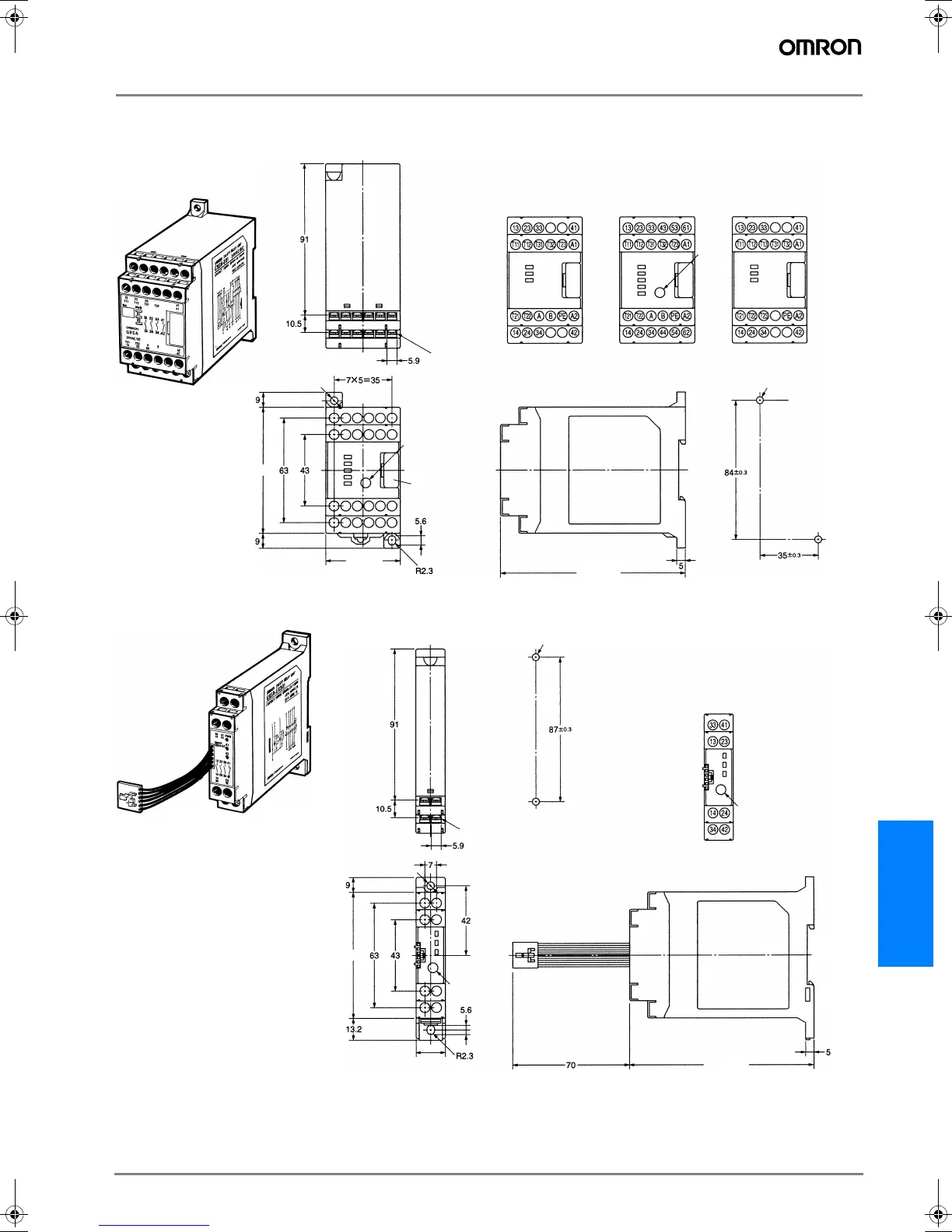

Dimensions
Note: All units are in millimeters unless otherwise indicated. The diagrams are drawn in perspective.
C
D
Terminal Arrangement
G9SA-301 G9SA-TH301
Mounting Holes
Two, 4.2 dia. or M4
Terminal Arrangement
Mounting Holes
Two, 4.2 dia. or M4
4.6 dia.
45 max.
76 max.
111 max.
4.6 dia.
111 max.
76 max.
17.5 max.
Connector cover
Eight, M3
G9SA-301
G9SA-501
G9SA-321-T#
G9SA-TH301
G9SA-EX301
G9SA-EX031-T#
G9SA-301: Twenty, M3
G9SA-501: Twenty-four, M3
G9SA-321-T#: Twenty-four, M3
G9SA-TH301: Twenty-one, M3
OFF-delay time
setting switch
(see note)
Note: The OFF-delay time setting switch is
found on the G9SA-321-T# only.
G9SA-501
G9SA-321-T#
OFF-
delay
time
setting
switch
(see
note)
OFF-delay time
setting switch
(see note)
Note: The OFF-delay time setting switch is
found on the G9SA-EX031-T# only.
G9SA-EX301
G9SA-EX031-T#
OFF-delay time
setting switch
(see note)
F502-EN2-04.book Seite 119 Dienstag, 26. Juli 2005 5:48 17

Other manuals for Omron G9SA

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Omron G9SA and is the answer not in the manual?

Omron G9SA Specifications

General IconGeneral
Rated Current6A
Mounting TypeDIN Rail
Dimensions90mm x 22.5mm x 100mm
WeightApprox. 200g
Safety CategoryCategory 4
Rated Voltage24 VDC
Operating Temperature-10°C to 55°C
Contact Rating6A at 250V AC
Electrical Life100, 000 operations
Mechanical Life10, 000, 000 operations
