Omron H5S Series User Manual

H5S
16

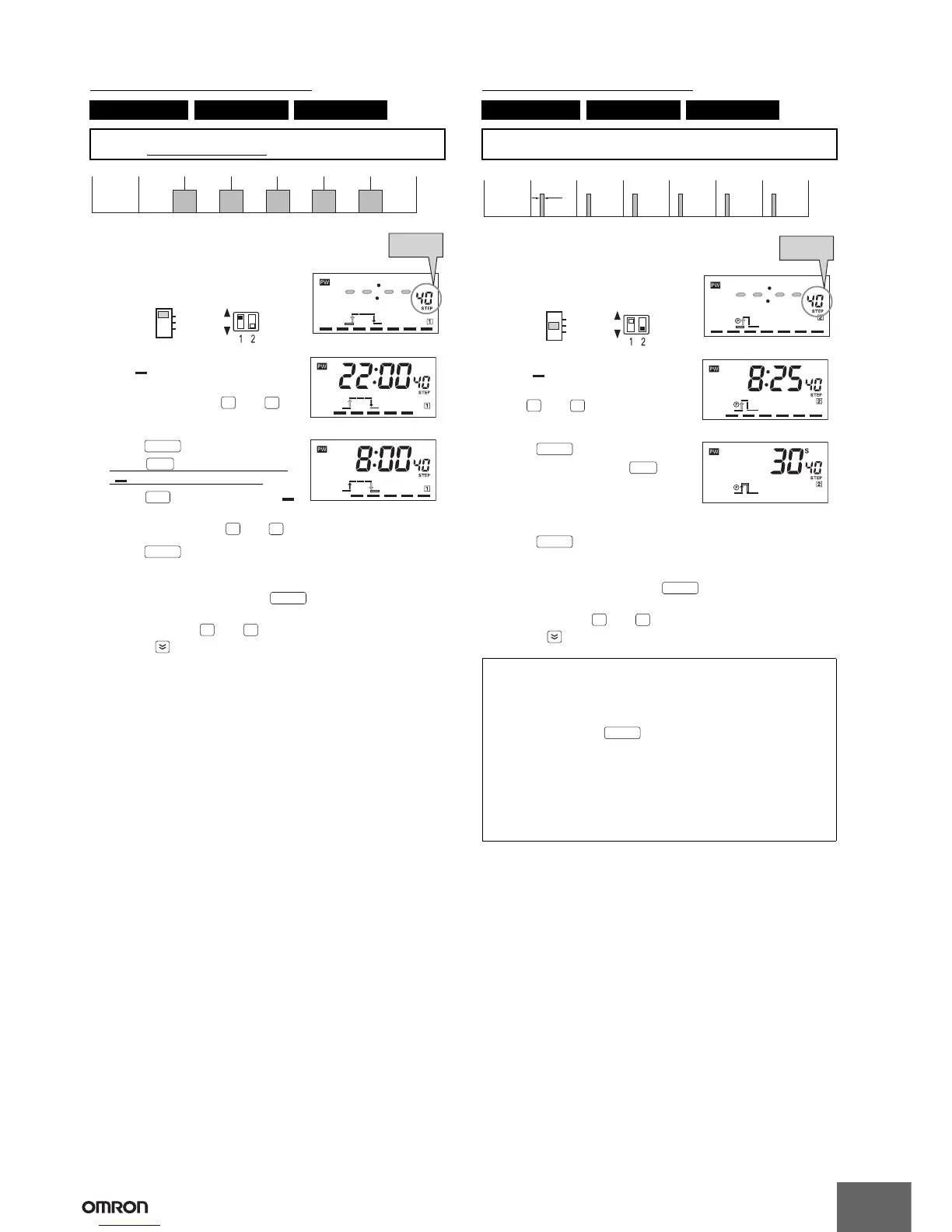

Multiple-day Operation 2 Pulse-output Operation
Weekly, 2 Circuits Yearly, 2 Circuits Yearly, 4 Circuits
Example: ON at 22:00 from Monday through Friday and OFF at 8:00
each following morning
.
1. Set the Mode Switch to P1 or P2. *1
(The Time Switch enters program
setting mode.)
→For 4-circuit models, refer to
page 18.
2. Press the Day Keys to turn ON the
bar ( ) at the positions of Monday
through Friday.
Set the ON time with and . *2
3. Press .
Press to turn OFF the bar
( ) at the Monday position and
press to turn ON the bar ( )
at the Friday position.
Set the OFF time with and . *2
4. Press to enter the settings.
*1 If one or more programs have already been set, the display starts
showing the set programs.
To add another program, press repeatedly until “--:--“
is displayed.
*2 Holding down the and Keys rapidly advances the value.
Pressing decrements the value of the key that was last
pressed.
22 8 22 8 22 8 22 8 22 8
SUN MON TUE WED THU FRI SAT
Shaded portion
indicates blinking of
the indicator.
SUN MON TUE WED THU FRI SAT
Number of
remaining steps
P1
P2
RUN
PULSE
TIMER
h
m
SUN MON TUE WED THU FRI SAT
WRITE
MON
SAT
h
m
SUN MON TUE WED THU FRI SAT
WRITE
WRITE
h
m
Weekly, 2 Circuits Yearly, 2 Circuits Yearly, 4 Circuits
Example: ON for 30 seconds at 8:25 am from Monday through
Saturday.
1. Set the Mode Switch to P1 or P2.*1
(The Time Switch enters program
setting mode.)
→For 4-circuit models, refer to
page 18.
2. Press the Day Keys to turn ON the
bars ( ) at the positions of Monday
through Saturday.Set the ON time
with and . *2
3. Press .
Set the pulse width with . *2
The displayed pulse width changes
by pressing this key in the following
order.
1s→2s…→59s→1m…→59m→60m→1s
4. Press to enter the settings.
*1If one or more programs have already been set, the display starts
showing the set programs.
To add another program, press repeatedly until “--:--“
is displayed.
*2Holding down the and Keys rapidly advances the value.
Pressing decrements the value of the key that was last
pressed.
Note:
• If multiple settings are required, repeat steps 2 through 4.
• Both the ON time and pulse width must be set.
• All of the weekly programs for the selected circuit (output) can be
checked by pressing in program setting mode.
• When the Mode Switch is set to P1 or P2 (to PRGM for the 4-
circuit model), the Time Switch stops automatic operation. To
forcibly turn ON or OFF the output, use the Output ON/OFF
switches.
• The set data will be cleared if the Output setting switch is moved
between the TIMER and PULSE positions after the data has been
set.
AM8:25
30 s
SUN MON TUE WED THU FRI SAT
Shaded portion
indicates blinking of
the indicator.
SUN MON TUE WED THU FRI SAT
Number of
remaining steps
P1
P2
RUN
PULSE
TIMER
h
m
SUN MON TUE WED THU FRI SAT
WRITE
PLS
SUN MON TUE WED THU FRI SAT
WRITE
WRITE
h
m
WRITE
Downloaded from Elcodis.com electronic components distributor

Omron H5S Series Specifications

General

Mounting Type	Panel Mount
Contact Form	SPDT
Contact Configuration	SPDT
Rated Voltage	30V DC
Protection Rating	IP40
Electrical Life	100, 000 operations minimum at rated load
