Omron H5S Series User Manual

H5S
15

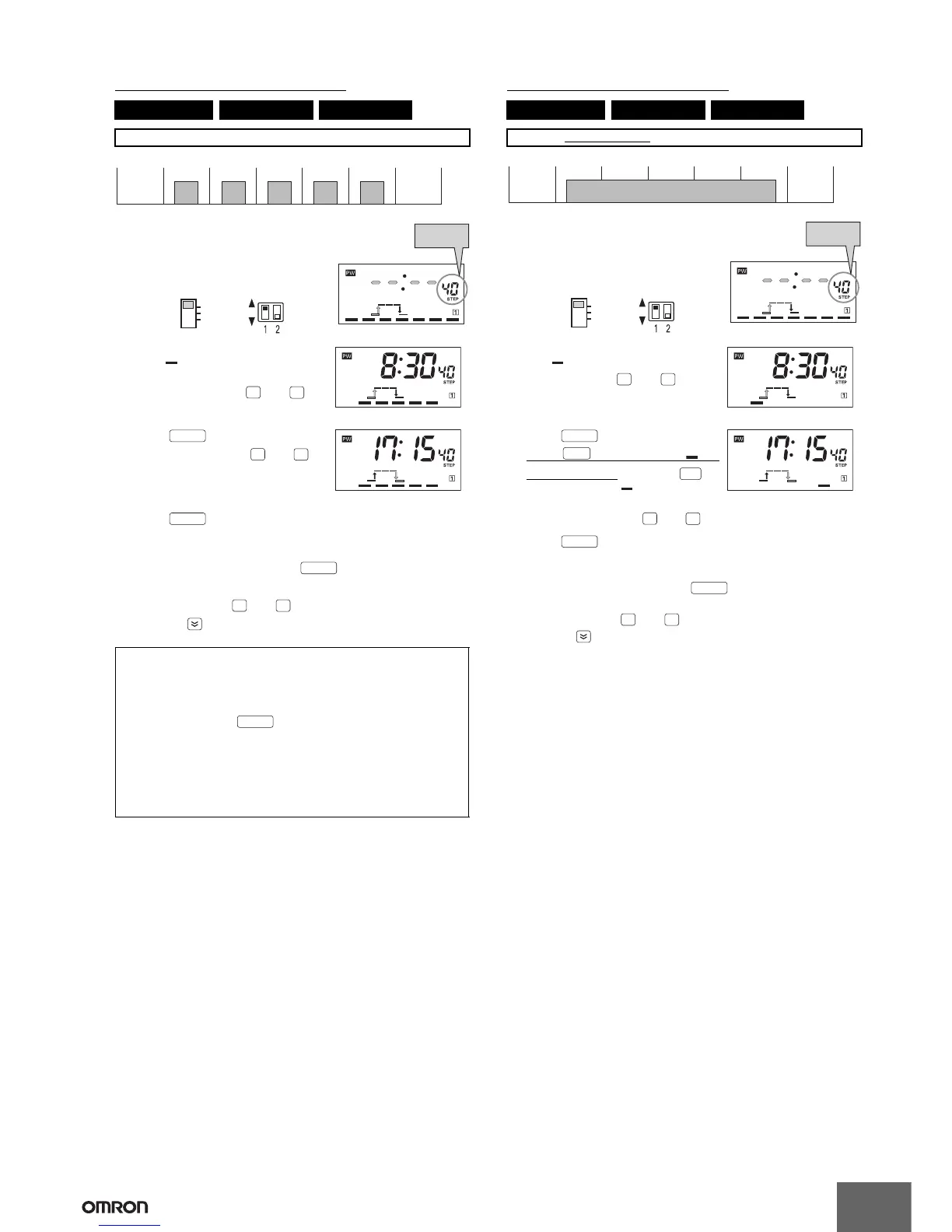

Ordinary Timer Operation Multiple-day Operation 1
Weekly, 2 Circuits Yearly, 2 Circuits Yearly, 4 Circuits
Example: ON at 8:30 and OFF at 17:15 on Monday through Friday.
1. Set the Mode Switch to P1 or P2. *1
(The Time Switch enters program
setting mode.)
→For 4-circuit models, refer to
page 18.
2. Press the Day Keys to turn ON the
bars ( ) at the positions of Monday
through Friday.
Set the ON time with and . *2
3. Press .
Set the OFF time with and . *2
4. Press to enter the settings.
*1 If one or more programs have already been set, the display
starts showing the set programs.
To add another program, press repeatedly until “--:--“
is displayed.
*2 Holding down the and Keys rapidly advances the value.
Pressing decrements the value of the key that was last
pressed.
Note:
• If multiple settings are required, repeat steps 2 through 4.
• Both the ON and OFF times must be set.
• All of the weekly programs for the selected circuit (output) can be
checked by pressing in program setting mode.
• When the Mode Switch is set to P1 or P2 (to PRGM for 4-circuit
models), the Time Switch stops automatic operation. To forcibly
turn ON or OFF the output, use the Output ON/OFF Switches.
• The set data will be cleared if the Output Setting Switch is moved
between the TIMER and PULSE positions after the data has been
set.
SUN MON TUE WED THU FRI SAT
8:30 17:15 8:30 17:15 8:30 17:15 8:30 17:15 8:30 17:15
Shaded portion
indicates blinking of
the indicator.
SUN MON TUE WED THU FRI SAT
Number of
remaining steps
P1
P2
RUN
PULSE
TIMER
h
m
SUN MON TUE WED THU FRI SAT
WRITE
h
m
SUN MON TUE WED THU FRI SAT
WRITE
WRITE
h
m
WRITE
Weekly, 2 Circuits Yearly, 2 Circuits Yearly, 4 Circuits
Example: ON continuously
from 8:30 on Monday to 17:15 on Friday.
1. Set the Mode Switch to P1 or P2.*1
(The Time Switch enters program
setting mode.)
→For 4-circuit models, refer to
page 18.
2. Press the Day Keys to turn ON the
bar ( ) at the Monday position.Set
the ON time with and . *2
3. Press .
Press to flash the bar ( ) at
all day positions and press to
turn ON the bar ( ) at the Friday
position.
Set the OFF time with and . *2
4. Press to enter the settings.
*1 If one or more programs have already been set, the display
starts showing the set programs.
To add another program, press repeatedly until “--:--“
is displayed.
*2 Holding down the and Keys rapidly advances the value.
Pressing decrements the value of the key that was last
pressed.
8:30 17:15
SUN MON TUE WED THU FRI SAT
Shaded portion
indicates blinking of
the indicator.
SUN MON TUE WED THU FRI SAT
Number of
remaining steps
P1
P2
RUN
PULSE
TIMER
h
m
SUN MON TUE WED THU FRI SAT
WRITE
MON
FRI
h
m
SUN MON TUE WED THU FRI SAT
WRITE
WRITE
h
m
