Omron H7CC-A Series User Manual

37
H7CC-A@
tachometer

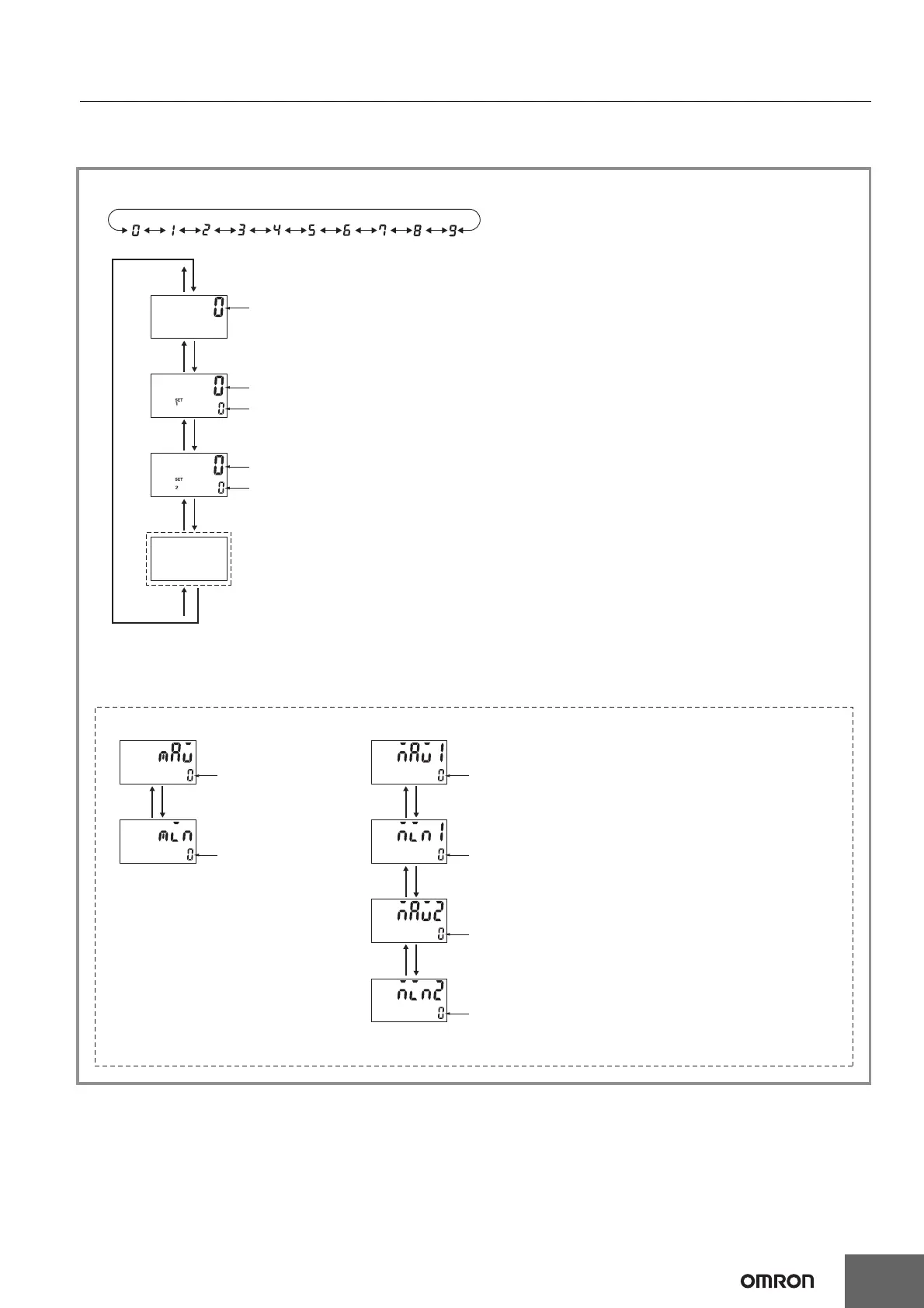

Operation in Run Mode
Tachometer Operation
**
*
*
*
*
*
*
*
＊4
*2
*1
*3
*
4.Peak/bottom hold enabled
*
1.Not displayed for the 2-input mode.
*
2.Measurement value 1 for the 2-input input mode.
*
3.Measurement value 2 for the 2-input input mode.
Measurement value 1
Comparison value 1
Measurement value 2
Comparison value 2
Measurement value
Bottom hold value
Peak hold value
Bottom hold value 1
Peak hold value 1
Bottom hold value 2
Peak hold value 2
• Measurement value
Displays the currently measured value.
• Comparison value 1/Comparison value 2
Set comparison value 1 and comparison value 2.
The measurement value is compared to
comparison value 1 and comparison value 2 and
output is made according to the selected output
mode.
Displayed when the input mode is not 2 inputs. Displayed for the 2-input input mode.
• Peak/bottom hold value
The peak (maximum) and bottom (minimum)
values are displayed after counting starts.
• Peak/bottom hold value 1 and 2
Peaks (maximums) 1 and 2 and bottoms
(minimums) 1 and 2 are displayed after counting
starts.
• Set each digit using the individual UP1 to UP6 Keys (DW1 to DW6 Keys).
* Use UP1+UP3 to move up and
DW1+DW3 to move down
*
Use UP1+UP3 to move up and
DW1+DW3 to move down
*
Use UP1+UP3 to move up and
DW1+DW3 to move down
Note: The hold values will be initialized when
reset operation is performed or reset 1
input is turned OFF while peak/bottom
hold values 1 and 2 are being displayed.
(The reset 2 input operates in the same
way if the input mode is set to 2-input
mode.)
