Omron H7CL-AD-500

H7CL
H7CL
5

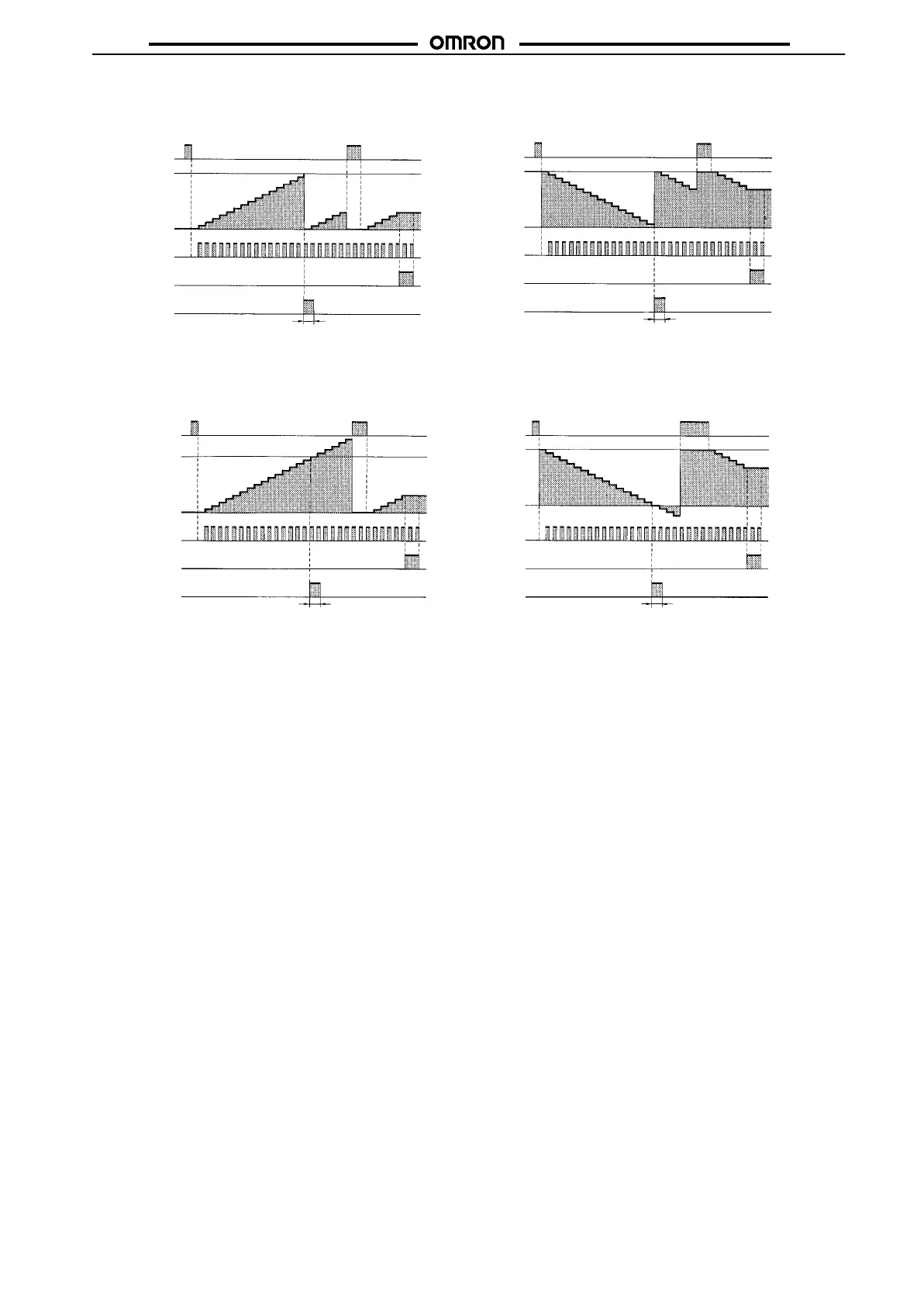

C Mode
Auto-reset, one-shot output is ON.
Up (Increment) Mode Down (Decrement) Mode
Set value
Count input
Gate input
Output
0
Reset input
Set value
Count input
Gate
input
Output
0
Reset input
t t
K Mode
Over-count, one-shot output is ON.
Up (Increment) Mode Down (Decrement) Mode
t
Set value
Count input
Gate
input
Output
0
Reset input
Set value
Count input
Gate
input
Output
0
Reset input
t
Note: t = one-shot time; 500 ms or 50 ms
