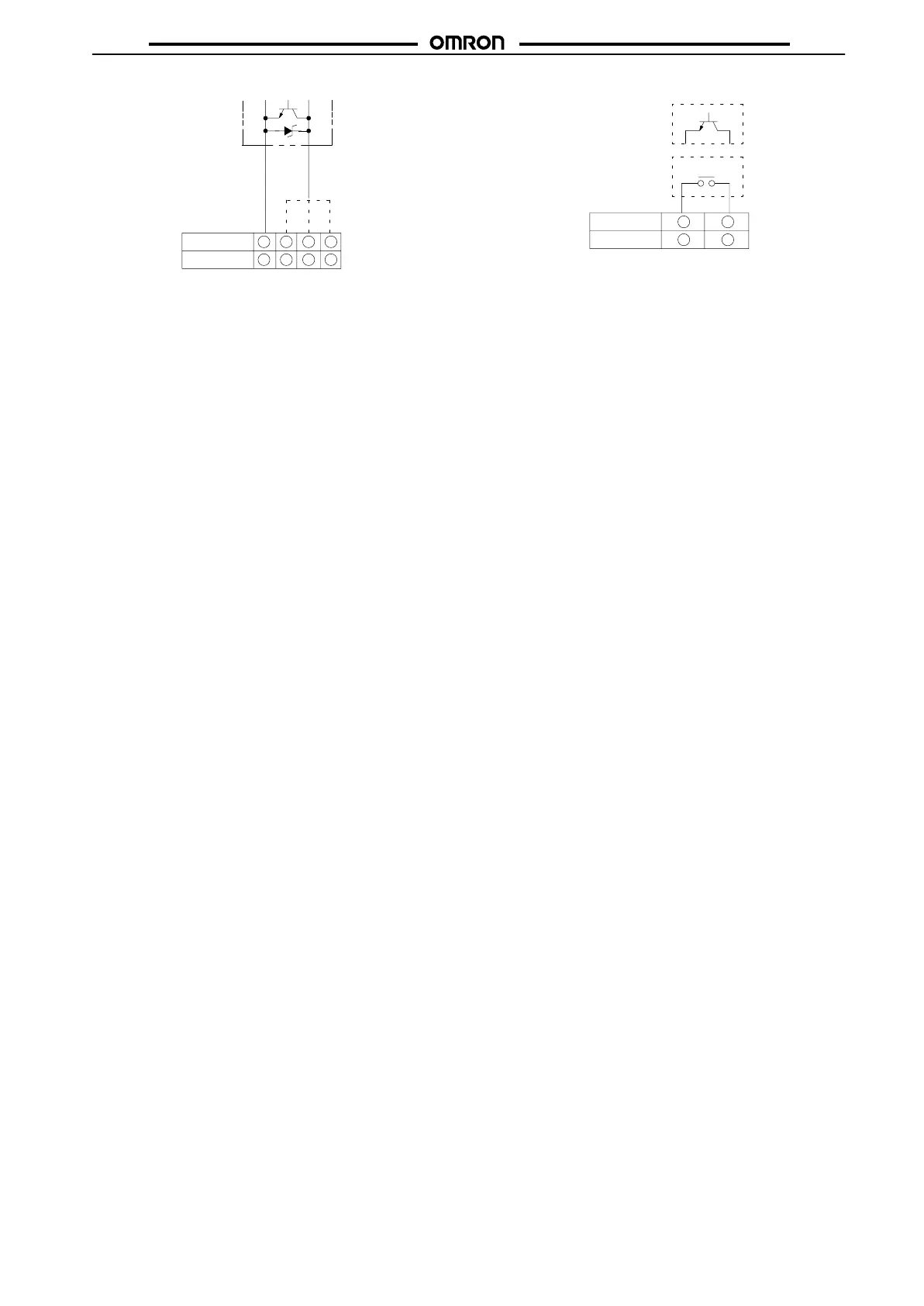

Two-wire Sensor
7653
7986
Sensor
0 V
AC models
DC models
Gate input
Count input
Reset input
0 V
Applicable T wo-wire Sensor
Leakage current: 1.5 mA max.
Switching capacity: 5 mA min.
Residual voltage: 3 V max.
Operating voltage: 10 VDC
Note: When
connecting a two-wire sensor to a DC models, sup -
ply
24 VDC (21.6 to 26.4 VDC) to the Counter .
Key Protection Input
43
106
AC models
DC models
Open collector
or
contact
0 V
Key protection input
Key Protection Input
ON impedance: 1 kΩ max.
(the leakage current is approx. 1 mA when the impedance is 0 Ω.)
ON residual voltage: 0.5 V max.
OFF impedance:
100 k Ω min.
Maximum applied voltage: 30 VDC max.
Note:
The used contact should switch 1 mA at 5 V .
