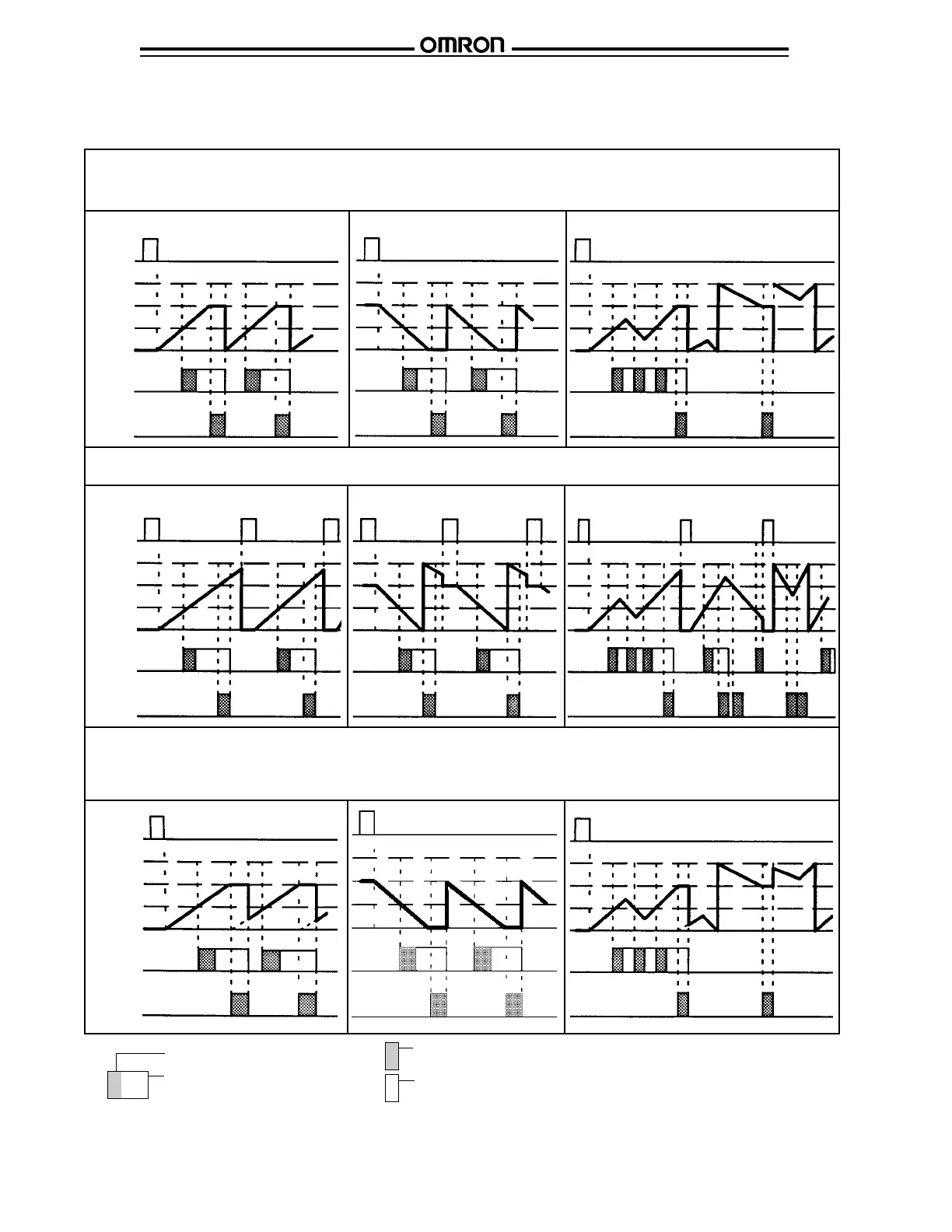

Output Mode P Present value display does not change during one-shot time period, but reset start status returns as soon as preset
count is reached. Outputs are one-shot and operate repeatedly. Output 1 latches ON at preset 1, and goes OFF after expiration of the
one-shot period for Output 2. One-shot time periods for Output 1 and 2 are independent.
Standard Counter Output Operation (Continued)
Up Down Reversible A, B, and C
Up Down Reversible A, B, and C
One-shot output from Output 1
Sustained output
One-shot outputs can be set to 10, 50, 100, 200 or 500 ms.
One-shot output from Output 2
Sustained output
Up Down Reversible A, B, and C
Output Mode K Present value runs continuously. Output 1 latches ON at preset 1, and goes OFF after expiration of the one-shot
period for Output 2. One-shot time periods for Output 1 and 2 are independent.
Output Mode R Present value display returns to reset start status after expiration of one-shot time period. Outputs are one-shot
and operate repeatedly. Output 1 latches ON at preset 1, and goes OFF after expiration of the one-shot period for Output 2. One-
shot time periods for Output 1 and 2 are independent.
(Bold line represents present value; Output 2 operation applies for single-preset models.)
