Omron H7CZ-L8

H7CZ
13

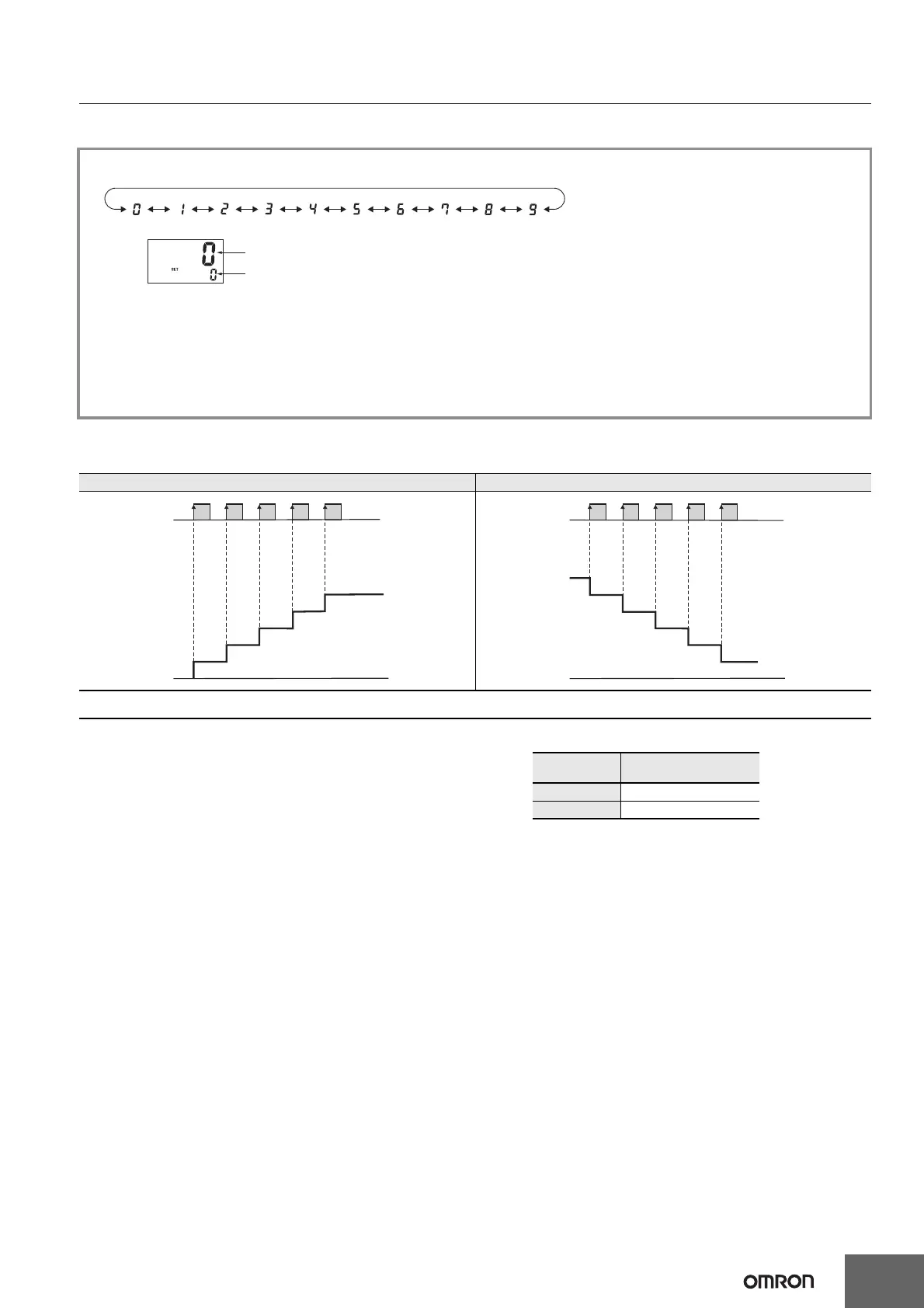

Operation in Run Mode
Input Modes and Present Value
I/O Functions for Counter Operation
Present value
Set value
• Set values for each digit as required using the U Key.
• Present Value
Shows the present count value.
• Set Values
Set the set values.
When the present value reaches the set value, a signal
is output according to the specified output mode.
UP (Increment) Mode DOWN (Decrement) Mode
* Counting starts when the count input is turned ON after turning ON the power.
Note: 1. The meaning of the H and L symbols in the tables is explained
below.
0
Count input
H
L
Present value
0
1
2
3
4
n
Count input
H
L
Present value
0
n−1
n−2
n−3
n−4
Symbol
Input method
No-voltage input
(NPN input)
H Short-circuit
L Open
