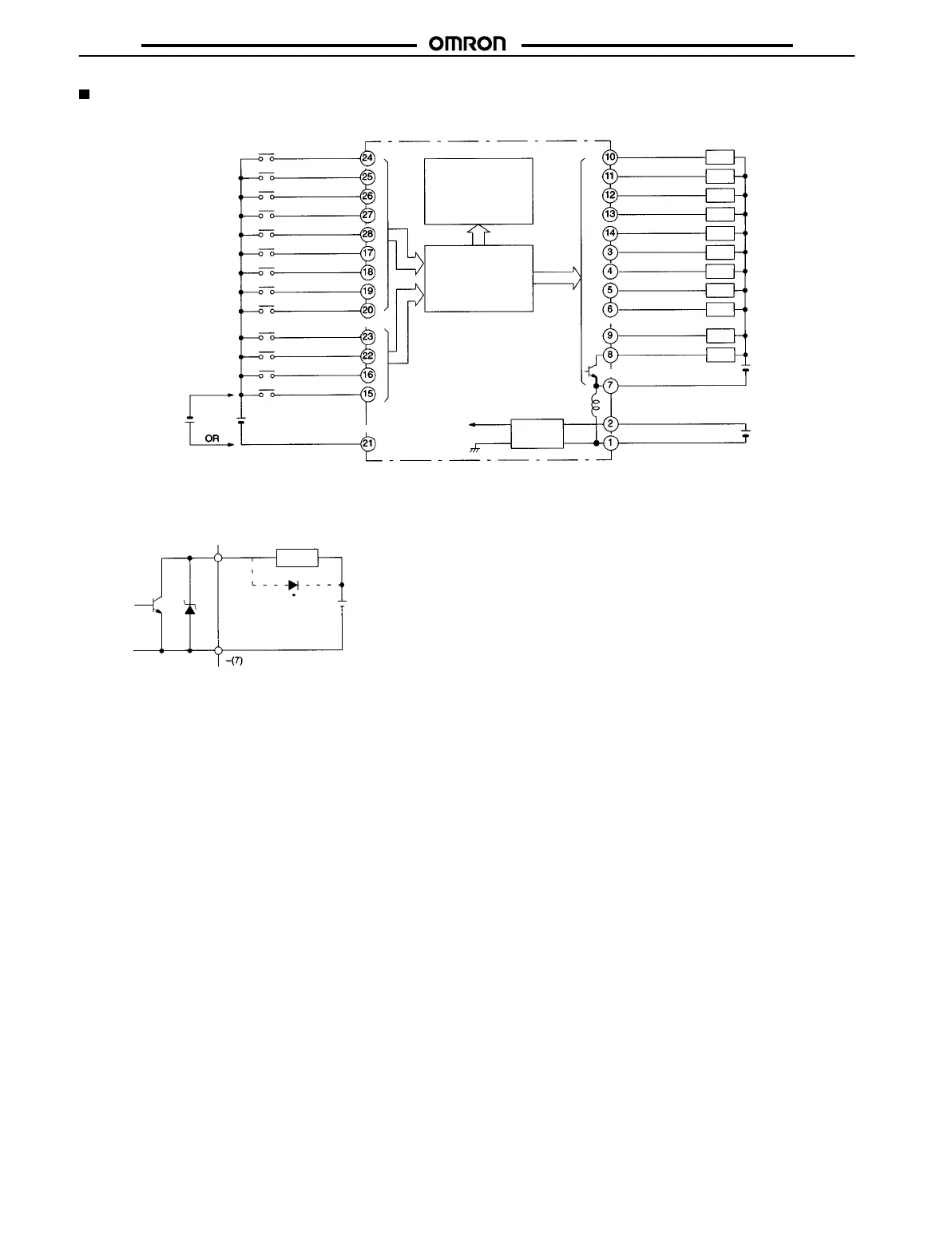

Connections
NPN Output
Count input 1
Count input 2
Count input 3
Count input 4
Count input 5
Count input 6
Count input 7
Count input 8
Count input 9
Count No.
selection
Reset input
I/O inhibit input
Re-monitor input
INPUT COM
16 to 30 VDC
DISPLAY
Count value
Setting value
Count up
6 digit, 3-stage
preset Counter
x 9
Forecast output 1
Forecast output 2
Forecast output 3
Forecast output 4
Forecast output 5
Forecast output 6
Forecast output 7
Forecast output 8
Forecast output 9
Machine
stoppage output
RUN output
OUTPUT COM
+24 V
0 V
24 VDC
+10%
–15%
5 V
Power
circuit
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Load
Note: Short-circuit terminals 1 and 7 when the power source of the Counter is shared.
H8BM-BD/-BDP outputs the forecast and machine stoppage values simultaneously .
RUN, machine stoppage,
forecast outputs 1 to 9
30 VDC
Max.
Load
* Connect a diode to suppress Counter surge when an inductive
load is connected.
Note: When the load is short-circuited, the internal circuits may be
damaged.
