Omron NJ Series Quick Start Guide

10
4.

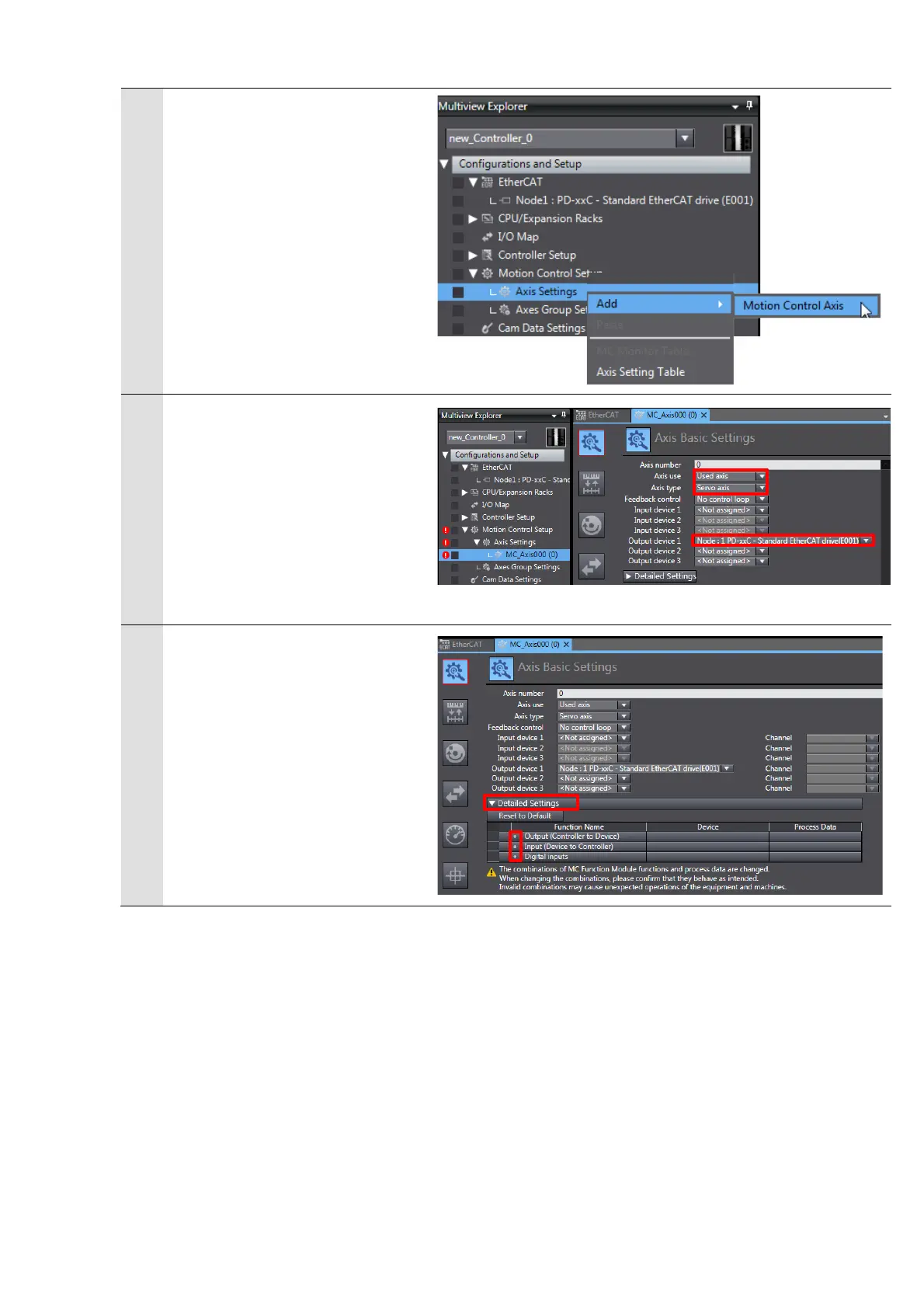

Right click Axis Settings -> Add
-> Motion Control Axis.
5.
Select the new axis
MC_Axis000(0) and change the
following parameters in the Axis
Basic Settings tab.
Axis use: Used axis
Axis type: Servo axis
Output device 1: Node : 1PD-xxC
– Standard EtherCAT drive(E001)
6.
Select Detailed Settings.
Expand Output (Controller to
Device), and Input (Device to
Controller.

Omron NJ Series Specifications

General

Program Capacity	Up to 128 MB
SD Card Slot	Yes
Power Supply Voltage	24 VDC
Motion Control	Yes
USB Ports	1
Operating Temperature	0°C to 55°C
Communication Interfaces	Ethernet/IP, EtherCAT, USB
Safety Function	Optional
Storage Temperature	-20°C to 75°C
Communication Ports	USB
Dimensions	Varies by model
Weight	Varies by model
