Omron NX-SL5500 How To Connect

Rev. 1.0
13

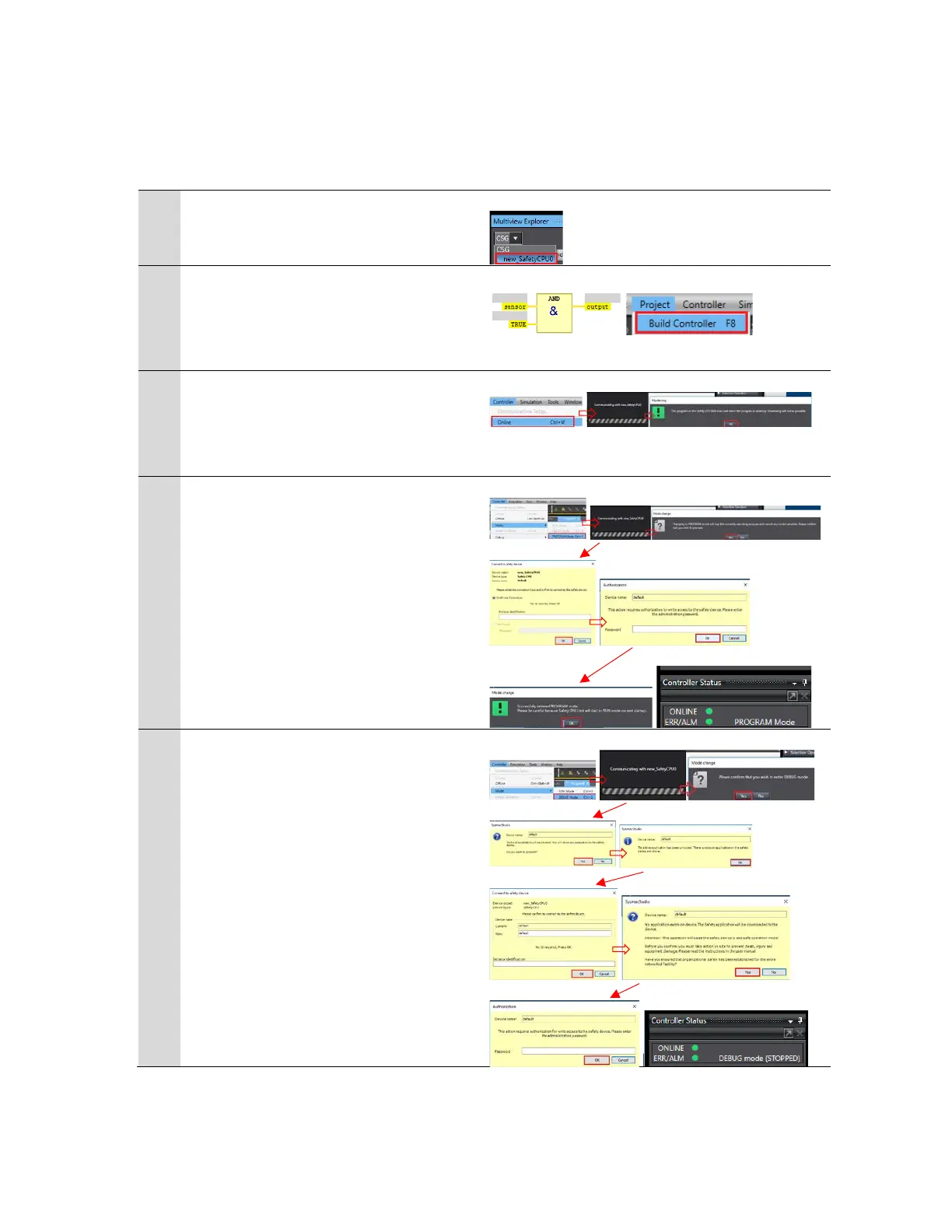

2.3.3. Transferring the Safety Program
Transfer the safety program to the safety CPU unit.
1
From the Multiview Explorer, select
new_SafetyCPU0.
2
In the Offline mode create the safety
program.
Select from the top menu Project ->
Build Controller to check for errors and
compile the project.
3
Select from the top menu Controller ->
Online to go online to the safety
network controller.
The Monitoring warning dialog box is
displayed. Select OK.
4
Select from the top menu Controller ->
Mode -> PROGRAM Mode.
The Mode change dialog box is
displayed. Select Yes.
Various dialog boxes will be displayed.
Read and choose the option accordingly.
Check the message in Controller Status
pane to show PROGRAM Mode.
5
Select from the top menu Controller ->
Mode -> DEBUG Mode to begin
downloading the safety program.
The Mode change dialog box is
displayed. Select Yes.
Various dialog boxes will be displayed.
Read and choose the option accordingly.
Check the message in Controller Status
pane to show DEBUG mode (STOPPED).
