Omron NX-SL5500 How To Connect

Rev. 1.0
2

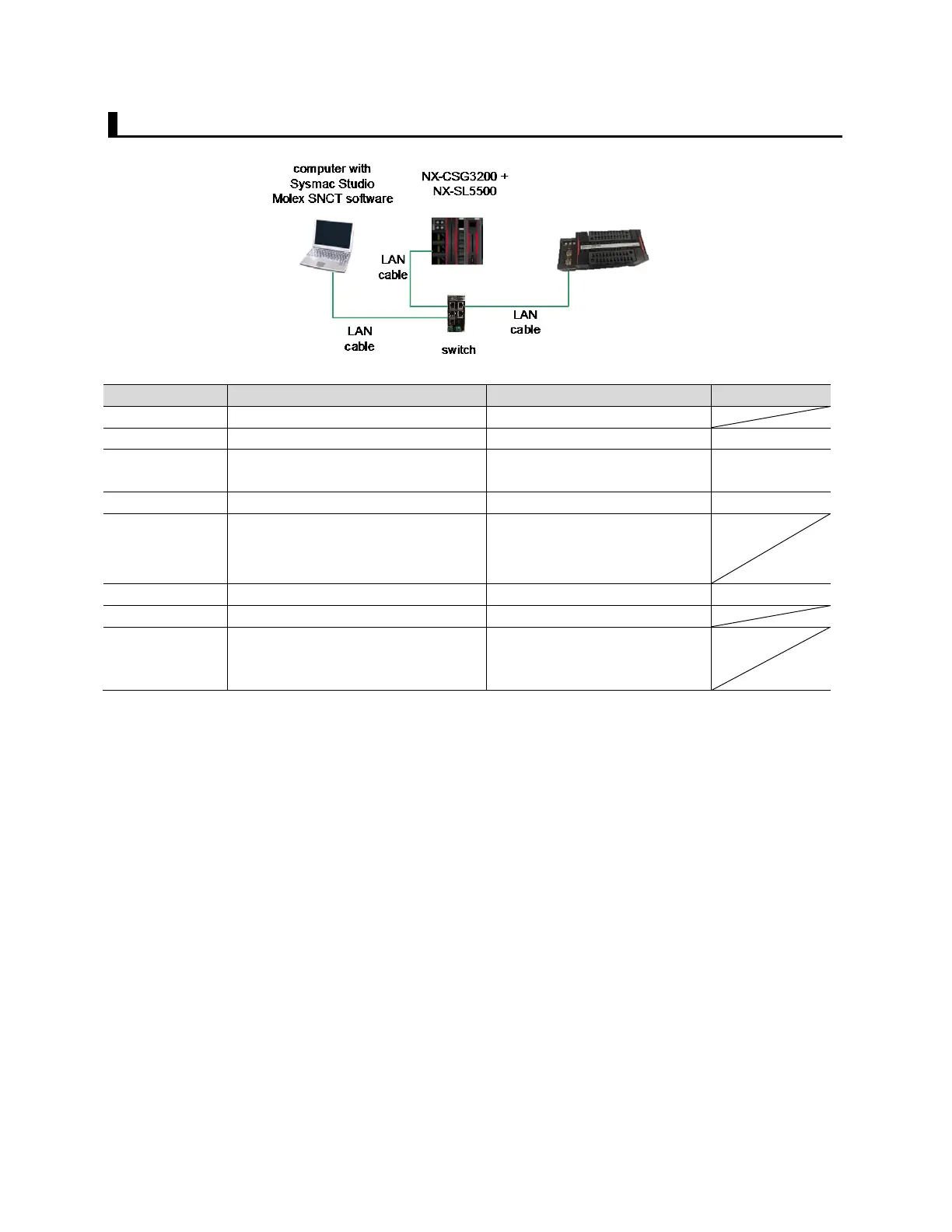

1.2. Device Configuration
Manufacturer
Name
Model
Version
OMRON
Ethernet switch
W4S1-05B
OMRON
NX-series Safety CPU unit
NX-SL5500
Ver. 1.3
OMRON
NX-series Communication Control
unit
NX-CSG3200
Ver. 1.01
OMRON
Sysmac Studio
SYSMAC-SE2xxx
Ver.1.25.1
OMRON
Compress CIP device file
CIP_Safety_XXXXX.zip
* XXXXX is a unique name for
each target device to be added
OMRON
Safety I/O block
GI-SMD1624
1.0
-
Personal computer (OS: Win 10)
-
-
LAN cable (STP (shielded, twisted-
pair) cable of Ethernet category 5
or higher)
-
GI-SMD1624
