Omron NX102 series Network Connection Guide

7．IO-Link Connection Procedure
18
5

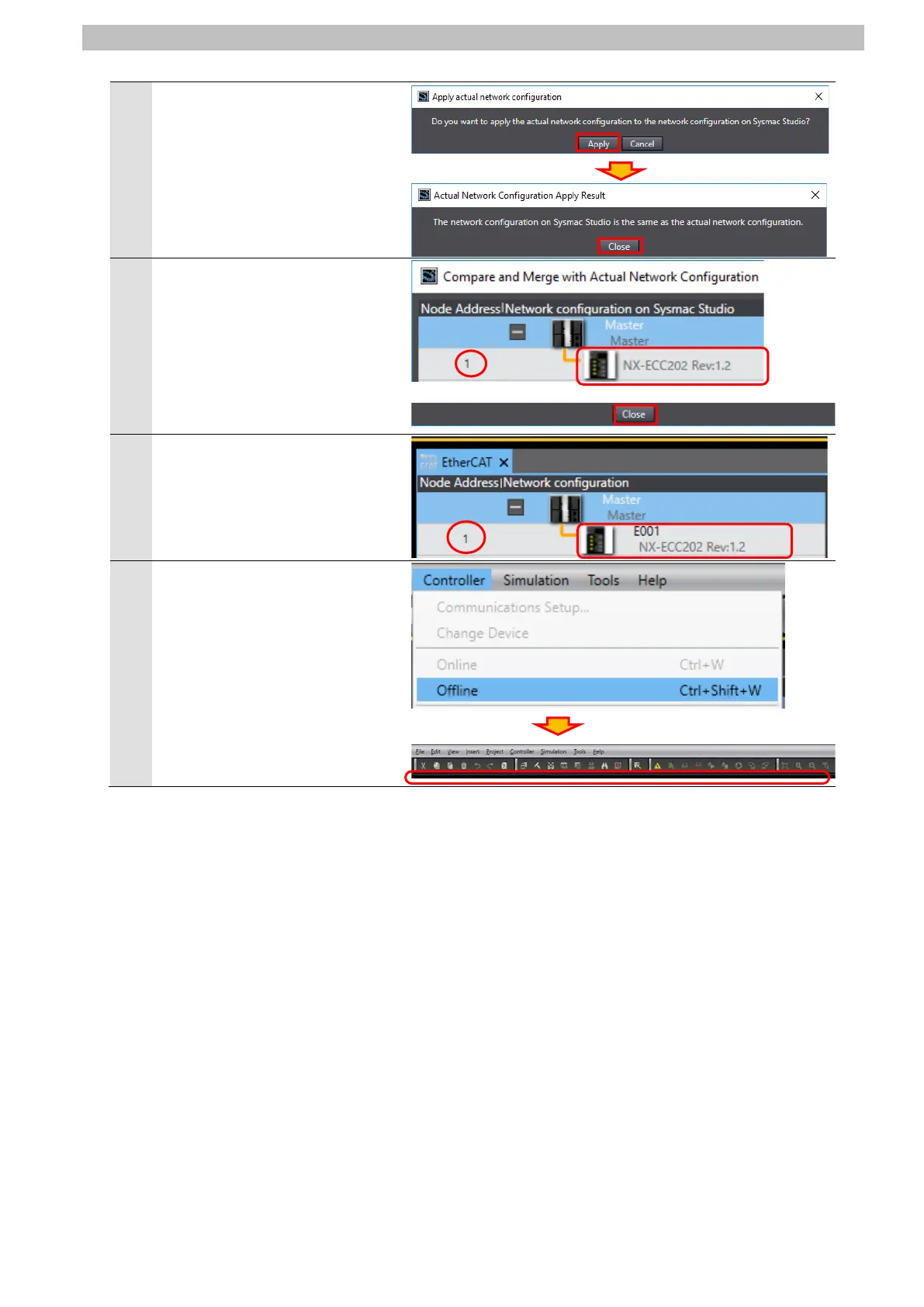

A confirmation dialog box is
displayed. Check the contents
and click Apply.
A result dialog box is displayed.
Check the contents and click
Close.
6
As a node address 1 slave,
E001 NX-ECC202 Rev:1.2 is
added to the Network
configuration on Sysmac Studio.
Check that the data is added.
Click
Close
.
7
The node address 1 and E001
NX-ECC202 Rev:1.2 are added
to the EtherCAT Tab Page of the
Edit Pane.
8
Select Offline from the
Controller Menu.
The yellow line under the toolbar
disappears.
