NXR-ILM08C-EIT
16

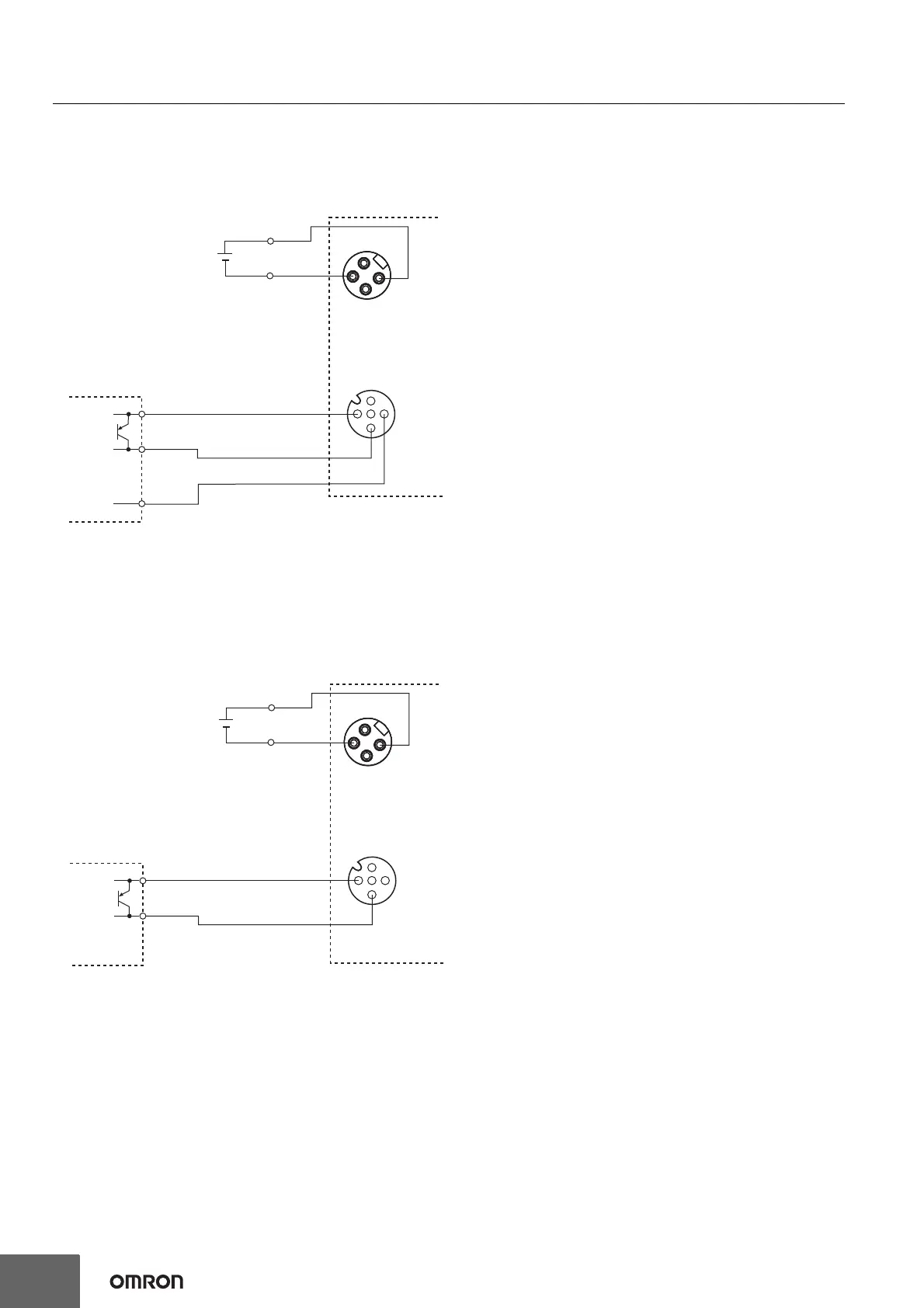

Wiring Example for Non-IO-Link Input Devices
Wiring Example for Three-wire Sensors
In this example, the port is used in the following communications modes.
Pin 4: SIO (DI) Mode, pin 2: Disabled
Wiring Example for Two-wire Sensors
In this example, the port is used in the following communications modes.
Pin 4: SIO (DI) Mode, pin 2: Disabled
Three-wire sensor
PNP type
4
2
3
1
2
1
3
4
U/IN P-
U/IN P+
Power supply connector (input)
I/O connector
L+ brown
C/Q black
L- blue
IO-Link Master Unit
Unit/input power supply
Two-wire sensor
4
2
3
1
2
1
3
4
U/IN P-
U/IN P+
Power supply connector (input)
I/O connector
L+ brown
C/Q black
IO-Link Master Unit
Unit/input power supply
