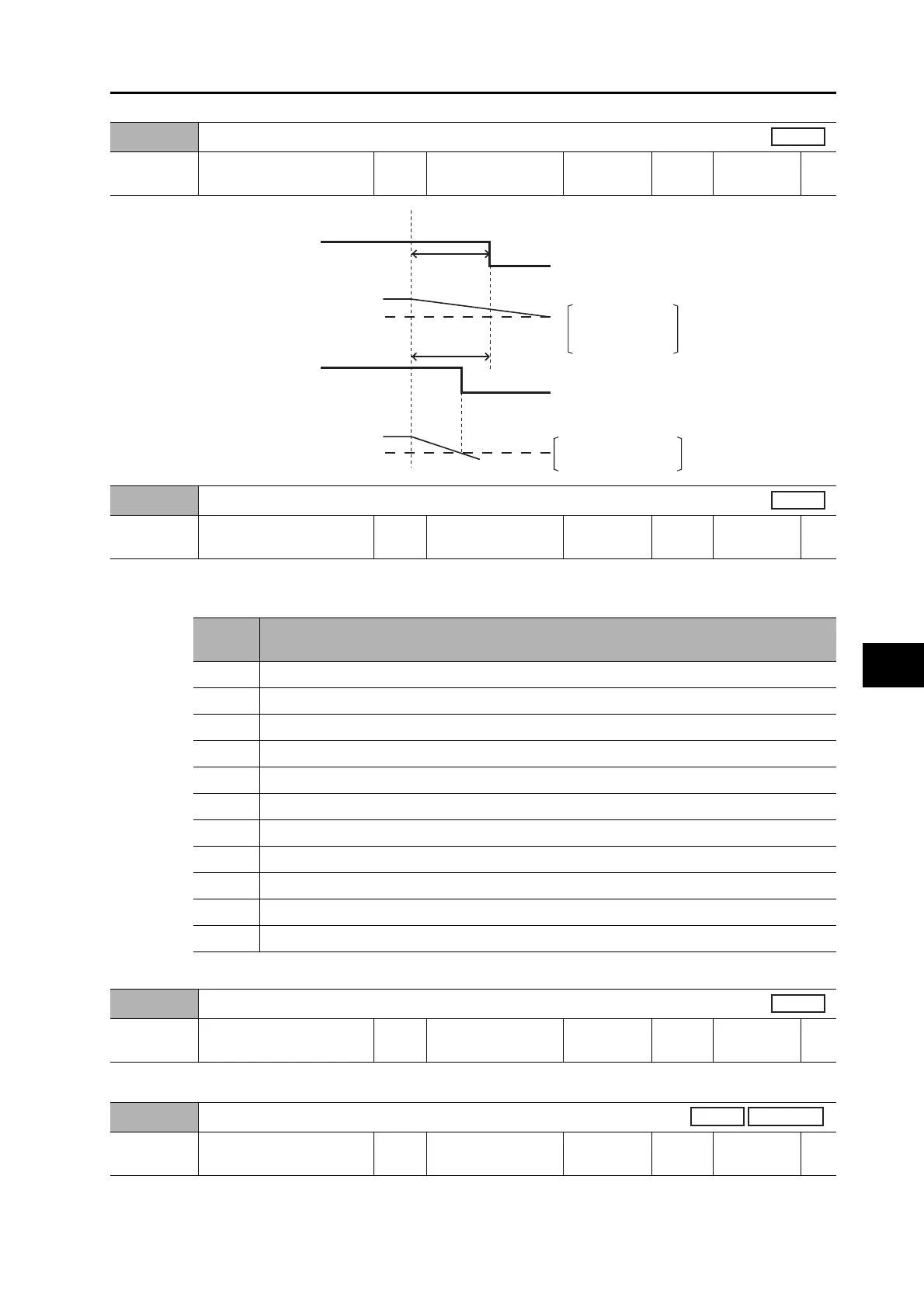

8-5 Interface Monitor Setting Parameters
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
8
Parameter Details
Explanation of Set Values
 Refer to "11-2 Warning List" (P.11-4) for more information on settings.
 The set values for this parameter are same as Warning Output Selection 1 (Pn440).
 Set the positioning completion range.
The set values for this parameter are same as Positioning Completion Range 1 (Pn431).
Pn439
Brake Release Speed Setting
Setting
range
30 to 3,000 Unit r/min
Default
setting
30
Power OFF
and ON
−
All
Released (ON)
Engaged (OFF)
Pn438 set value
Motor rotation speed
Pn439 set value
When the motor
takes longer than
Pn438 ms to reach
Pn439 rpm
Pn438 set value
t1
*1
t1
*1
Released (ON)
Engaged (OFF)
Motor rotation speed
Pn439 set value
When the motor takes
less than Pn438 ms to
reach Pn439 rpm
Pn440
Warning Output Selection 1
Setting
range
0 to 10 Unit −
Default
setting
0
Power OFF
and ON
−
All
Set
value
Description
0 An OR output of all alarm status
1 Overload warning
2 Excessive regeneration warning
3 Battery warning
4Fan warning
5 Encoder communications warning
6 Encoder overheating warning
7 Vibration detection warning
8 Service life detection warning
9 External encoder error warning
10 External encoder communications error warning
Pn441
Warning Output Selection 2
Setting
range
0 to 7 Unit −
Default
setting
0
Power OFF
and ON
−
All
Pn442
Positioning Completion Range 2
Setting
range
0 to 262,144 Unit Command unit
Default
setting
10
Power OFF
and ON
−
Position
Fully-closed
