3-111
3-4 Cable and Connector Specifications
OMNUC G5-SERIES AC SERVOMOTOR AND SERVO DRIVE USER'S MANUAL
3
Specifications
Analog Monitor Cable Specifications
Analog Monitor C
able (R88A-CMK001S)

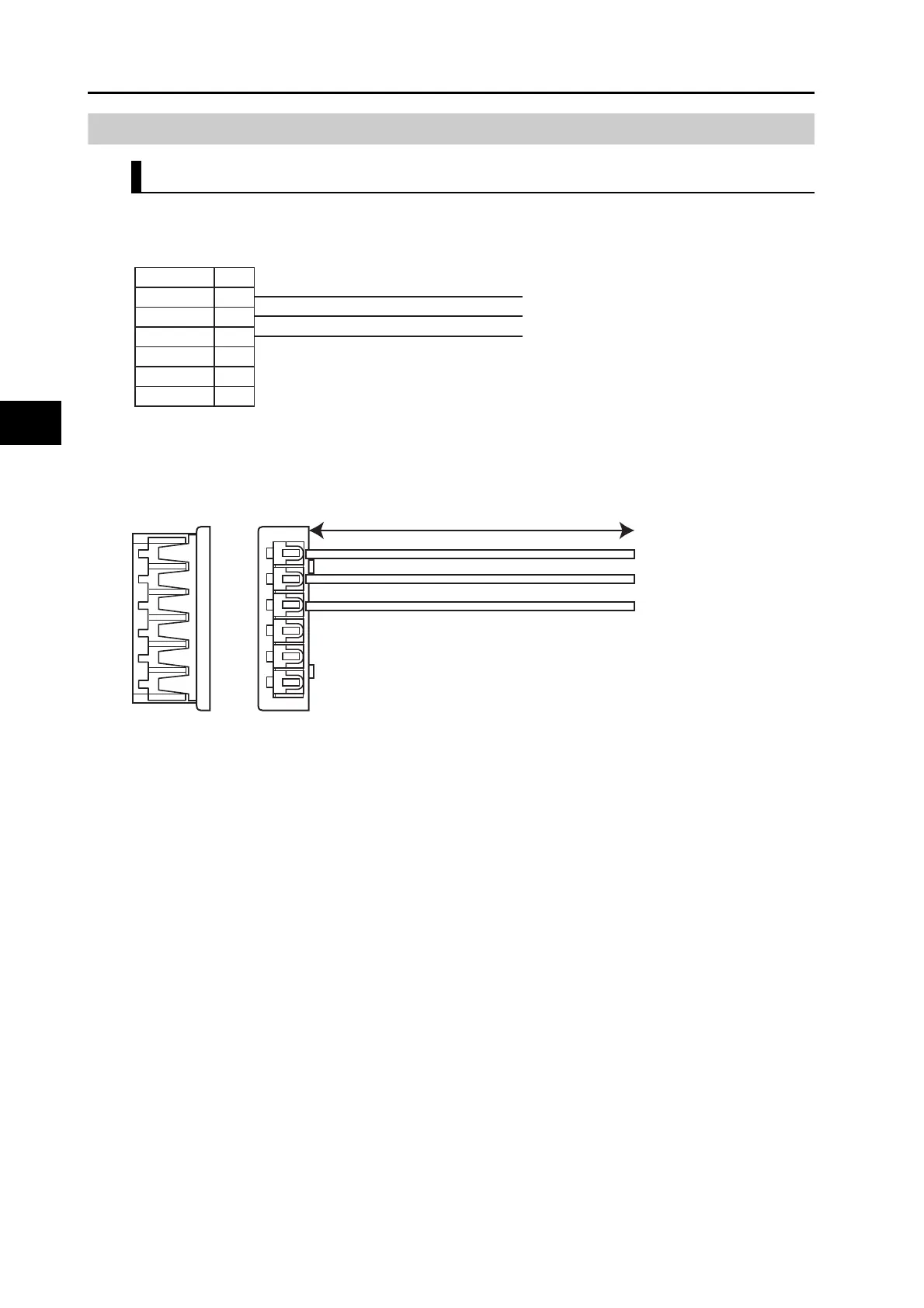

Connection configuration and external di
mensions
Symbol
Black
Red
White
Cable: AWG24
×
3C UL1007
Connector housing: 51004-0600 (Molex Japan)
Connector terminal: 50011-8000 (Molex Japan)
No.
1
2
3
4
5
6
AM1
AM2
GND
1 m
229
231
