2-1
12
D
T

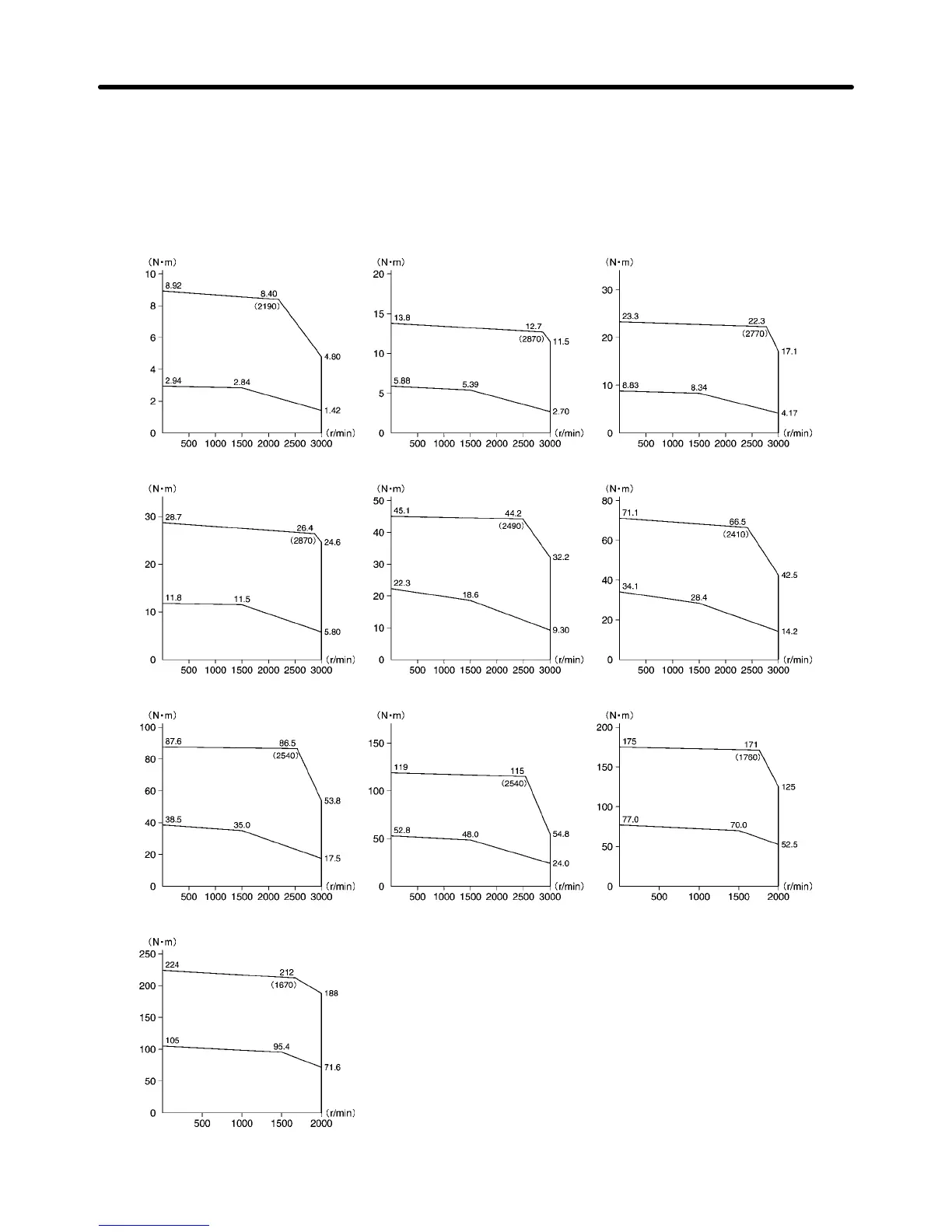

orque and Rotation Speed Characteristics
1,500-r/min Servomotors (200 V AC)
The following graphs show the characteristics with a 3-m standard cable and 200-V AC input.
Repeated usage
Continuous usage
R88M-W45015T (450 W)
Repeated usage
Continuous usage
R88M-W85015T (850 W)
Repeated usage
Continuous usage
R88M-W1K315T (1.3 kW)
Repeated usage
Continuous usage
R88M-W1K815T (1.8 kW)
Repeated usage
Continuous usage
R88M-W2K915T (2.9 kW)
Repeated usage
Continuous usage
R88M-W4K415T (4.4 kW)
Repeated usage
Continuous usage
R88M-W5K515T (5.5 kW)
Repeated usage
Continuous usage
R88M-W7K515T (7.5 kW)
Repeated usage
Continuous usage
R88M-W1
1K015T (1
1 kW)
Repeated usage
Continuous usage
R88M-W15K015T (15 kW)
Standard Models and Specifications
Chapter 2
