Operating Procedure Example: Displaying Monitor Value of Electrical Angle (Un.004)
PR02W
operation
Front panel
key operation

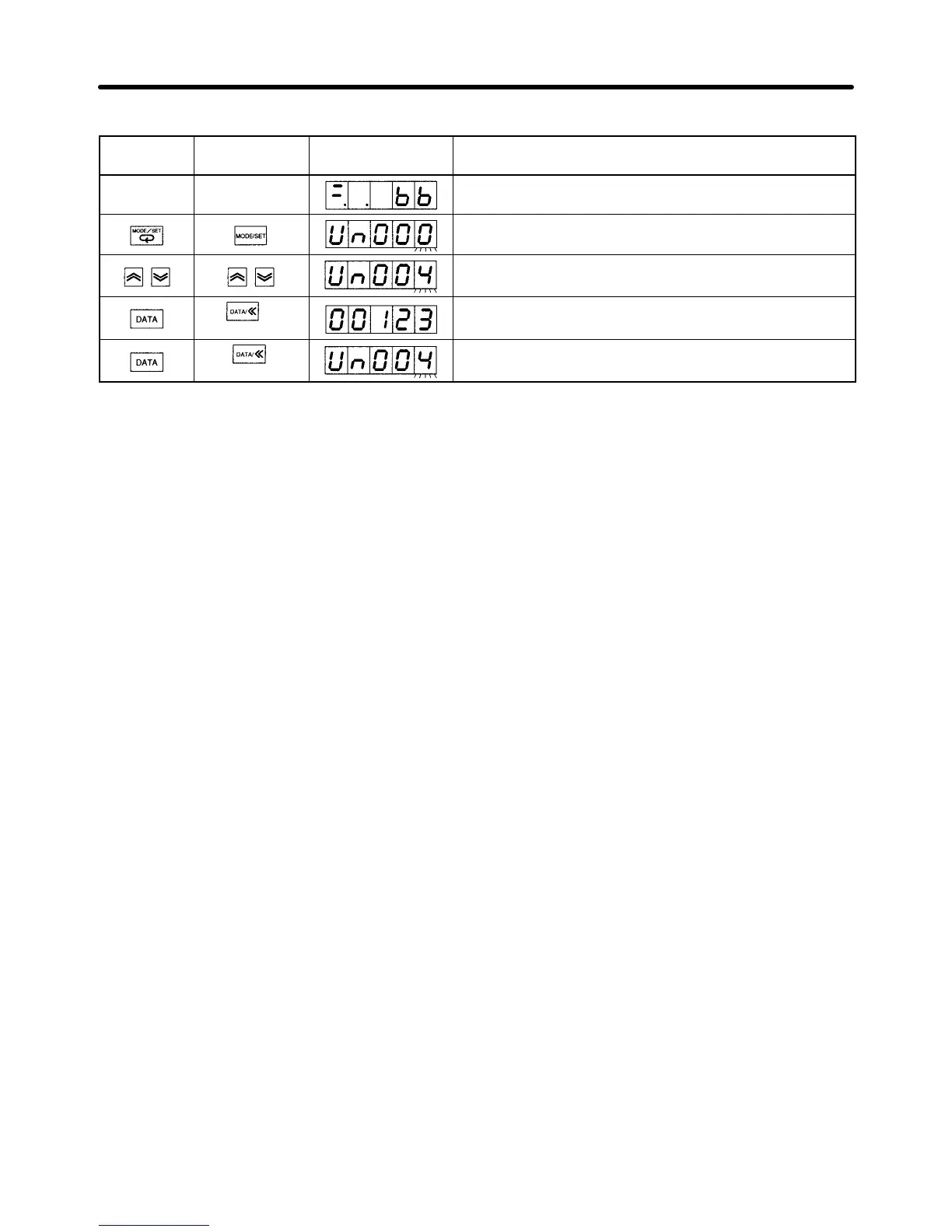

Display Explanation
(Status Display Mode)
Press the MODE SET Key to switch to Monitor Mode.
Set monitor No. Un004 using the Up or Down Key. (See
note.)
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to display monitor value for Un004 (electrical angle).
(1 s min.)
Press the DATA Key (front panel: DATA Key for 1 s min.)
to return to monitor number display.
Note Digits that can be manipulated will flash.
