S82J
S82J
17

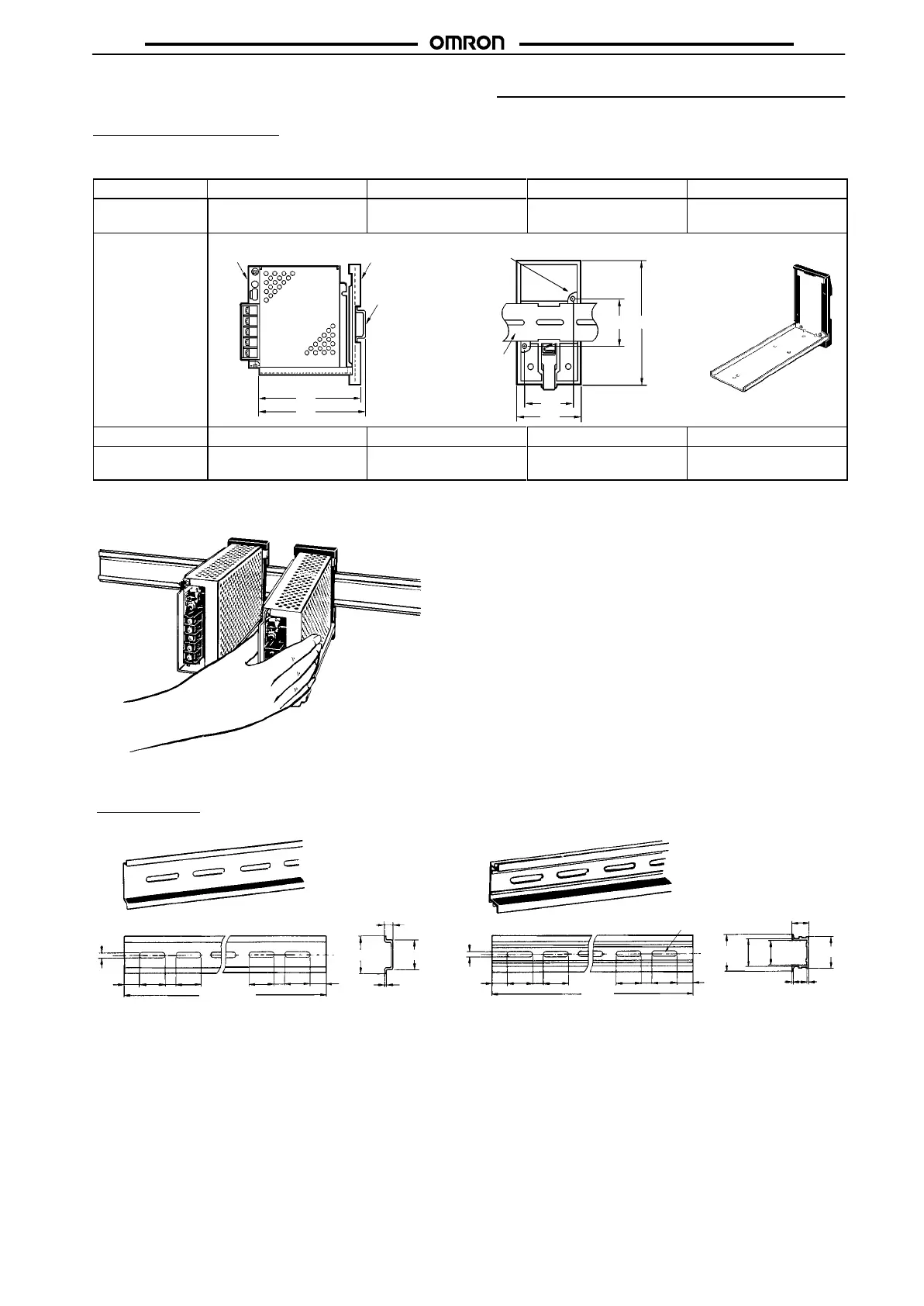

Accessories (Order Separately)
DIN Track Mounting Bracket
By
attaching the DIN T
rack Mounting Bracket to the Switching
Power Supply
, the Switching Power Supply can be mounted to a DIN-track with
ease.
Item S82Y-01N S82Y-03N S82Y-05N S82Y-10N
Applicable
supply
unit
S82J-j1jj S82J-j2jj S82J-j5jj S82J-100jjjj
S82J-15024j
Dimensions
Power Supply Bracket
PFP-100N or
PFP-100N2
L1
L2
Two, 4.5-dia holes
DIN track
58
47
47 104
Dimensions: L1 113
mm
143 mm 163 mm 185 mm
L2
(see note)
1
14.8 mm 144.8 mm 164.8 mm 186.8 mm
Note: The
values given for L2 are for when the PFP-100N Mounting T
rack is used. If the PFP-100N2 is used, added 10.5 mm
to the values
given
for L2.
4.5
15 25 25 25 25 15
10 10
1,000
35±0.3
27
24
16
29.2
1 1.5
PFP-100N2
Twelve, 25 x 4.5
elliptic holes
Mounting Track
PFP-100N/PFP-50N
4.5
15 25 25 25 25
10 10
1,000 (500)
(see note)
7.3±0.15
35±0.3
27±0.15
1
15 (5)
(see note)
Note: The
values
shown in parentheses are for the PFP-50N.
