Reference Value
Item Value Definition
Reliability (MTBF) 135,000 hours MTBF stands for Mean Time Between Failures, which is
calculated according to the probability of accidental device
failures, and indicates reliability of devices. Therefore, it does
not necessarily represent a life of the product.
Life expectancy
10-/25-/50 (5, 12 V)-/100 (5,
12, 15 V)-/150-W Models
8 yrs. Min.
The life expectancy indicates average operating hours under
the ambient temperature of 40 ° C and a load rate of 50%.
N ll thi i d t i d b th lif t f th
50 (24 V)-/100 (24 V)-/
300-/600-W Models
10 yrs. Min.
Normally this is determined by the life expectancy of the
built-in aluminum electrolytic capacitor .
Engineering Data

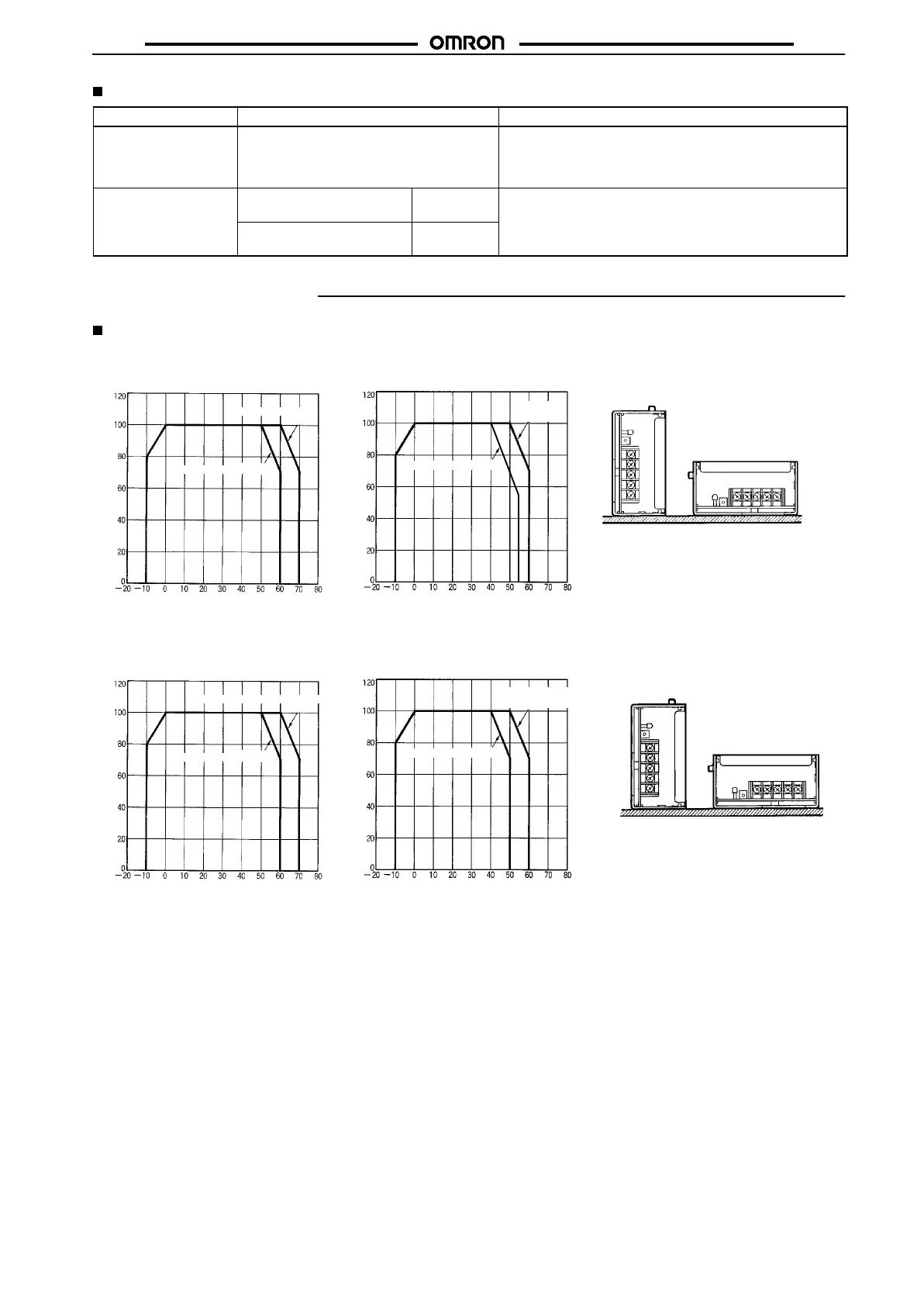

Derating Curve
10-/25-/50-/100 (24 V)-/150-W Model
Open-frame type
Load (%)
Ambient temperature ( °C)
Covered-type
Load (%)
Ambient temperature ( °C)
Standard Installation
Natural air-cooling
Forced air-cooling
Forced
air-cooling
Natural air-cooling
Note: The derating curve shown is for
standard
installation. The derating
curve depends on the mounting
direction
of the Power Supply .
100 (5, 12, 15 V)-W Model
Open-frame Type
Load (%)
Ambient temperature ( °C)
Covered Type
Load (%)
Ambient temperature ( °C)
Standard Installation
Note: The derating curve shown is for
standard
installation. The derating
curve depends on the mounting
direction
of the Power Supply .
Natural air-cooling
Forced air-cooling (1 m
3
/min)
Forced air-cooling
(1 m
3
/min)
Natural air-cooling
