S8VS
8

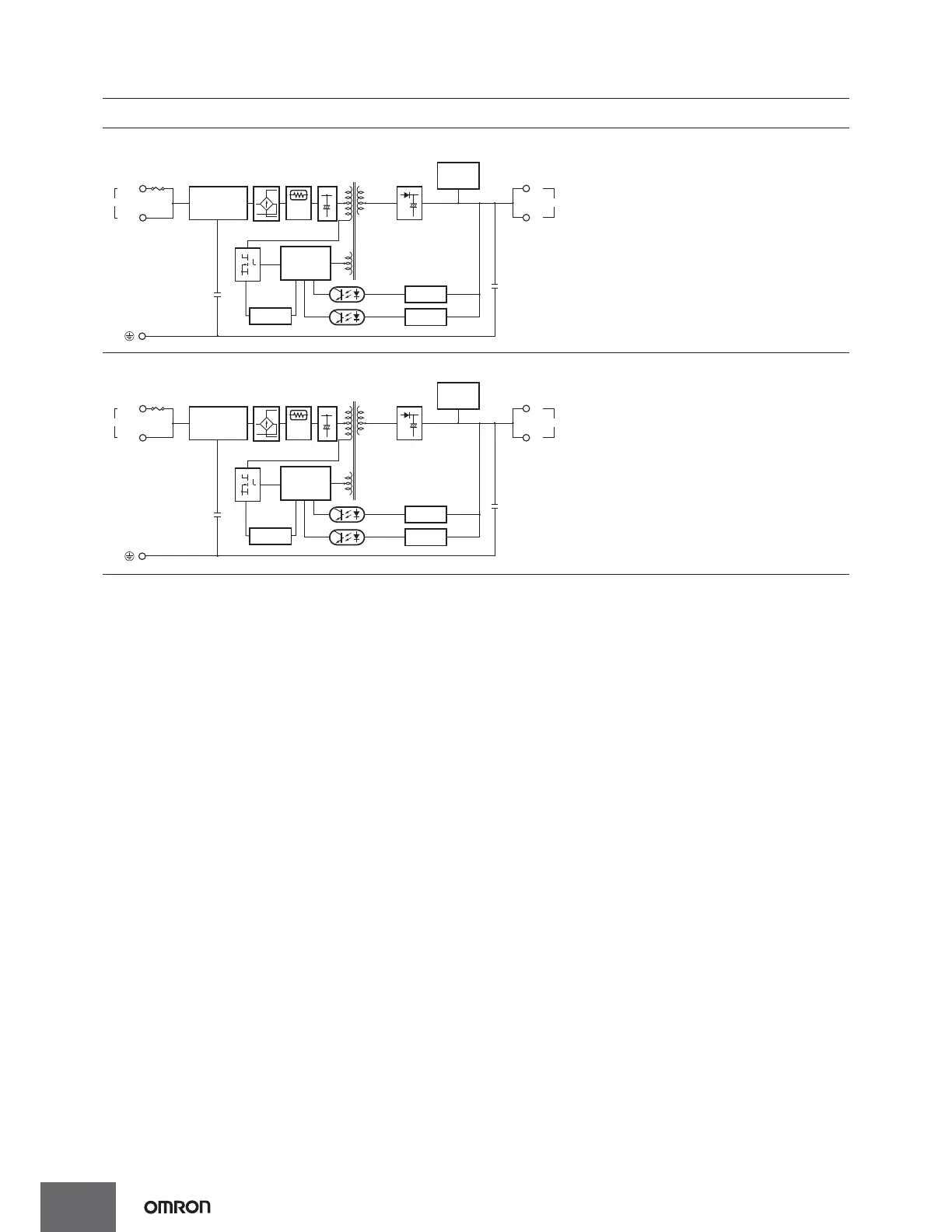

Connections
Block Diagrams
Voltage
detection circuit
Photocoupler
Rectifier/
smoothing
circuit
AC (L)
INPUT
AC (N)
Drive
control
circuit
+V
−V
DC output
Fuse:
3.15 A
Undervoltage
indicator
Overvoltage
detection circuit
Noise filter
Inrush
current
protection
Rectifier
Smoothing
circuit
Overcurrent
detection circuit
S8VS-015@@ (15 W)
Voltage
detection circuit
Photocoupler
Rectifier/
smoothing
circuit
AC (L)
INPUT
AC (N)
Drive
control
circuit
+V
−V
DC output
Fuse:
4.0 A
Undervoltage
indicator
Overvoltage
detection circuit
Noise filter
Inrush
current
protection
Rectifier
Smoothing
circuit
Overcurrent
detection circuit
S8VS-030@@ (30 W)
