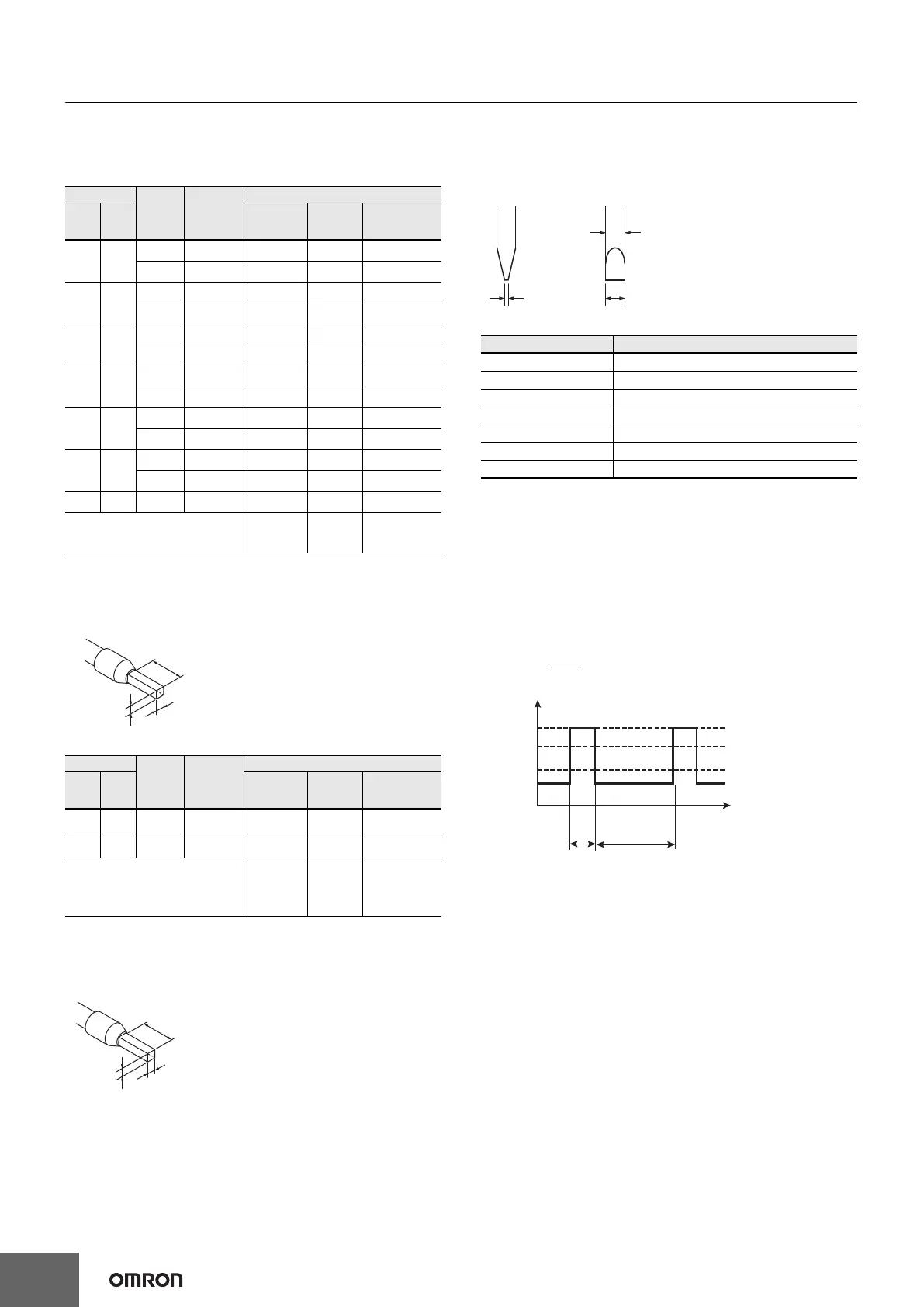

S8VK-S
20
● Recommended Ferrules and Crimping Tools
Recommended ferrules
S8VK-S03024, S06024, S12024, S24024: Input and Output Terminals
S8VK-S48024: Input Terminals
S8VK-S24024, S48024: Low-voltage detection output Terminals
Note: 1. Make sure that the outer diameter of the wire is smaller than
the inner diameter of the insulating sleeve of the
recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figure.
S8VK-S48024: Output Terminals
Note: 1. Make sure that the outer diameter of the wire is smaller than
the inner diameter of the insulating sleeve of the
recommended ferrule.
2. Make sure that the ferrule processing dimensions conform
to the following figure.
Recommended Flat-blade Screwdriver
Use a flat-blade screwdriver to connect and remove wires.
Use the following flat-blade screwdriver.
The following table shows manufacturers and models as of 2015/Dec.
Power Boost Function
The boost current is a temporary current that exceeds the rated
current.
However, it should meet the following four boost current conditions.
• Time that the boost current flows: t1 10 s
• The boost current: Ip Maximum boost current
• The average output current: Iave Rated output current
• The time ratio of the boost current flow: Duty 30%
• Do not allow a boost current to flow for more than 10 s.
Do not allow the duty to exceed 30%. These conditions may
damage the Power Supply.
• Do not allow the average current for one cycle of the boost current
to exceed the rated current. The Power Supply may be damaged.
• Derate the boost current and the average output current loads
according to the ambient operating temperature and mounting
direction.
Overcurrent Protection
• Internal parts may possibly deteriorate or be damaged if a
short-circuited or overcurrent state continues during operation.
• Internal parts may possibly deteriorate or be damaged if the Power
Supply is used for applications with frequent inrush current or
overloading at the load end. Do not use the Power Supply for such
applications.
Applicable wire Ferrule
Conductor
length
(mm)
Stripping
length
(mm)
(Ferrules used)
Recommended ferrules
(mm
2
) (AWG)
Manufactured by
Phoenix Contact
Manufactured
by Weidmuller
Manufactured by
Wago
0.25 24
8 10 AI 0,25-8 H0.25/12 FE-0.25-8N-YE
10 12 AI 0,25-10 --- ---
0.34 22
8 10 AI 0,34-8 H0.34/12 FE-0.34-8N-TQ
10 12 AI 0,34-10 --- ---
0.50 20
8 10 AI 0,5-8 H0.5/14 FE-0.5-8N-WH
10 12 AI 0,5-10 H0.5/16 FE-0.5-10N-WH
0.75 18
8 10 AI 0,75-8 H0.75/14 FE-0.75-8N-GY
10 12 AI 0,75-10 H0.75/16 FE-0.75-10N-GY
1/1.25 18/17
8 10 AI 1-8 H1.0/14 FE-1.0-8N-RD
10 12 AI 1-10 H1.0/16 FE-1.0-10N-RD
1.25/1.5
17/16
8 10 AI 1,5-8 H1.5/14 FE-1.5-8N-BK
10 12 AI 1,5-10 H1.5/16 FE-1.5-10N-BK
2.5 14 10 12 AI 2,5-10 H2.5/16DS FE-2.5-10N-BU
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6-F
CRIMPFOX10S
PZ6 roto Variocrimp4
Applicable wire Ferrule
Conductor
length
(mm)
Stripping
length
(mm)
(Ferrules used)
Recommended ferrules
(mm
2
) (AWG)
Manufactured by
Phoenix Contact
Manufactured
by Weidmuller
Manufactured by
Wago
412 12 14
AI4-12
H4.0/
20D
FE-4.0-12N-GY
610 12 16
AI6-12 H6.0/20
FE-6.0-12N-Ye
*
Recommended crimp tool
CRIMPFOX6
CRIMPFOX6T-F
CRIMPFOX10S
PZ6 roto
Variocrimp4
* Use the
Variocrim
p16.
8 to 10 mm
2.6 mm max.
2.8 mm max.
12 mm
4 mm max.
4 mm max.
Model Manufacturer
XW4Z-00B Omron
ESD0.40X2.5 Wera
SZF 0.4X2.5 Phoenix Contact
0.4X2.5X75 302 Wiha
AEF.2.5X75 Facom
210-719 Wago*1
*1. Insulated types of Flat-blade Screw driver, strongly recommended to
prevent from an electric shock.
SDI 0.4X2.5X75 Weidmuller
*1
Side
0.4 mm
2.5 mm dia.
2.5 mm
Front
Duty=
t1 + t2
t1
× 100 [%] ≤ 30%
[A]
Ip: Boost current
Rated current
lave: Average current
t2
t1
output current
