Omron S8VS Series User Manual

S8VS
S8VS-18024-F (180 W)
S8VS-18024A@-F (180 W)

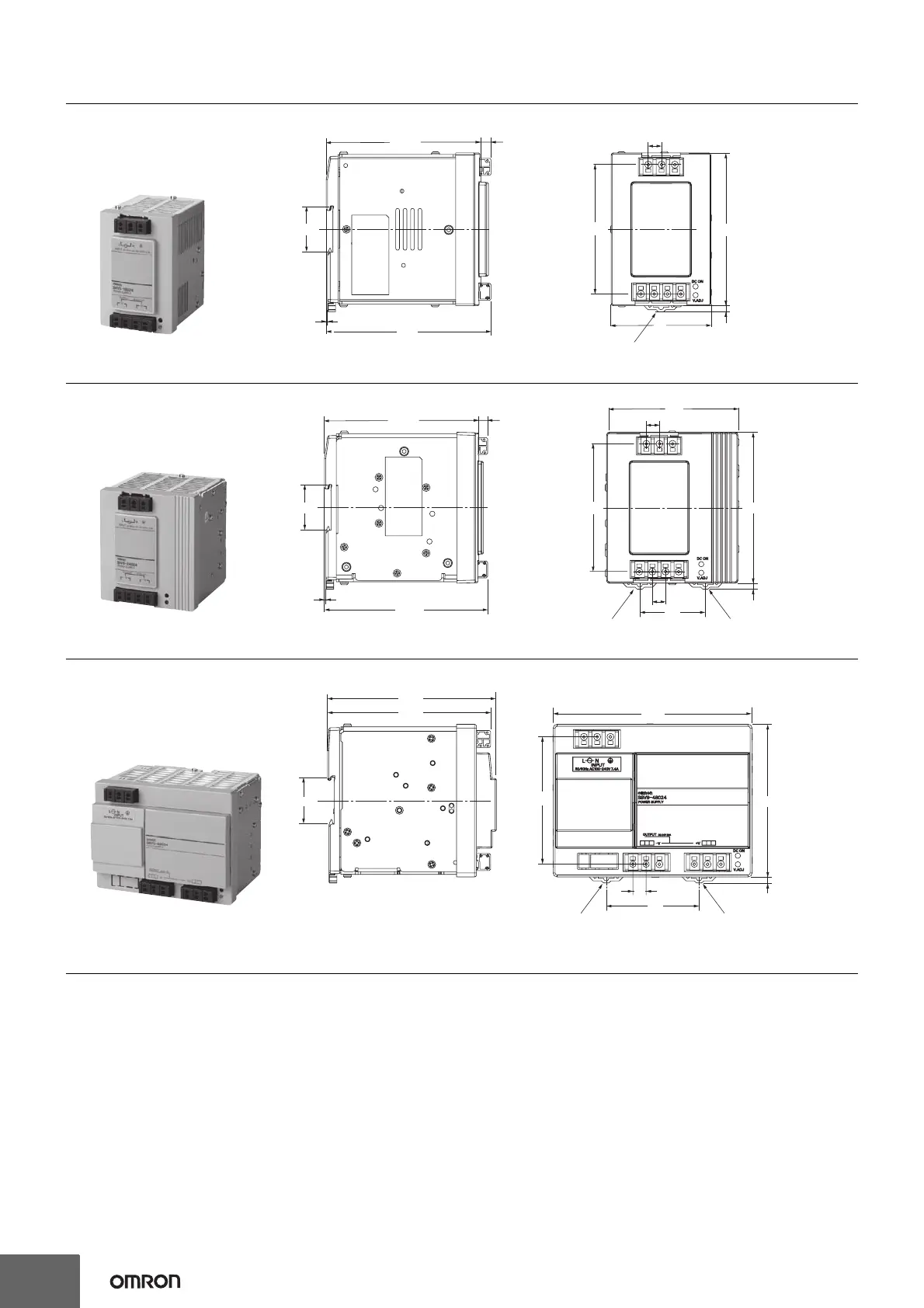

116.3
7.7
10
S8VS-18024B@-F (180 W)
S8VS-18024BE-F (180 W)
35.4
97.3 115
1
124
75
4.5 (Sliding: 15 max.)
Rail stopper
Note: The illustration shows the S8VS-18024-F model.
S8VS-24024-F (240 W)
6.7
100
S8VS-24024A@-F (240 W)
117.6
10
S8VS-24024B@-F (240 W)
S8VS-24024BE-F (240 W)
35.4
97.3 115
1
10
124.3
4.5 (Sliding: 15 max.)
50
Rail stopper Rail stopper
Note: The illustration shows the S8VS-24024-F model.
S8VS-48024-F (480 W)
S8VS-48024A-F (480 W)
127.2
S8VS-48024B-F (480 W)
122.9
150
35.4
96.3
115
10
4.5 (Sliding: 15 max.)
70
Rail stopper
Rail stopper
Note: The illustration shows the S8VS-48024-F model.
28

Omron S8VS Series Specifications

General

Output Power	60 W, 120 W, 240 W
Mounting	DIN Rail Mounting
Protection	Overcurrent protection, Overvoltage protection
Safety Standards	UL508, EN50178
Dimensions	22.5 x 90 x 100 mm
Output Voltage	24 VDC
