Omron S8VS Series User Manual

S8VS
Connections

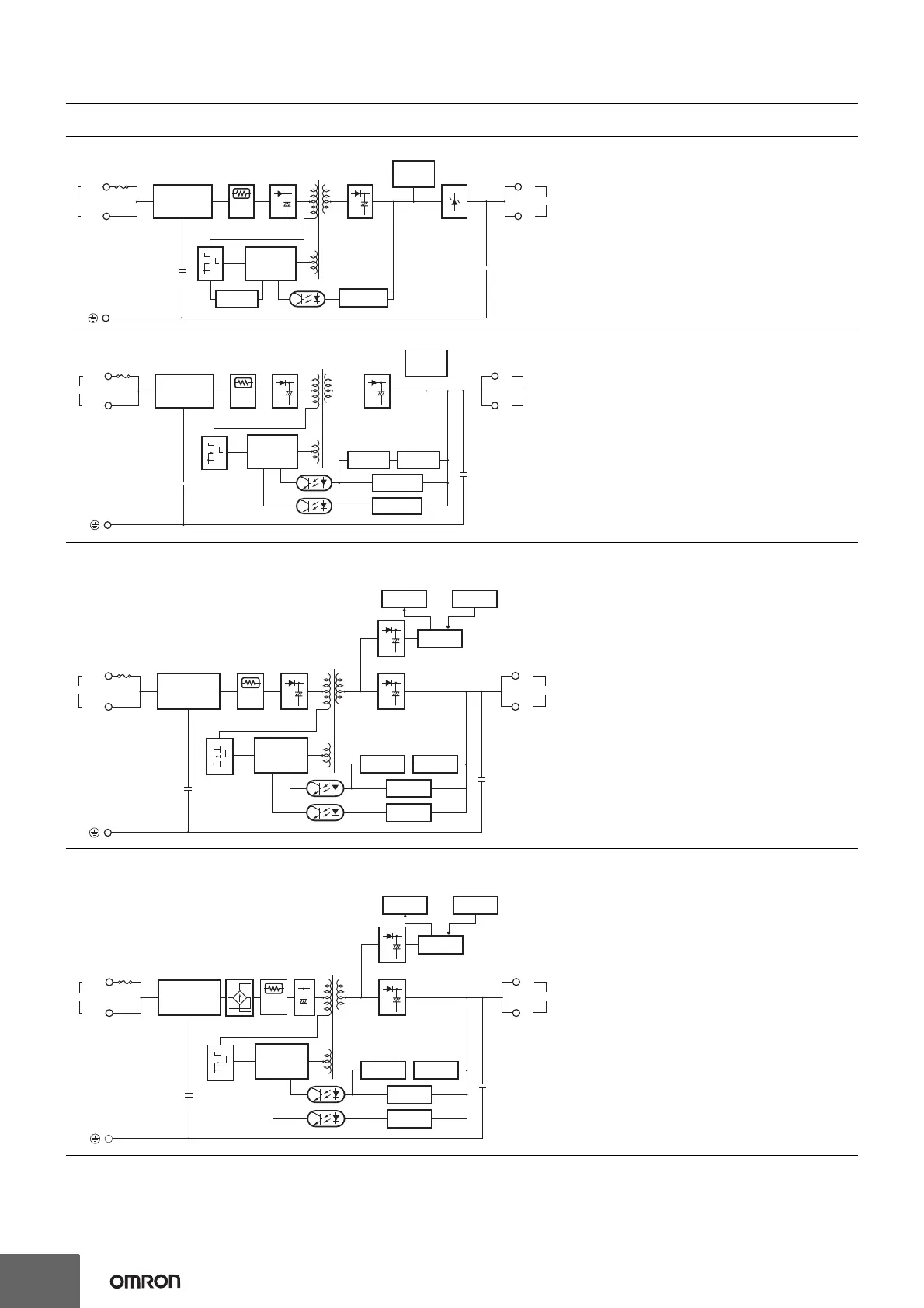

Block Diagrams
Noise filter
AC (L)
INPUT
AC (N)
+V
−V
DC OUTPUT
Fuse
2.5 A
Voltage
detection circuit
Photocoupler
Drive control
circuit
Overcurrent
detection circuit
Inrush current
protection
circuit
Rectifier/
smoothing
circuit
Rectifier/
smoothing
circuit
Undervolt-
age
indicator
Overvoltage
protection
S8VS-015@@ (15 W)
S8VS-030@@ (30 W)
Voltage
detection circuit
Photocoupler
Rectifier/smoothing circuit
Noise filter
AC (L)
AC (N)
Drive control
circuit
Fuse 3.15 A
Overcurrent
Current detection
age
circuit
circuit
Overvoltage
detection circuit
Inrush current
protection
Rectifier/
circuit
smoothing
circuit
Undervolt-
indicator
+V
INPUT
DC OUTPUT
−V
S8VS-06024A (60 W)
S8VS-06024B (60 W)
AC (L)
INPUT
Noise filter
AC (N)
Voltage
detection circuit
Photocoupler
Rectifier/smoothing circuit
Fuse
Rectifier/smoothing circuit
Inrush current
Rectifier/
smoothing
protection
circuit
Drive control
circuit
3.15 A
Overcurrent
Current detection
circuit
circuit
Arithmetic
operation circuit
Display circuit
Switch
Overvoltage
detection circuit
circuit
+V
DC OUTPUT
−V
S8VS-06024A-F (60 W)
S8VS-06024B-F (60 W)
AC (L)
INPUT
Noise filter
AC (N)
Voltage
detection circuit
Photocoupler
Rectifier/smoothing circuit
Fuse
Rectifier/smoothing circuit
Inrush
Rectifier
Rectifier/
smoothing
protection
circuit
Drive control
circuit
6.3 A
Overcurrent
Current detection
circuit
circuit
Arithmetic
operation circuit
Display circuit
Switch
Overvoltage
detection circuit
current
circuit
+V
DC OUTPUT
−V
8

Omron S8VS Series Specifications

General

Output Power	60 W, 120 W, 240 W
Mounting	DIN Rail Mounting
Protection	Overcurrent protection, Overvoltage protection
Safety Standards	UL508, EN50178
Dimensions	22.5 x 90 x 100 mm
Output Voltage	24 VDC
