STC-HD203DV / STC-HD203DV-CS / STC-HD203SDI / STC-HD203SDI-CS
Product Specifications and Users Guide
74/78
4) PATTERNS

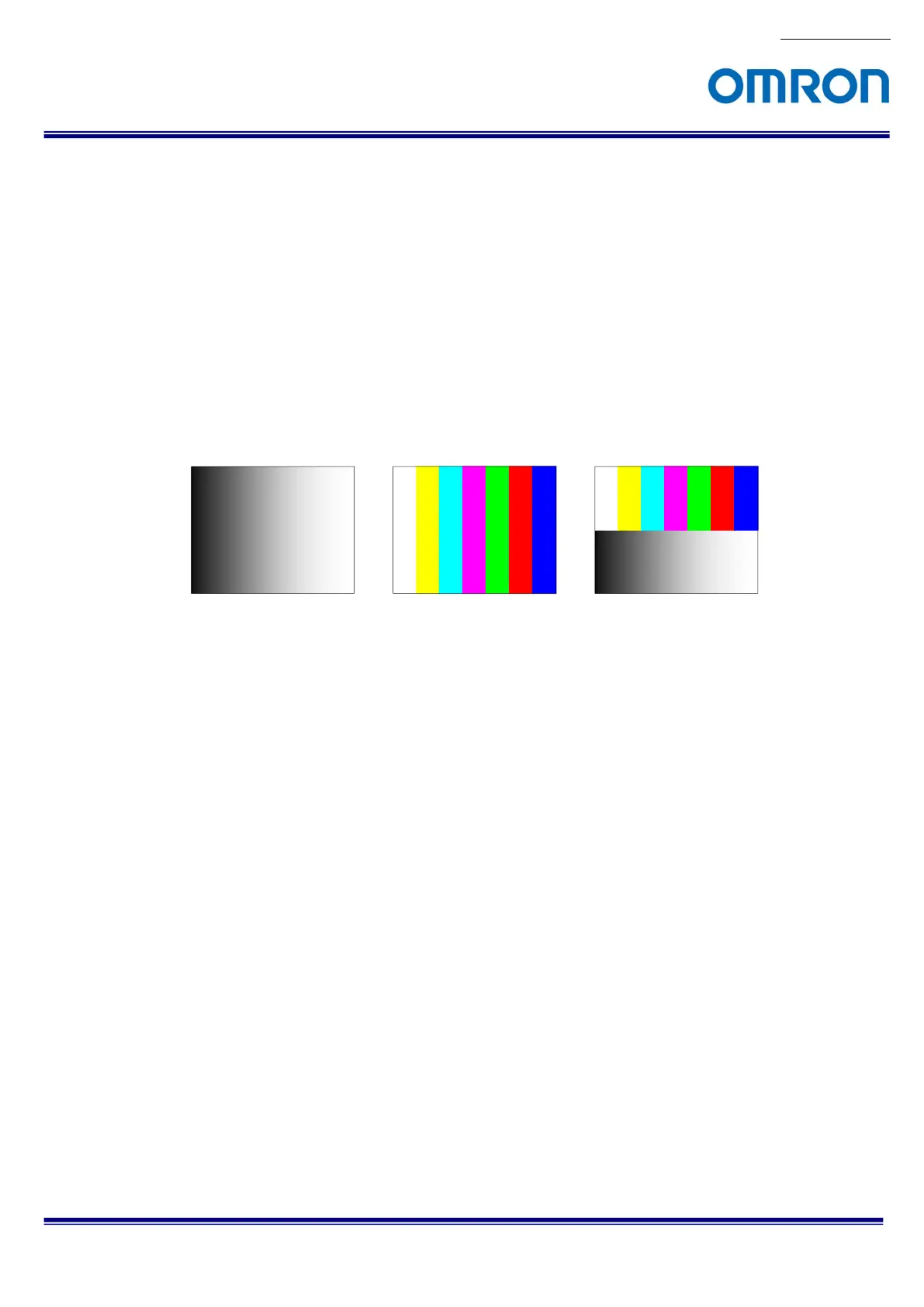

Selects the output signal from below four output signals.
a) OFF
The video is output from the camera.
b) GRAY
The gray scale test pattern is output from the camera.
c) COLOR
The color test pattern is output from the camera.
d) GRAY+COLOR
The color pattern (Top) + gray scale (Bottom) test pattern is output from the camera.
5) IMAGE OUTPUT
Selects the flip image setting for the video output from below four flip modes.
This setting does NOT apply for the test pattern outputs.
a) STANDARD
The normal image (no-flip).
b) INVERSION
The horizontal flip image.
c) V INVERSION
The vertical flip image.
d) HV INVERSION
The horizontal and the vertical flip (180 deg. rotate) image.
