H 3G3FV-B411K-CUE/-B416K-CUE
3G3HV-B411K-CUE/-B416K-CUE

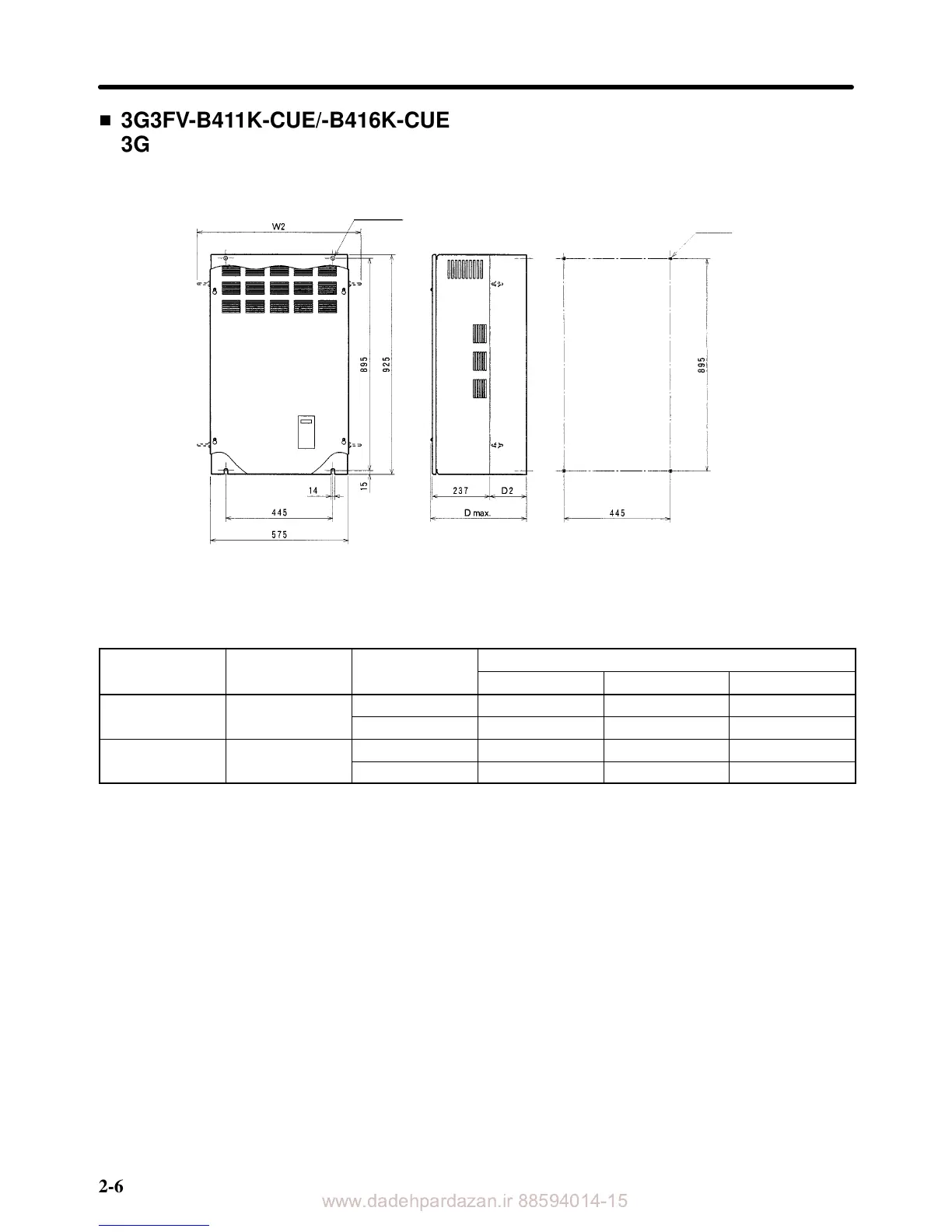

D External Dimensions D Mounting Dimensions
Two, 14 dia.
Four, M12
Series Voltage class Model
Dimensions (mm)
3G3FV-/3G3HV-
D D2 W2
3G3FV 400-V
B411K-CUE 375 130 695
B416K-CUE 400 158 695
3G3HV 400-V
B411K-CUE 375 130 695
B416K-CUE 400 158 695
Installation Chapter 2
