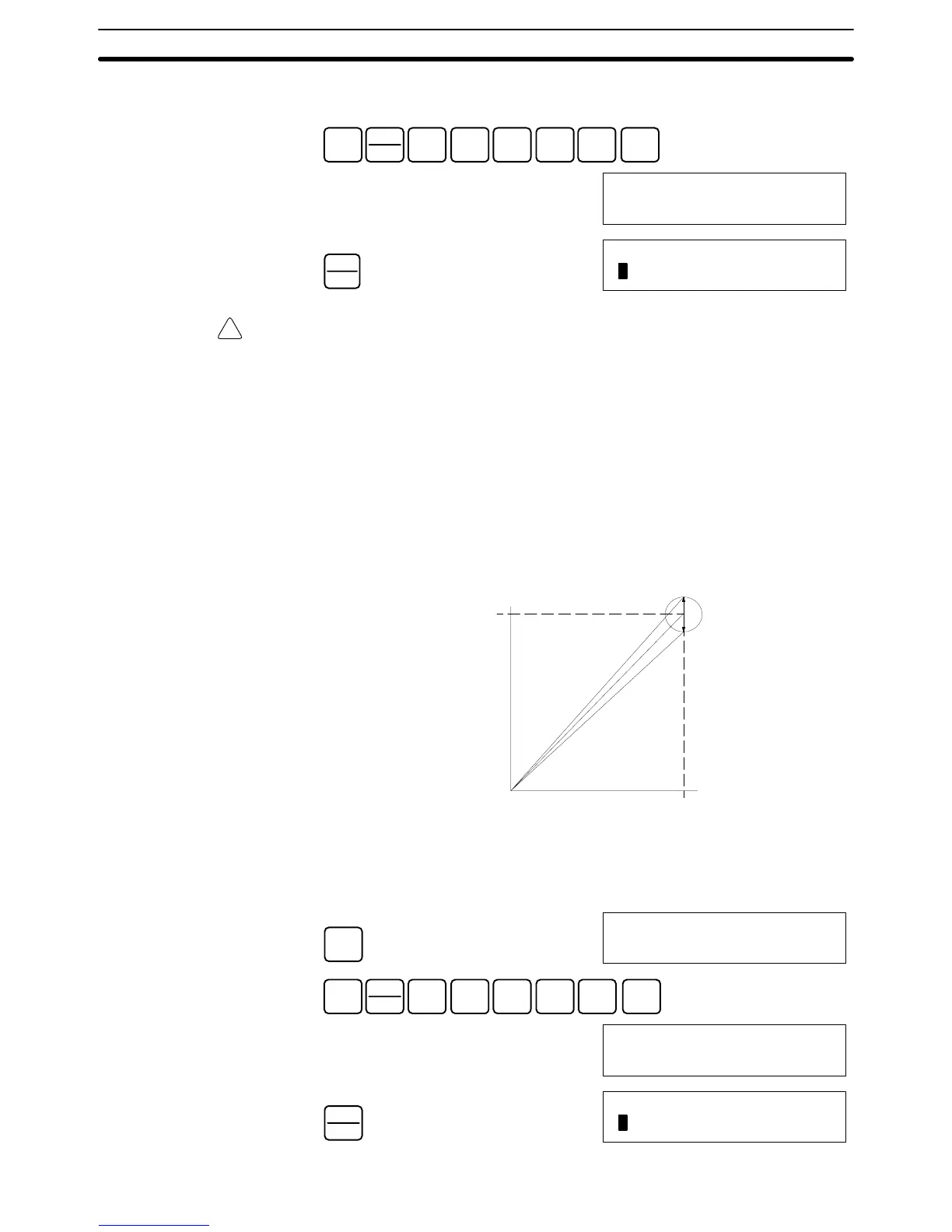

3-6SectionOffset and Gain Adjustment
58
6. To finish the offset adjustment, turn OFF bit 00 (the Offset Bit) of IR word
n+1.
SHIFT
CONT
#
1
B
0
A
1
B
0
A
0
A
MONTR
10100 10104
^ ON ^OFF
REC
RESET
10100 10104
OFF ^OFF
Caution Do not turn OFF the power supply or restart the Unit while the Set Bit is ON (data
is being written to the EEPROM). Otherwise, illegal data may be written in the
Unit’s EEPROM and “Special I/O Unit Errors” may occur when the power supply
is turned ON or when the Unit is restarted, causing a malfunction.
When making adjustments, be sure to perform both the offset adjustment and
gain adjustment.
Note The EEPROM can be overwritten 50,000 times.
The procedure for adjusting the analog output gain is explained below. As shown
in the following diagram, the set value is adjusted so that the analog output is
maximized (to 10V/5V/20mA).
10 V
0
0FA0
Output signal range:
0 to 10 V
Gain adjustment output range
The following example uses output number 1 adjustment for illustration. (The
unit number is 0.)
1, 2, 3... 1. Turn ON bit 01 (the Gain Bit) of IR word n+1. (Hold the ON status.)
CLR
00000
SHIFT
CONT
#
1
B
0
A
1
B
0
A
1
B
MONTR
10101
^OFF
PLAY
SET
10101
ON
Gain Adjustment
To Next Page
