19
Input points 2
K (CA)/J (IC) selector
Temperature specification selector, with pins 3
and 4 preset to the OFF position at time of de-
livery. Operation based on temperature sensor
conforming to type K (CA) (0° through 400°C)

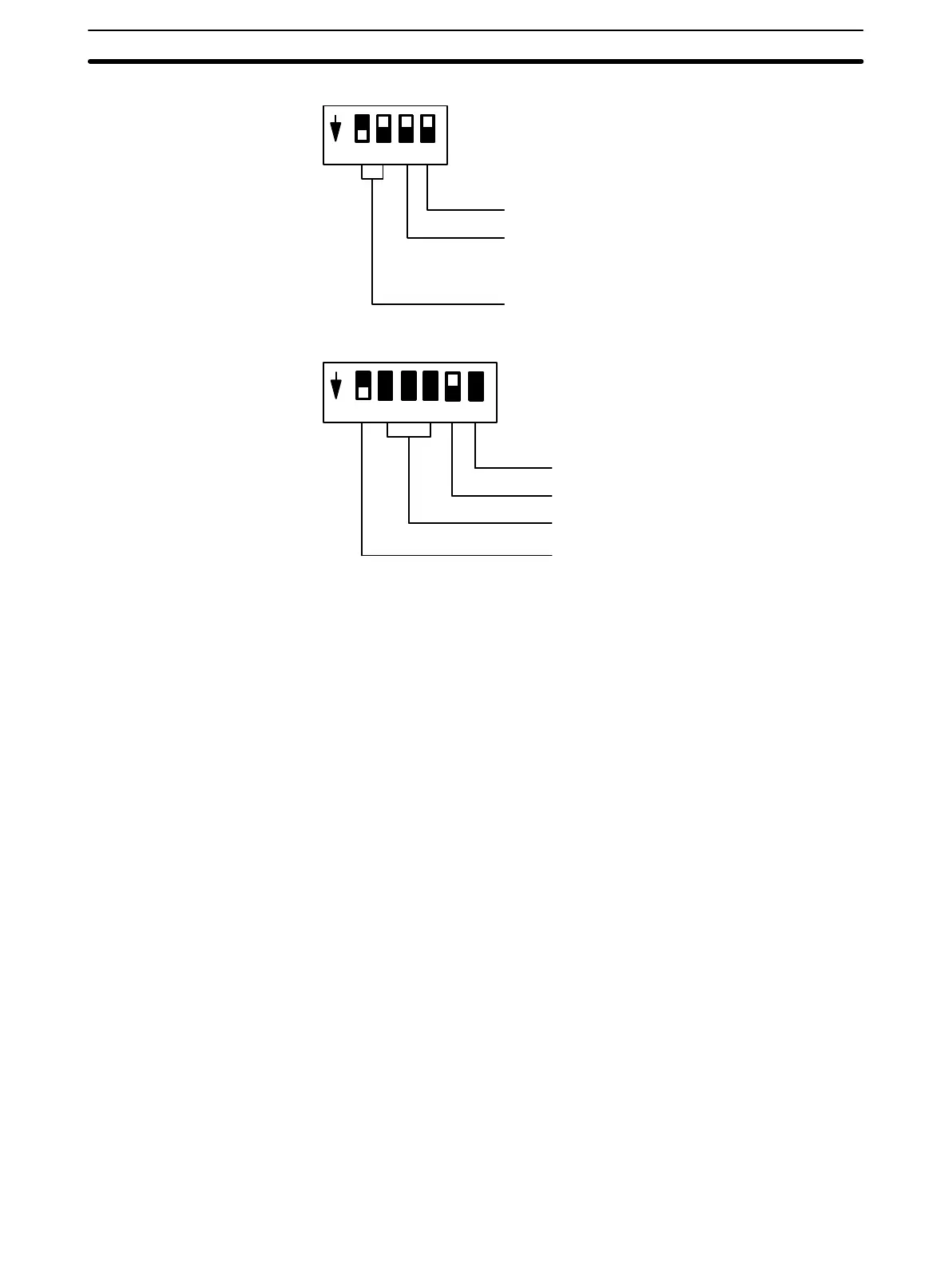

C200H-TS001 DIP Switch Setting
1234ON
1234
ON
128-point Dynamic output mode (turn ON)
Negative logic output (set to OFF)
Setting is irrelevant
56
Setting is irrelevant
C200H-OD215 DIP Switch Setting
Temperature Data Display Section 4-2
