18
C200H-TS001
OFF: Thermocouple K (CA).
ON: Temperature specification selector.

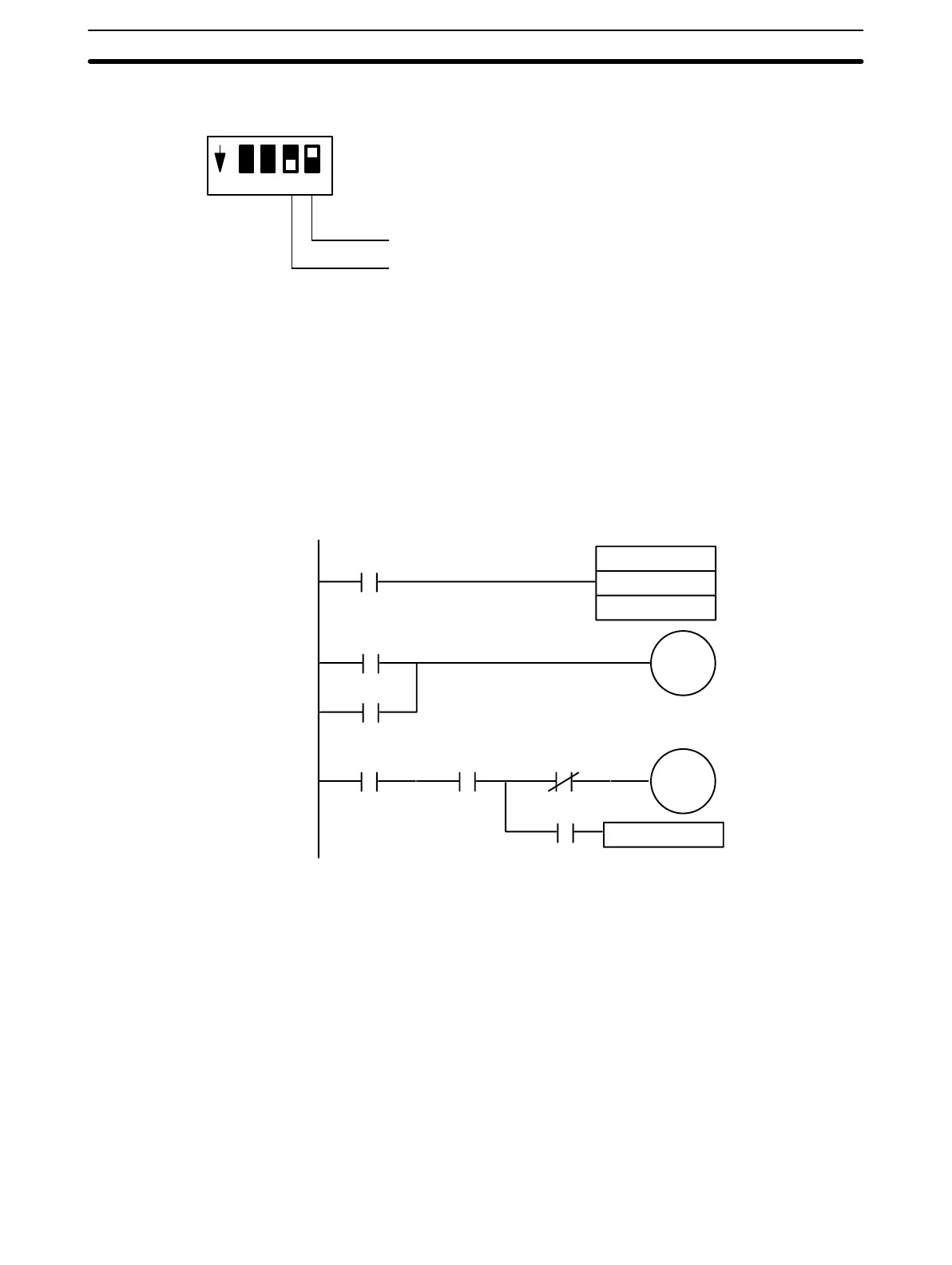

DIP Switch Setting
1234ON
Set the temperature specification code 07 (word data #0700) for K (CA), 0°
through 800°C to word 100. The specified data (code 07) is transferred to
word 100.
Unit 0 restart flag Turns ON the restart flag (AR 0100 for unit 0) during RUN and after 1 scan
when (25315) or starting input (0000) is ON, then resets the Unit.
Confirms that the signal setting on standby (10506) is ON. Provided the
alarm setting error flag (10500) is OFF, turns the temperature specification
setting flag (10015) ON, and executes the setting. After the setting, the signal
setting on standby turns OFF and the temperature specification setting pro-
cess is ended.
25313
(Always ON)
25315 (1 scan ON)
0000
25313
10506
10500
10500
10015
AR
0100
MOV (21)
#0700
100
(Always ON) (Setting on
standby)
FAL (06) 01
(Setting error)
C200H-TS101 The setting switch on the back panel (pin 4) is not used. Otherwise, program-
ming and operating functions follow the pattern described for the C200H-
TS001.
Note Whenever setting the temperature specification code, be sure to turn ON DIP
switch pin 3 (temperature specification selector) on the back panel. If the
switch is OFF, the setting is invalid. Before setting the temperature specifica-
tion, be sure the setting standby flag (10506) is ON and the setting error flag
(10500) is OFF, then turn the temperature specification setting flag (10015)
ON.
4-2 Temperature Data Display
The following example describes the display of temperature data when a Dis-
play Unit is connected to the Transistor Output Unit C200H-OD215. The
C200H-OD215 is set as unit 2 and the C200H-TS001 is set as unit 0.
Temperature specification
setting flag (sets code to 07
when this flag rises)
Temperature Data Display Section 4-2
To Next Page
