3Z4L Laser Micrometer Protocol Appendix N
Delimiter Control Code Setting
3Z4L-4000 Series

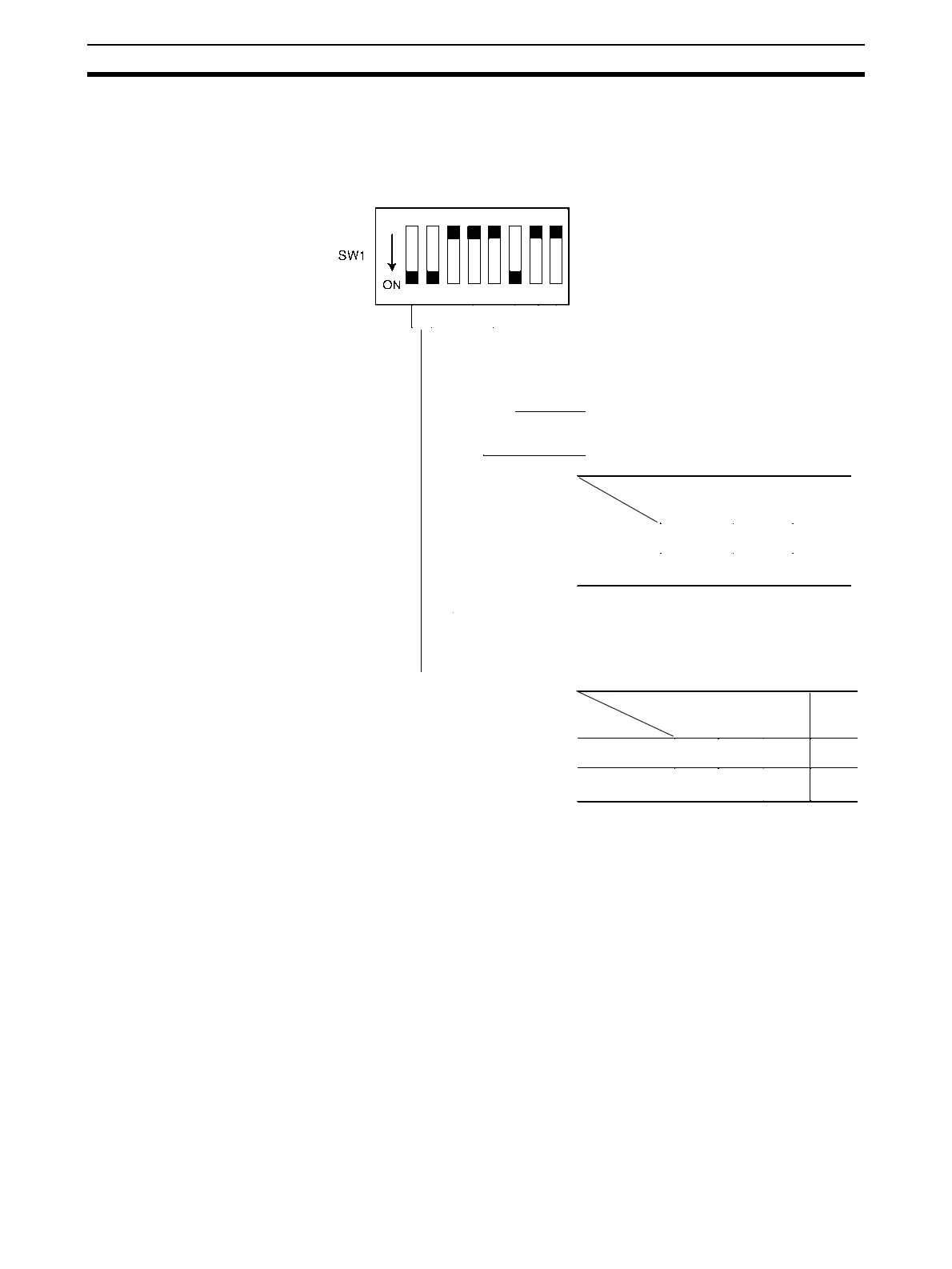

The delimiter control codes must be set on DIP switch SW1 for the 3Z4L-4000 Series. Turn off pins 4 and 5, set
the delimiter codes to CR+LF, and set the delimiter code control setting in the sequence to CR+LF. See the set-
ting for CR+LF in the following diagram.
Turn OFF
Turn OFF (to use a general-purpose interface)
Turn ON (to use a general-purpose interface)
Delimiter Setting
Delimiter
Pin
Pin 4
Pin 5
Handshaking
ON: Control (recognize DRT input)
OFF: 3-wire method (non-protocol)
Baud Rate
Baud rate
Pin
Pin 1
Pin 2
OFF OFF
OFF
ON
ONOFF
CR+LF
CR
LF
OFF
OFF
OFF
OFFON
ON
ON
ON
1200 2400 4800 9600
1 2 3 4 5 6 7 8
To Next Page
