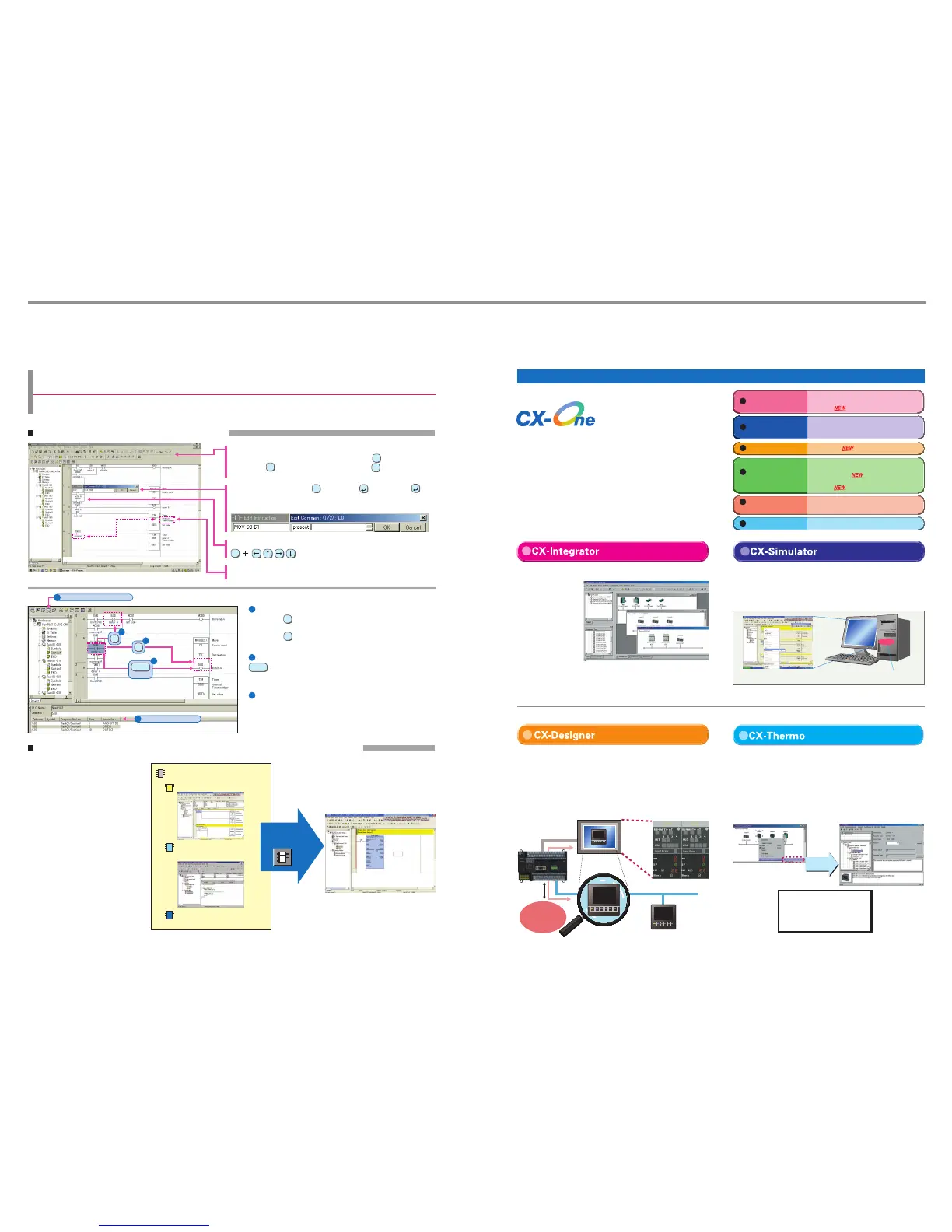

Shortcut keys can be easily checked using the ladder key guide.
Programming is simplified by key inputs, such as the Key for an NC input
(contact), the Key for an OUT instruction, and the Key for special
instructions.
Cross-reference information can be displayed for the input or output
bit at the cursor to show where the address of the input or output bit is
used in the program. Just click a cross-reference to jump to that
location in the program.
Key inputs are as easy as this: Key, address, Key, comment, Key.
The CX-Programmer automatically goes into character input mode when it is
time to enter a comment. Special instructions can be input as follows:
Comments can be added for timer and counter instructions through timer
and counter input bits.
C
C
Pressing the Space Bar with the cursor at an input bit jumps to
the output bit with the same address. Pressing the Space Bar with the
cursor at an output bit jumps to the input bit with the same address.
Pressing the Key (Next) jumps to the next input or output bit
with the same address.
Pressing the Key (Back) jumps back to the previous input or
output bit with the same address.
O
I
Simple key inputs are also available to connect lines.
C
N
B
Function Block
Function
Block called.
Paste the Function Block into
a Ladder Program.
Programmed as a ladder diagram.
Consecutive Address Searches
Programmed in ST Language.
Standard text can be entered into
function blocks.
FB Library
(provided with CX-Programmer)
Integrating OMRON PLCs and Component Peripheral Devices.
1
Cross-reference Popups
3
Cross Reference Pop-up Icon
3
Cross-reference Pop-up
3
Trace Searches
2
B
1
N
1
Space
2
1
FA Integrated Tool Package
The CX-One is an FA Integrated Tool Package for
connecting, setting, and programming OMRON
components including PLCs. CP1H programming and
settings can be done with just the CX-Programmer
alone, but CX-One is packaged with tools for setting and
programming NS-series PTs, Temperature Controllers,
and many other components. Using CX-One together
with the CP1H makes programming and setup easy,
shortening the total lead time required for starting up
machines and equipment.
CX-One
Configuration
Component Software
PLC-based Process
Control Software
Motion Controller
Software
CX-Process Tool
NS-series Face Plate Auto-Builder
CX-Thermo
CX-Motion
CX-Motion-NCF
CX-Motion-MCH
CX-Position
CX-Drive
Network Software
1
HMI Software
3
PLC Software
2
4
5
6
CX-Designer
CX-Programmer
CX-Simulator
SwitchBox
CX-Integrator
CX-Protocol
CX-FLnet
CX-Programmer
Programs using function blocks and ST
language can be created by reading
function blocks into ordinary ladder
programs.
Advanced Settings Can Be Made with No Need for a Manual,
Not Only for the PLC but Even for Special I/O Unit and
CPU Bus Unit Parameters and FA Networks.
Settings and communications for devices such as other
PLCs, NS-series
PTs, and
Temperature
Controllers that
are connected to
a PLC can all be
executed
together from the
CX-One CX-
Integrator
connected to the
PLC.
The CX-Designer can be started from the CX-
Integrator's NT Link Window. It can be used to design
screens such as, for example, setting screens for
Temperature Controllers. In addition, the Smart Active
Parts (SAP) library is provided with the CX-Designer to
enable easily creating setting screens for Temperature
Components or other components.
The Support Software for Temperature Controllers (CX-
Thermo) can be started from the CX-Integrator's Serial
Communications Window.
Serial (CompoWay/F)
Temperature
Controller
Exchanging
data with
PLC
NS-series PT
Smart Active Parts (SAP)
NT Link
Example:
The Temperature
Controller is
visible.
Parameters can be created,
edited, and transferred at the
computer. The time required to
make settings can be reduced
when setting the same
parameters in multiple devices.
Configured with an NS-series PT
Configured with a Temperature Controller
Improved Functional Connectivity with HMI Design Software and Integration of Component Software
Easy-to-use Programming Software.
Programming with Function Blocks (Ladder Diagrams/ST Language) Is Also Standard.
Easy Operation Simplifies Programming and Debugging.
Virtual CPU Unit
The CX-Simulator can be used for debugging with the CX-Programmer
in online status, even without the PLC connected.
CX-Thermo
started.
The CX-Thermo Software can
be started from a device in
the CX-Integrator's serial
communications
(CompoWay/F) network.
Handle Function Blocks (FB) and Structured Text (ST) Language with Only the CX-Programmer.
Online CP1H CPU Unit operations, such as program
monitoring, I/O memory manipulation, PV monitoring,
forced setting/resetting memory bits, differential
monitoring, data tracing, and online editing, can be
executed without the actual PLC.
(Ver. 6.1 or Higher)
Support Software for the CP1H
CX-One: Ver. 1.1 or higher
Purchased Individually
CX-Programmer: Ver. 6.1 or higher
CX-Simulator: Ver. 1.6 or higher
CX-Protocol: Ver. 1.6.0.4 or higher
To Next Page
