Omron V7 User Manual

18
Frequency inverters
Varispeed V7 IP65
200 V 400 V
ALine filters *
* V7 IP65 types are built-in filter inverters.
Specifications Model
1x200 V 0.55 Kw 3.0 A CIMR-V7TZB0P405
1.1 Kw 5.0 A CIMR-V7TZB0P705
1.5 Kw 8.0 A CIMR-V7TZB1P505
2.2 Kw 11.0 A CIMR-V7TZB2P205
Specifications Model
3x400 V 0.55 Kw 1.8 A CIMR-V7TZ40P405
1.1 Kw 3.4 A CIMR-V7TZ40P705
1.5 Kw 4.8 A CIMR-V7TZ41P505
2.2 Kw 5.5 A CIMR-V7TZ42P205
3.0 Kw 7.2 A CIMR-V7TZ43P005
4.0 Kw 9.2 A CIMR-V7TZ44P005
Inverter Line filter
Voltage Model CIMR-V7AZ Schaffner Rasmi Rated current (A) Weight (kg)
3-Phase 200 VAC
20P1 / 20P2 / 20P4 / 20P7 3G3MV-PFI2010-SE 3G3MV-PFI2010-E 10 0.8
21P5 / 22P2 3G3MV-PFI2020-SE 3G3MV-PFI2020-E 20 1.0
24P0 3G3MV-PFI2030-SE 3G3MV-PFI2030-E 30 1.1
25P5 / 27P5 - 3G3MV-PFI2050-E 50 2.3
Single-Phase 200 VAC
B0P1 / B0P2 / B0P4 3G3MV-PFI1010-SE 3G3MV-PFI1010-E 10 0.6
B0P7 / B1P5 3G3MV-PFI1020-SE 3G3MV-PFI1020-E 20 1.0
B2P2 3G3MV-PFI1030-SE 3G3MV-PFI1030-E 30 1.1
B4P0 3G3MV-PFI1040-SE 3G3MV-PFI1040-E 40 1.2
3-Phase 400 VAC
40P2 / 40P4 3G3MV-PFI3005-SE 3G3MV-PFI3005-E 5 1.0
40P7 / 41P5 / 42P2 3G3MV-PFI3010-SE 3G3MV-PFI3010-E 10 1.0
40P4 3G3MV-PFI3020-SE 3G3MV-PFI3020-E 15 1.1
45P5 / 47P5 3G3MV-PFI3030-SE 3G3MV-PFI3030-E 30 2.3
Varispeed V7
19

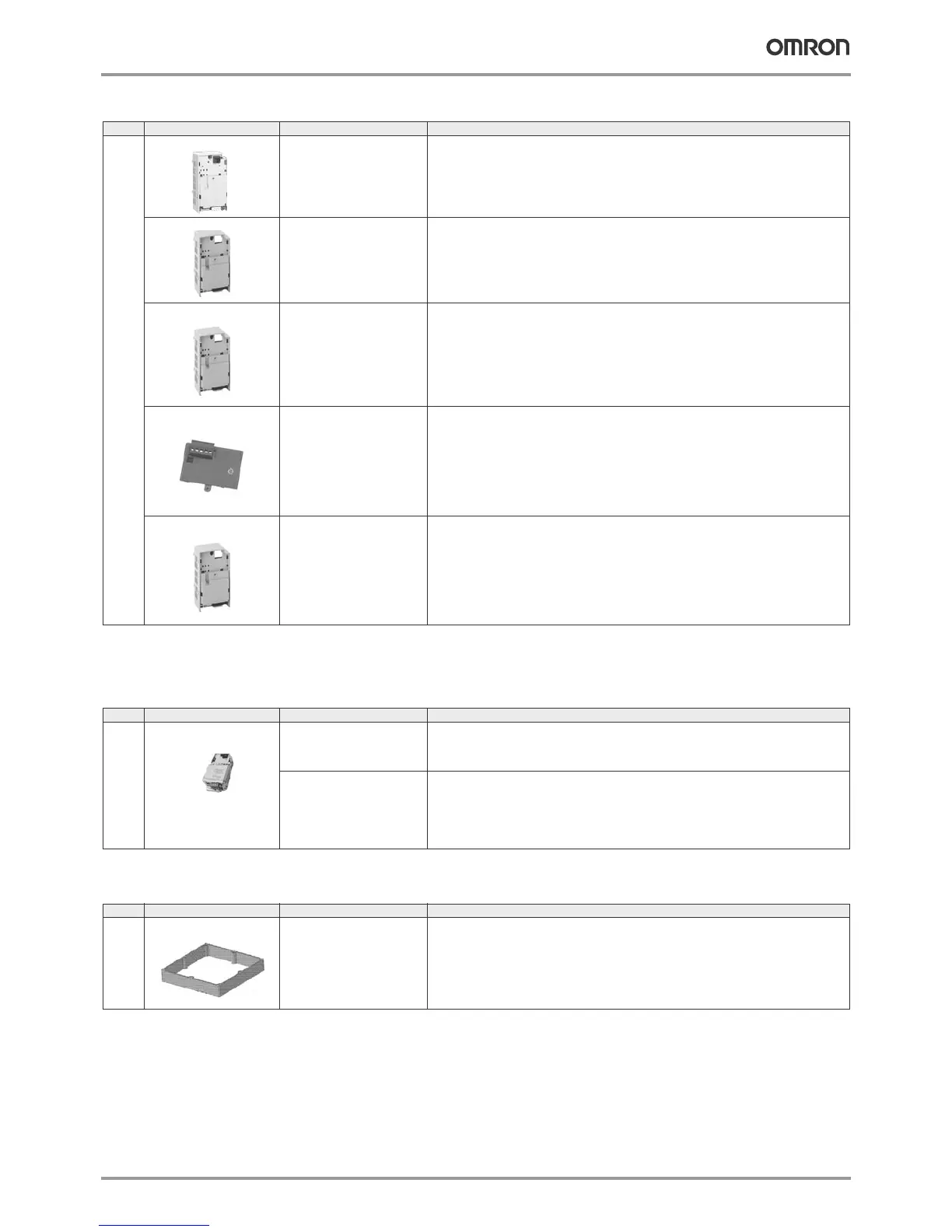

B Communication cards
C PLC option card
D Option frame accessory for V7 IP65
Type Model
1
1. Option frame accessory is needed for V7 IP65 types when communications option units are used.
Description Function
Communication option board
3G3MV-PDRT2
DeviceNet option card
2
2. For V7 IP65 types with DeviceNet communication, SI-N1/V7 should be used.
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through DeviceNet communication with the
host controller.
SI-P1/V7
PROFIBUS-DP option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through PROFIBUS-DP communication
with the host controller.
SI-S1/V7
Can open option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through CANopen communication with the
host controller.
3G3MV-PCORT21
Can open gateway
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through CANopen communication with the
host controller.
SI-T1/V7
MECHATROLINK-II
option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through MECHATROLINK-II communica-
tion with the host controller.
• High speed motion bus.
• Host controller: TrajeXia, MCH or MP series.
3
3. Please refer to TrajeXia, MCH or MP series section for host controller technical information.
Type Model
1
1. Option frame accessory is needed on V7 IP65 types when PLC option unit is used.
Description Function
PLC option
3G3MV-P10CDT-E
3G3MV-P10CDT3-E
PLC option
• Full PLC featrues, wireless installation and seamless access to the inverter parameters and
analogue/digital inputs and outputs.
• Standard OMRON tools can be used for programming
• Calendar / clock
PLC option with
RS 422/485
• Same features as standard models with RS 422/485 support.
Type Model Description Function
Option frame
V7TZ-FR1
Option frame
• Frame accessory is needed when communication option unit or PLC option unit are used
with Varispeed V7 IP65.
Frequency inverters 17

Omron V7 Specifications

General

Series	V7
Cooling Method	Forced air cooling
Power Rating	0.4kW to 15kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
