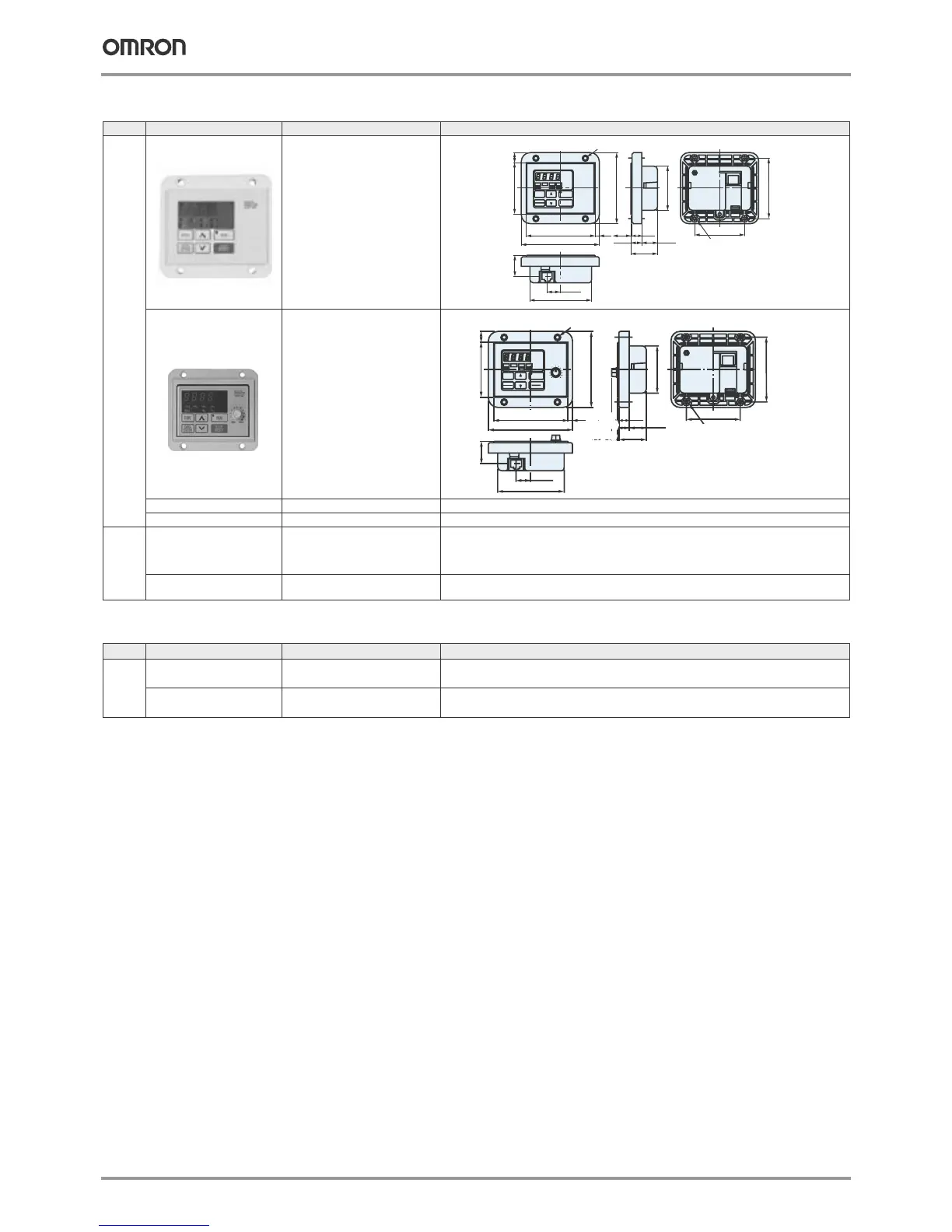

Omron V7 User Manual

20
Frequency inverters
E Accessories
E Computer software
Types Model Description Functions
Digital operator
JVOP-146
Remote digital operator
without potentiometer
JVOP-144
Remote digital operator
with potentiometer
72606-CVS31060 Blank cover -----
3G3IV-PEZZ0838BA Digital operator case same as JVOP-144 without operator
Accessories
3G3IV-PCN126
3G3IV-PCN326
Digital operator
extension cable
1 meter
3 meters
-----
3G3IV-PCN329-E PC configuration cable
-----
Types Model Description Installation
Software
CX-drive Computer software Configuration and monitoring software tool
CX-One Computer software Configuration and monitoring software tool
DATA
(15.5)
STOP
78 (3.07)
18.2
(0.72)
88 (3.46)
5
(0.2)
80 (3.15)
4-4.4 DIA. MTG HOLES
58 (2.28)
11
(0.43)
70 (2.76)
15.5 (0.61)
23.1
(0.91)
50 (1.97)
10.5
(0.41)
30.4
(1.20)
1.7
(0.07)
12.2
(0.48)
68 (2.68)
56 (2.20)
4-M4 SPOT FACING
DEEP 3.5 (0.14)
4-4.4 dia. MTG holes
4-M4 spot facing
deep 3.5 (0.14)
DSPL
STOP
RESET
DATA
ENTER
78 (3.07)
18.2
(0.72)
88 (3.46)
5
(0.2)
80 (3.15)
4-4.4 DIA. MTG HOLES
58 (2.28)
11
(0.43)
70 (2.76)
15.5 (0.61)
23.1
(0.91)
50 (1.97)
10.5
(0.41)
30.4
(1.20)
68 (2.68)
56 (2.20)
4-M4 SPOT FACING
DEEP 3.5 (0.14)
RUN
DIGITAL
OPERATOR
JVOP-140
MIN MAX
12.2 (0.48)12.2 (0.48)
9.3 (0.37)
9.3 (0.37)
1.7 (0.07)
1.7 (0.07)
4-4.4 dia. MTG holes
4-M4 spot facing
deep 3.5 (0.14)
Varispeed V7
21
F Braking unit, braking resistor unit
Inverter Braking resistor unit
Voltage Max.
applicable
motor
output kW
Inverter model
CIMR-V7AZ
Inverter-mounted type
(3 %ED, 10 sec max)
Separately-installed type
(10 %ED, 10 sec. max.)
Three-
phase
Single-
phase
Model
ERF-
150WJ_
Resis-
tance
Ω
No. of
used
Braking
torque %
Model
LKEB-
#
Resistor spec.
(per one unit)
W Ω
No. of
used
Braking
torque %
Connectable
min. resis-
tance Ω
200 V
(single-/
three-phase)
0.12 20P1 B0P1 401 400 1 220 – – – – 300
0.25 20P2 B0P2 401 400 1 220 – – – – 300
0.55 20P4 B0P4 201 200 1 220 20P7 70 200 1 220 200
1.1 20P7 B0P7 201 200 1 125 20P7 70 200 1 125 120
1.5 21P5 B1P5 101 100 1 125 21P5 260 100 1 125 60
2.2 22P2 B2P2 700 70 1 120 22P2 260 70 1 120 60
4.0 24P0 B4P0 620 62 1 100 23P7 390 40 1 125 32
5.5 25P5 – – – – – 25P5 520 30 1 115 9.6
7.5 27P5 – – – – – 27P5 780 20 1 125 9.6
400 V
(three-
phase)
0.37 40P2 – 751 750 1 230 – – – – 750
0.55 40P4 – 751 750 1 230 40P7 70 750 1 230 750
1.1 40P7 – 751 750 1 130 40P7 70 750 1 130 510
1.5 41P5 – 401 400 1 125 41P5 260 400 1 125 240
2.2 42P2 – 301 300 1 115 42P2 260 250 1 135 200
3.0 43P0 –
401 400 2 105 43P7 390 150 1 135 100
4.0 44P0 –
5.5 45P5 – – – – – 45P5 520 100 1 135 32
7.5 47P5 – – – – – 47P5 780 75 1 130 32
In the interest of product improvement, specifications are subject to change without notice.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. I20E-EN-02
Varispeed V718

Omron V7 Specifications

General

Series	V7
Cooling Method	Forced air cooling
Power Rating	0.4kW to 15kW
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheating, Short Circuit
Output Voltage	3-phase 200 to 240 VAC, 3-phase 380 to 480 VAC
