Omron VARISPEED F7 Datasheet

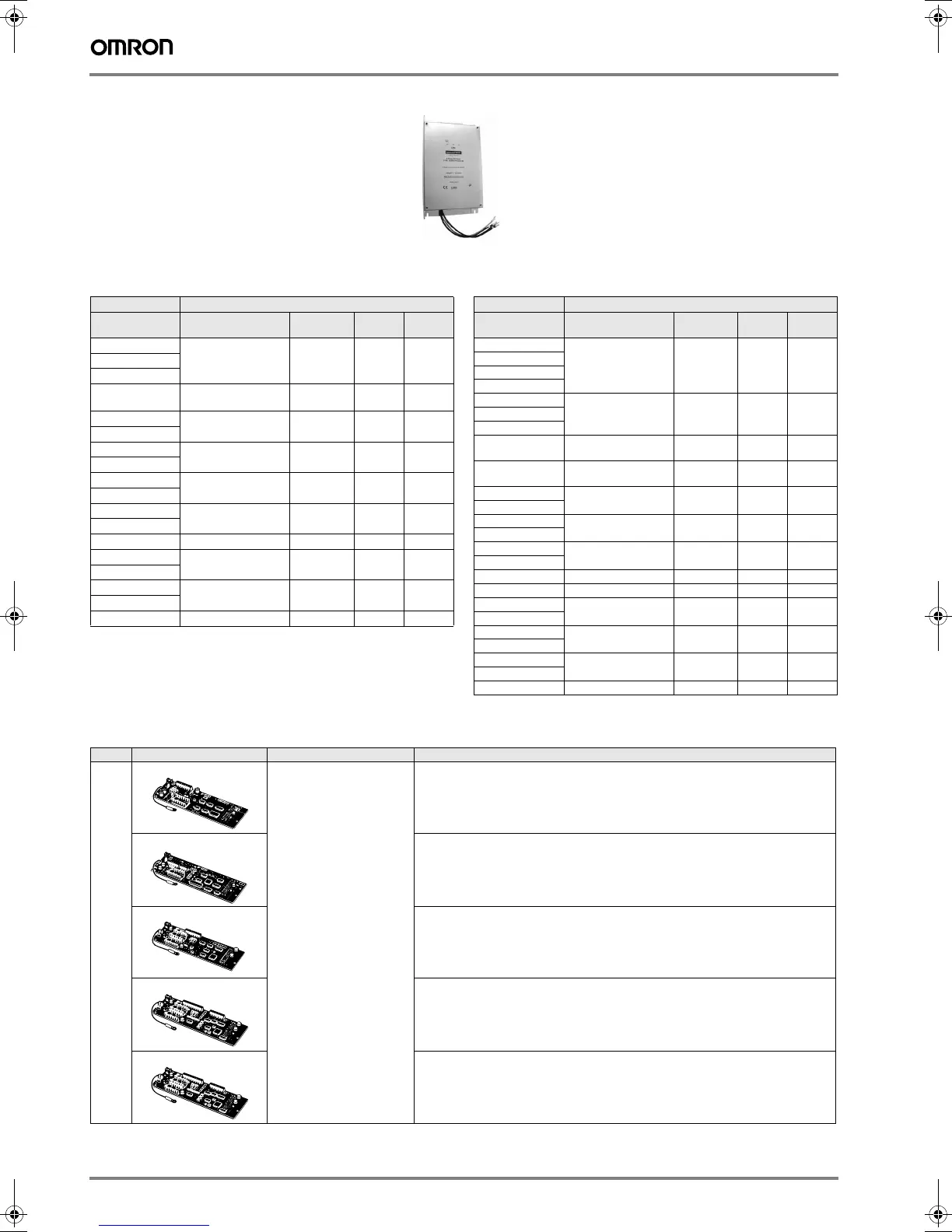

284 Frequency inverters
A Line filters
200 V 400 V
B Feedback speed control cards
Inverter model Line filters
Varispeed F7 Type
EN55011
class
Current
(A)
Weight
(kg)
CIMR-F7Z20P4 3G3RV-PFI3010-SE B, 25 m
A, 100 m
10 1.2
CIMR-F7Z20P7
CIMR-F7Z21P5
CIMR-F7Z22P2 3G3RV-PFI3018-SE B, 25 m
A, 100 m
18 1.3
CIMR-F7Z23P7 3G3RV-PFI2035-SE B, 25 m
A, 100 m
35 1.4
CIMR-F7Z25P5
CIMR-F7Z27P5 3G3RV-PFI2060-SE B, 25 m
A, 100 m
60 3
CIMR-F7Z2011
CIMR-F7Z2015 3G3RV-PFI2100-SE B, 25 m
A, 100 m
100 4.9
CIMR-F7Z2018
CIMR-F7Z2022 3G3RV-PFI2130-SE A, 100 m 130 4.3
CIMR-F7Z2030
CIMR-F7Z2037 3G3RV-PFI2160-SE A, 100 m 160 6.0
CIMR-F7Z2045 3G3RV-PFI2200-SE A, 100 m 200 11.0
CIMR-F7Z2055
CIMR-F7Z2075 3G3RV-PFI3400-SE A, 100 m 400 8.6
CIMR-F7Z2090
CIMR-F7Z2110 3G3RV-PFI3600-SE A, 100 m 600 11.0
Inverter model Line filter
Varispeed F7 Model
EN 55011
class*
Current
(A)
Weight
(kg)
CIMR-F7Z40P4
3G3RV-PFI3010-SE
B, 25 m
A, 100 m
10 1.2
CIMR-F7Z40P7
CIMR-F7Z41P5
CIMR-F7Z42P2
CIMR-F7Z43P7
3G3RV-PFI3018-SE
B, 25 m
A, 100 m
18 1.3CIMR-F7Z44P0
CIMR-F7Z45P5
CIMR-F7Z47P5 3G3RV-PFI3021-SE
B, 25 m
A, 100 m
21 1.8
CIMR-F7Z4011 3G3RV-PFI3035-SE
B, 25 m
A, 100 m
35 2.2
CIMR-F7Z4015
3G3RV-PFI3060-SE
B, 25 m
A, 100 m
60 4.0
CIMR-F7Z4018
CIMR-F7Z4022
3G3RV-PFI3070-SE
B, 25 m
A, 100 m
70 3.4
CIMR-F7Z4030
CIMR-F7Z4037
3G3RV-PFI3100-SE A, 100 m 100 4.5
CIMR-F7Z4045
CIMR-F7Z4055 3G3RV-PFI3130-SE A, 100 m 130 4.7
CIMR-F7Z4075 3G3RV-PFI3170-SE A, 100 m 170 6.0
CIMR-F7Z4090
3G3RV-PFI3200-SE A, 100 m 250 11
CIMR-F7Z4110
CIMR-F7Z4132
3G3RV-PFI3400-SE A, 100 m 400 8.5
CIMR-F7Z4160
CIMR-F7Z4185
3G3RV-PFI3600-SE A, 100 m 600 11.0
CIMR-F7Z4220
CIMR-F7Z4300 3G3RV-PFI3800-SE A, 100 m 800 31.0
Type Model Description Function
Feedback speed control card
PG-A2 / 3G3FV-PPGA2
PG speed controller card
(used for V/f control with PG or
flux vector)
• Phase A pulse (single pulse) inputs (voltage, complementary, open collector input)
• PG frequency range: Approx. 30 kHz max.
[Power supply output for PG: +12 V, max. current 200 mA]
• Pulse monitor output: +12 V, 20 mA
PG-B2 / 3G3FV-PPGB2 • Phase A and B pulse inputs (exclusively for complementary input)
• PG frequency range: Approx. 30 kHz max.
[Power supply output for PG: +12 V, max. current 200 mA]
• Pulse monitor output: Open collector, +24 V, Max. current 30 mA
PG-D2 / 3G3FV-PPGD2 • Phase A pulse (differential pulse) input for V/f control (RS-422 input)
• PG frequency range: Approx. 300 kHz max.
[Power supply output for PG: +5 V or +12 V, max. current 200 mA]
• Pulse monitor output: RS-422
PG-X2 / 3G3FV-PPGX2 • Phase A, B and Z pulse (differential pulse) inputs (RS-422 input)
• PG frequency range: Approx. 300 kHz max.
[Power supply output for PG: +5 V or +12 V, max. current 200 mA]
• Pulse monitor output: RS-422
PG-Z2 • Phase A, B and Z pulse (differential pulse) inputs (RS-422 input)
• PG frequency range: Approx. 300 kHz max.
[Power supply output for PG: +5 V or +12 V, max. current 200 mA]
• Pulse monitor output: RS-422
• Dual channel encoder: 1st channel A, B, Z / 2nd channel A, B, Z or open collector.
Y203-EN2-02-Katalog.book Seite 284 Mittwoch, 24. Mai 2006 2:22 14
