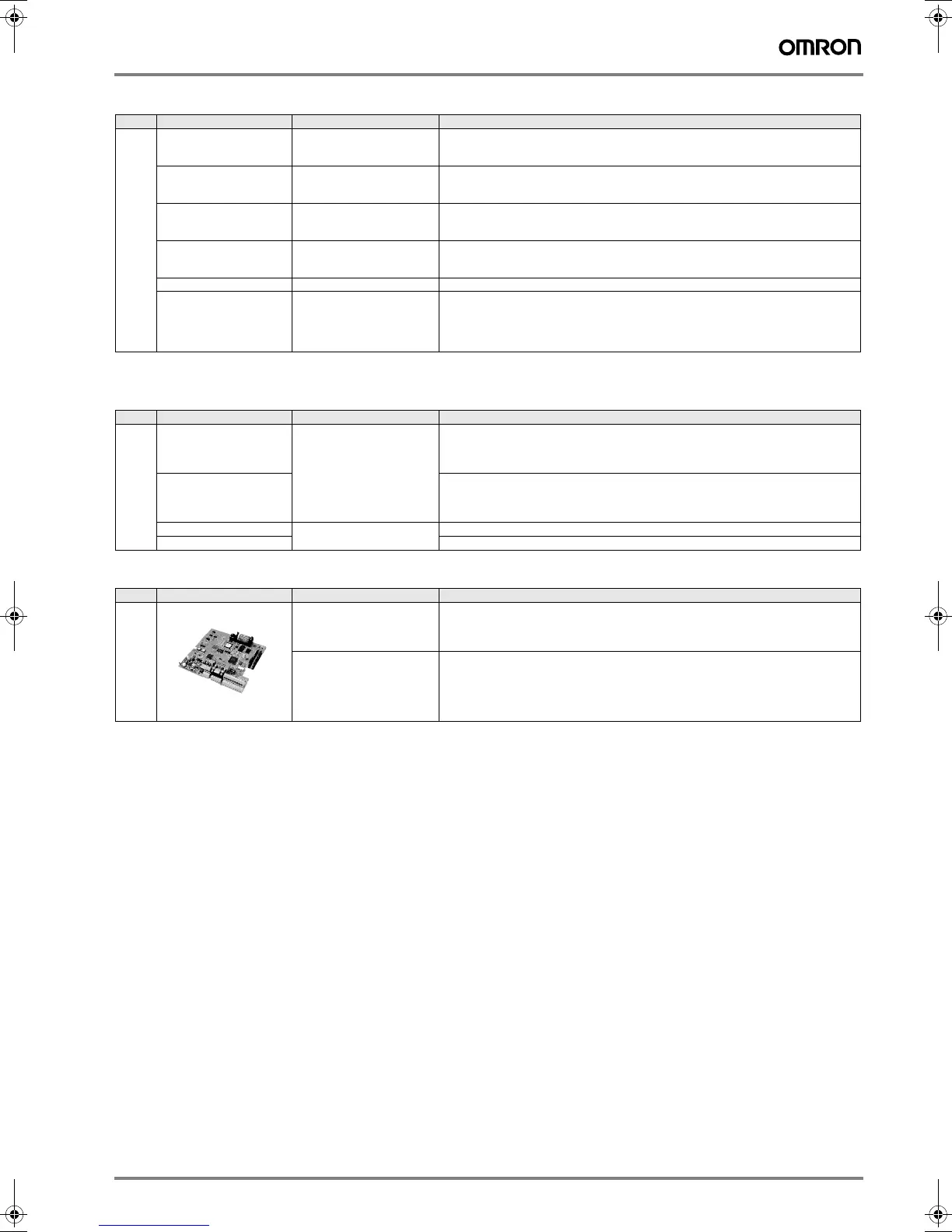

Varispeed F7 285
C Communication option cards
D Reference option cards
E PLC option cards
Type Model Description Function
Communication option card
3G3RV-PDRT2 DeviceNet option card
Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through DeviceNet communication with the
host controller.
SI-P1 PROFIBUS-DP option card
Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through PROFIBUS-DP communication
with the host controller.
SI-S1 CANopen option card
Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through CANopen communication with the
host controller.
SI-J LONWORKS option card
Used for HVAC control, running or stopping the inverter, setting or referencing parameters,
and monitoring output current, watt-hours, or similar items through LONWORKS communi-
cations with peripheral devices.
CM090 Ethernet option card MODBUS TCP/IP ethernet interface unit.
SI-T
MECHATROLINK - II
option board
High speed motion bus.
Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through MECHATROLINK-II communica-
tion with the host controller.
Host controller: TrajeXia, MCH or MP series
1
1. Please refer to TrajeXia, MCH or MP series section for host controllers detailed information.t
Type Model Description Function
Reference option card
AI-14U / 3G3IV-PAI14U
Analog input card
2 channel high resolution analog input card
Channel 1: 0 to 10 V (20 KΩ)
Channel 2: 4 to 20 mA (250 Ω)
Resolution 14 bit
AI-14B / 3G3IV-PAI14B
3 Channel high resolution analog input card
Signal level: -10 to +10V (20 KΩ)
s4 to 20 mA (250 Ω)
•Resolution: 13 bit + sign
DI-08 / 3G3IV-PDI08
Digital reference card
8 bit digital speed reference input card
DI-16H2 / 3G3IV-PDI16H2 16 bit digital speed reference input card
Type Model Description Function
PLC option
3G3RV-P10ST8-E
3G3RV-P10ST8-DRT-E
PLC option
Full PLC features, wireless installation and seamless access to the inverter parameters and
analogue/digital inputs and outputs.
Embedded Compubus/S fieldbus
Standard OMRON tools can be used for programming
PLC option with DeviceNet
Same features as standard model with DeviceNet support.
