Omron VARISPEED V7 Manual

Varispeed V7
223
Frequency Inverters

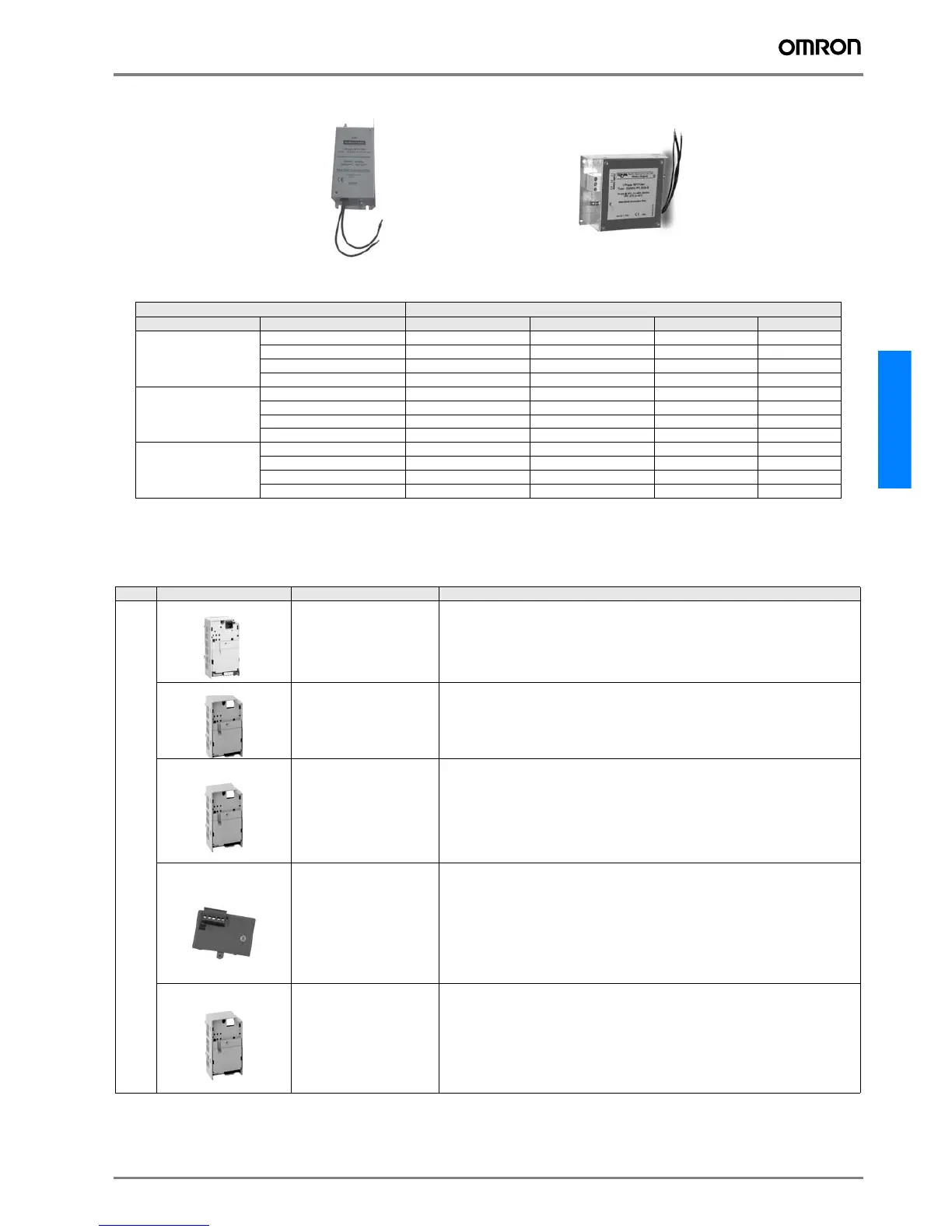

ALine Filters *
* V7 IP65 Types are built-in filter inverters.
B Communication Cards
Inverter Line filter
Voltage Model CIMR-V7AZ Schaffner Rasmi Rated current (A) Weight (kg)
3-Phase 200 V AC
20P1 / 20P2 / 20P4 / 20P7 3G3MV-PFI2010-SE 3G3MV-PFI2010-E 10 0.8
21P5 / 22P2 3G3MV-PFI2020-SE 3G3MV-PFI2020-E 20 1.0
24P0 3G3MV-PFI2030-SE 3G3MV-PFI2030-E 30 1.1
25P5 / 27P5 - 3G3MV-PFI2050-E 50 2.3
Single-Phase 200 V AC
B0P1 / B0P2 / B0P4 3G3MV-PFI1010-SE 3G3MV-PFI1010-E 10 0.6
B0P7 / B1P5 3G3MV-PFI1020-SE 3G3MV-PFI1020-E 20 1.0
B2P2 3G3MV-PFI1030-SE 3G3MV-PFI1030-E 30 1.1
B4P0 3G3MV-PFI1040-SE 3G3MV-PFI1040-E 40 1.2
3-Phase 400 V AC
40P2 / 40P4 3G3MV-PFI3005-SE 3G3MV-PFI3005-E 5 1.0
40P7 / 41P5 / 42P2 3G3MV-PFI3010-SE 3G3MV-PFI3010-E 10 1.0
40P4 3G3MV-PFI3020-SE 3G3MV-PFI3020-E 15 1.1
45P5 / 47P5 3G3MV-PFI3030-SE 3G3MV-PFI3030-E 30 2.3
Type Model
1
1. Option frame accessory is needed for V7 IP65 types when communications option units are used.
Description Function
Communication option board
3G3MV-PDRT2
DeviceNet option card
2
2. For V7 IP65 types with DeviceNet communication, SI-N1/V7 should be used.
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through DeviceNet communication with the
host controller.
SI-P1/V7
Profibus-DP option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through Profibus-DP communication with
the host controller.
SI-S1/V7
Can open option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through CANopen communication with the
host controller.
3G3MV-PCORT21
Can open Gateway
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through CANopen communication with the
host controller.
SI-T1/V7
MECHATROLINKII option card
• Used for running or stopping the inverter, setting or referencing parameters, and monitoring
output frequency, output current, or similar items through MECHATROLINK II communica-
tion with the host controller.
• High speed motion bus.
• Host controller: TrajeXia, MCH or MP Series.
3
3. Please refer to TrajeXia, MCH or MP Series Section for host controller technical information.
