START-STOP
SOLENOID
(Failure
to Shut Down)
In case the set does not shut down when moving Run-
Stop/Reset-Remote switch to Sfop position, the stop
solenoid linkage may be out of adjustment. See
Figure 27. Adjust as follows:
1.
Remove the joint that attaches the stop solenoid
rod to injection pump arm.
2.
With the engine running, move the lever arm on
the injection pump back slowly towards radiator
just until engine stops.
3. Hold lever in this same position and adjust linkage
accordingly.
4.
Snap rod joint back on injection pump arm.
FILLER PLUG
GOVERNOR LUBRICATING OIL-
START-STOP
SOLENOID
SPEED- CONTROL
LEVER
_ v
A
(^DISCONNECT JOINT HERE •
fti
(2)PULL BACK LEVER'IN THIS DIRECTION
JUST UNTIL ENGINE STOPS
(3)READJUST ROD ACCORDINGLY
AND SNAP BACK ON
OIL LEVEL PLUG
DRAIN PLUG
(GOV.LUBE OIL)

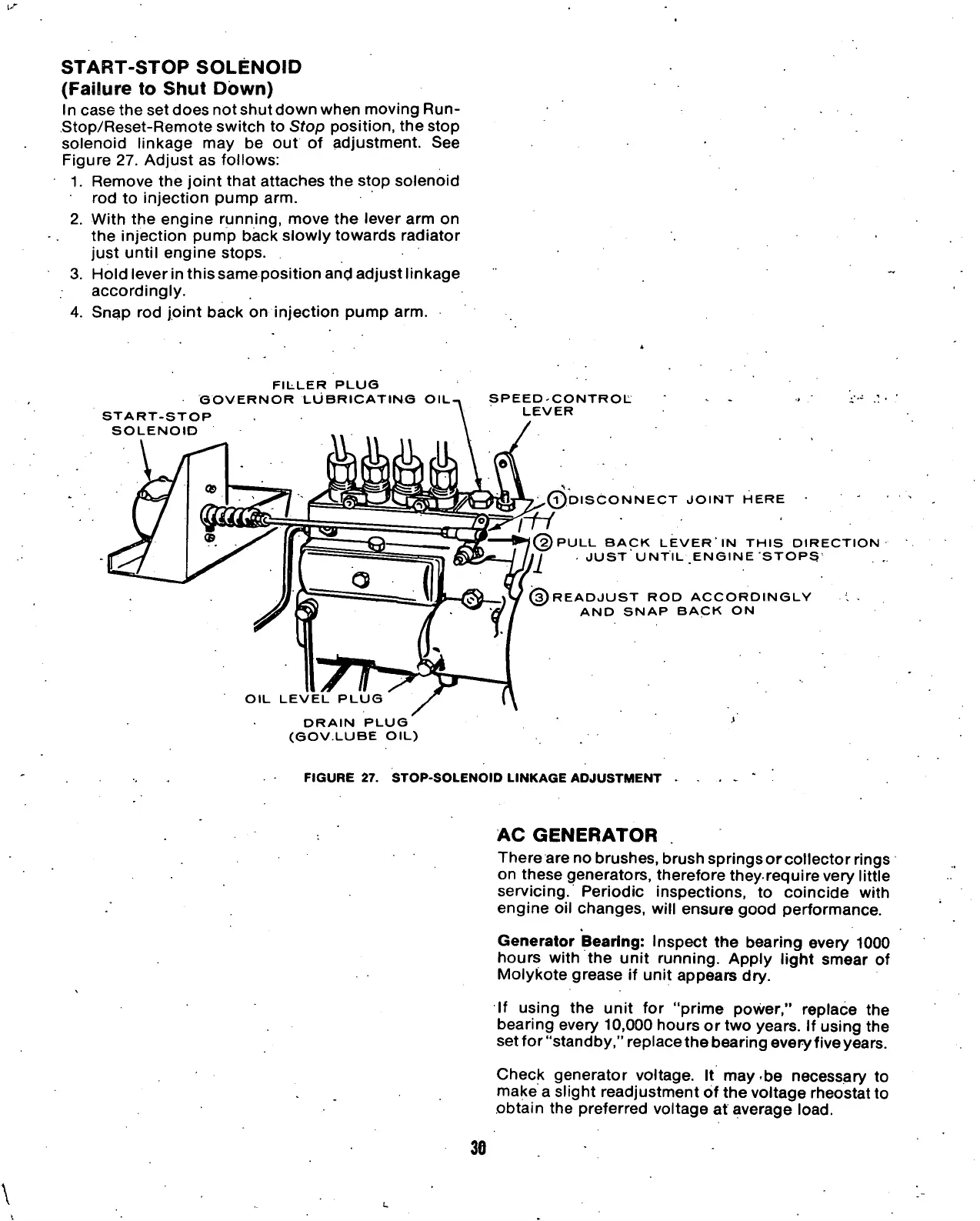

FIGURE 27. STOP-SOLENOID LINKAGE ADJUSTMENT
AC
GENERATOR
There are no brushes, brush springsorcollector rings
on these generators, therefore they require very little
servicing.
Periodic inspections, to coincide with
engine oil changes, will ensure good performance.
Generator Bearing: Inspect the bearing every 1000
hours with the unit running. Apply light smear of
Molykote grease if unit appears dry.
If using the unit for "prime power," replace the
bearing every 10,000 hours or two years. If using the
set for "standby," replace the bearing every five years.
Check generator voltage. It may be necessary to
make a slight readjustment of the voltage rheostat to
obtain the preferred voltage at average
load.
