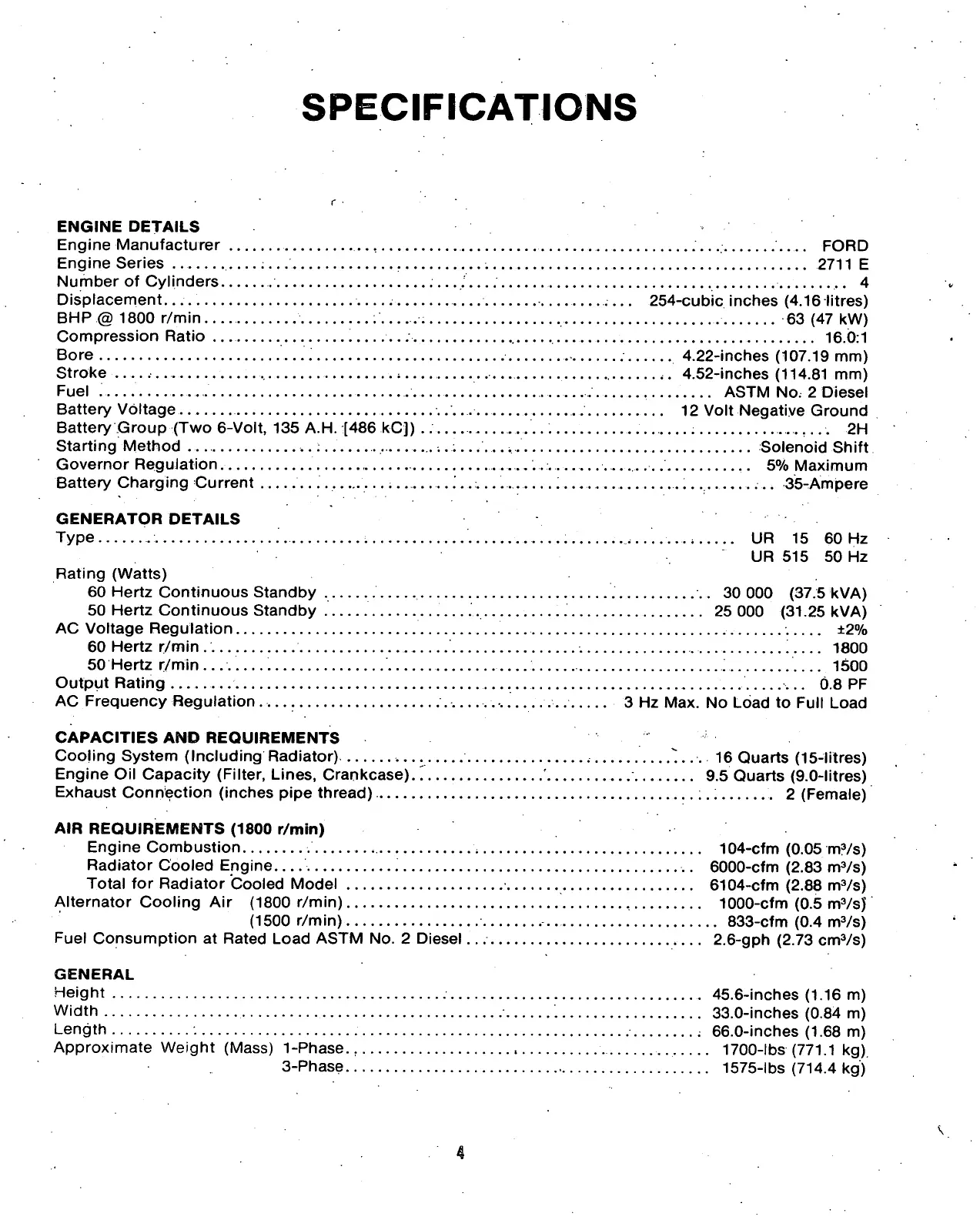

SPECIFICATIONS
r
ENGINE
DETAILS
Engine Manufacturer FORD
Engine Series 2711 E
Number of Cylinders 4
Displacement. 254-cubic inches (4.16 litres)
BHP @ 1800
r/min
; 63 (47 kW)
Compression Ratio 16.0:1
Bore .- 4.22-inches (107.19 mm)
Stroke , > 4.52-inches (114.81 mm)
Fuel ASTM No. 2 Diesel
Battery Voltage 12 Volt Negative Ground
Battery Group (Two 6-Volt, 135 A.H. [486 kC]) 2H
Starting Method : Solenoid Shift
Governor Regulation .. 5% Maximum
Battery Charging Current . ... 35-Ampere
GENERATOR DETAILS
Type UR 15 60 Hz
UR 515 50 Hz
Rating (Watts)
60 Hertz Continuous Standby 30 000 (37.5 kVA)
50 Hertz Continuous Standby 25 000 (31.25 kVA)
AC Voltage Regulation ±2%
60 Hertz
r/min
; 1800
50 Hertz r/min......... 1500
Output Rating 0.8 PF
AC Frequency Regulation 3 Hz Max. No Load to Full Load
CAPACITIES
AND
REQUIREMENTS
Cooling System (Including Radiator) 1... 16 Quarts (15-litres)
Engine Oil Capacity (Filter, Lines, Crankcase)/ ' 9.5 Quarts (9.0-litres)
Exhaust Connection (inches pipe thread) 2 (Female)
AIR REQUIREMENTS (1800 r/min)
Engine Combustion , 104-cfm (0.05 m
3
/s)
Radiator Cooled Engine 6000-cfm (2.83 m
3
/s)
Total for Radiator Cooled Model 6104-cfm (2.88 m
3
/s)
Alternator Cooling Air (1800 r/min) , 1000-cfm (0.5 rnVsj
(1500 r/min) 833-cfm (0.4 m
3
/s)
Fuel Consumption at Rated Load ASTM No. 2 Diesel 2.6-gph (2.73 cm
3
/s)
GENERAL
Height 45.6-inches (1.16 m)
Width 33.0-inches (0.84 m)
Length
;
66.0-inches (1.68 m)
Approximate Weight (Mass) 1-Phase.. 1700-lbs (771.1 kg).
3-Phase 1575-lbs (714.4 kg)
