Onan 30.0 DEH-15R Series - Generator Wiring Options

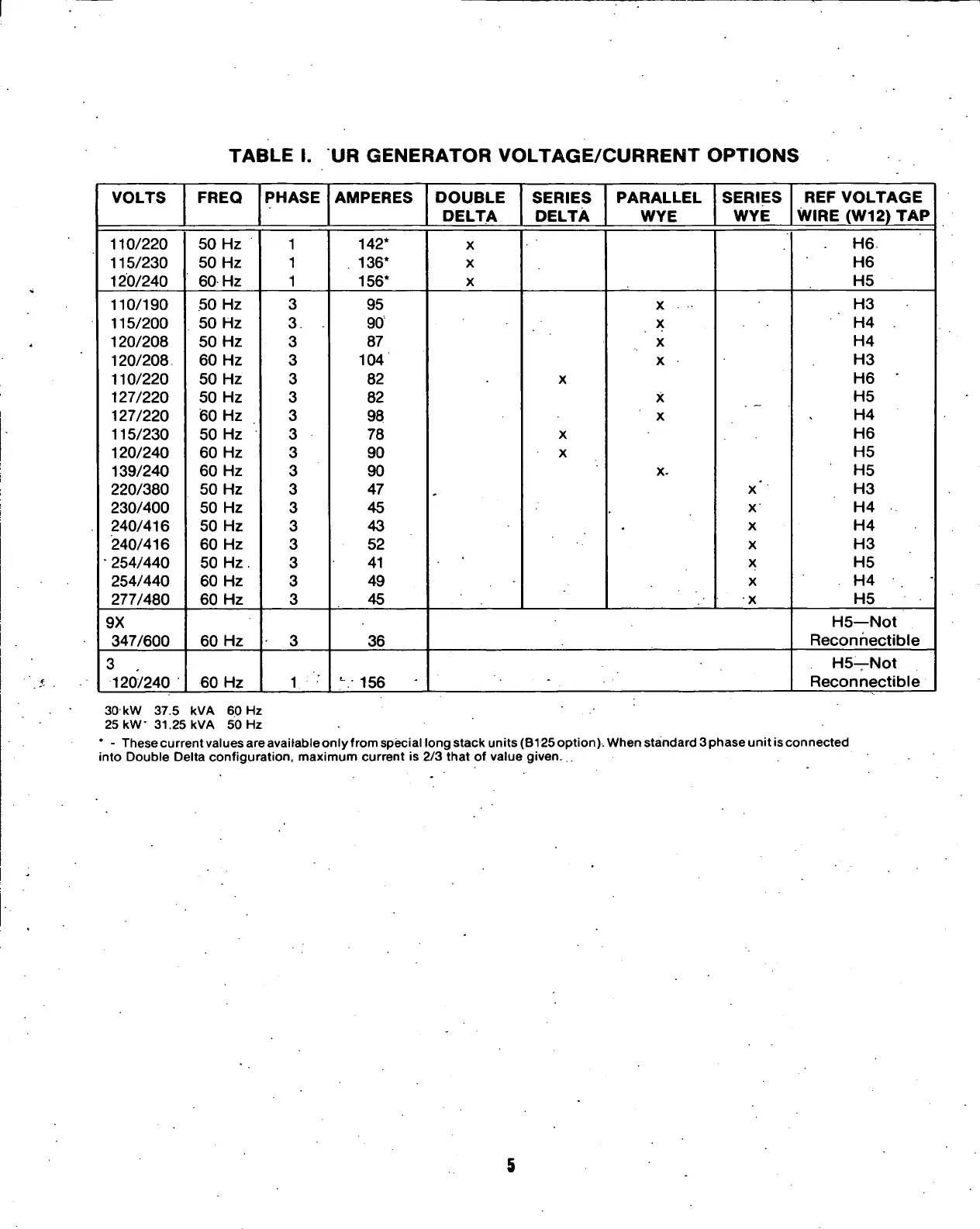

TABLE I. UR GENERATOR VOLTAGE/CURRENT OPTIONS
VOLTS
FREQ PHASE
AMPERES
DOUBLE
SERIES PARALLEL
SERIES
REF VOLTAGE
DELTA DELTA
WYE
WYE
WIRE (W12) TAP
110/220 50 Hz 1
142*
X
H6
115/230 50 Hz 1 136*
x
H6
120/240 60 Hz 1 156*
x H5
110/190 50 Hz
3
95
X H3
115/200
50 Hz 3 90
X
H4 .
120/208 50 Hz 3
87 X
H4
120/208
60 Hz 3 104
X H3
110/220 50 Hz 3
82 x
H6 '
127/220 50 Hz
3 82
X
H5
127/220
60 Hz
3
98
X
H4
115/230 50 Hz
3
78
x H6
120/240 60 Hz 3 90
X H5
139/240
60 Hz 3 90
X-
H5
220/380
50 Hz 3 47
x'
H3
230/400 50 Hz 3 45
x H4
240/416 50 Hz 3 43
x
H4
240/416
60 Hz
3 52
x H3
• 254/440
50 Hz.
3
41
x
H5
254/440 60 Hz 3 49
x
H4 .
277/480 60 Hz
3 45
X
H5
9X
H5—Not
347/600 60 Hz
3
36
Reconnectible
3 .
H5—Not
120/240 60 Hz
1 '
L
156
Reconnectible
30 kW 37.5 kVA 60 Hz
25 kW 31.25 kVA 50 Hz
* - These current values are available only from special long stack units (Bl 25 option). When standard 3 phase unit is connected
into Double Delta configuration, maximum current is 2/3 that of value given.
