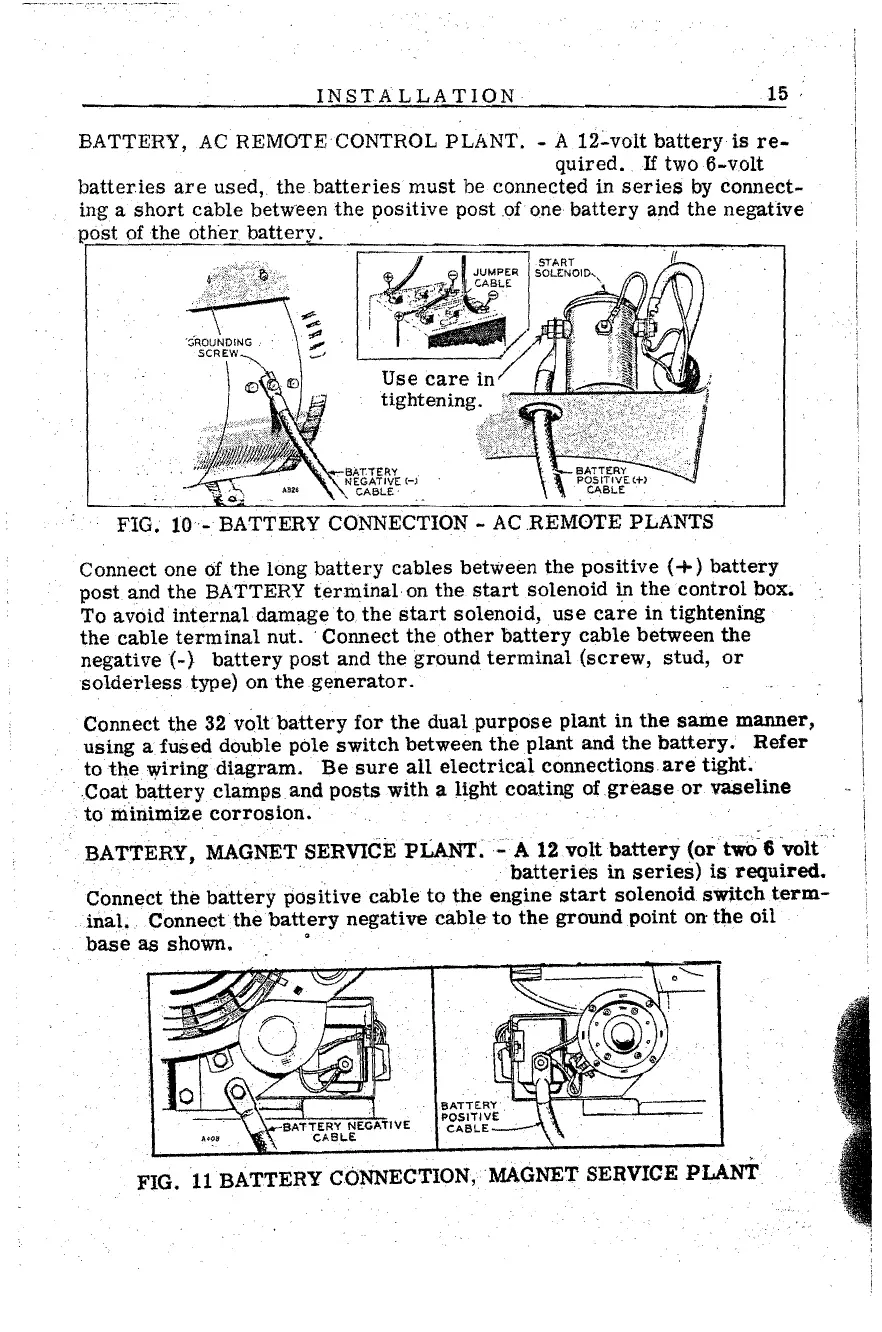

INSTALLATION
15 '
BATTERY, AC REMOTECONTROL PLANT. - A 12~volt battery is re-
quired. If two6-volt
batteries are used, the batteries must be connected in series by connect-
ing a
short cable betw'een the positive posto! one battery and the negative
of the other hn++~~ .. ,
FIG. 10- BATTERY CONNECTION - AC ,REMOTE PLANTS
Connect one of
the long battery cables between the positive (+) battery
post and the BATTERY terminal on the start solenoid in the control box.
To avoid
internal damage to the start solenoid, use care in tightening
the cable terminal nut. 'Connect the other battery cable between the
negative {-} battery post and the ground terminal (screw, stud, or
solderless type) on the generator .
Connect the
32 volt battery for the dual purpose plant in the same manner
1
using a :fused double pole switch between the plant and the battery. Refer
to the , wiring diagram. Be sure all electrical connections are tighL
'Coat batteryclampsand posts with a light coating of grease or vaseline
, to minimize corrosion. '
BATTERY, MAGNET SERVICEPLANT.':'A 12 volt battery (or tWO" 6 volt"
, ' " "
", ' ,,', batteries in series) is required.
Connect the battery positive cable to the engine start solenoid switch term-
inal.Connectthebattery negative cable to the ground point on the oil
base as shown. •
FIG. 11 BATTERY CONNECTION, MAGNET SERVICE PLANT
