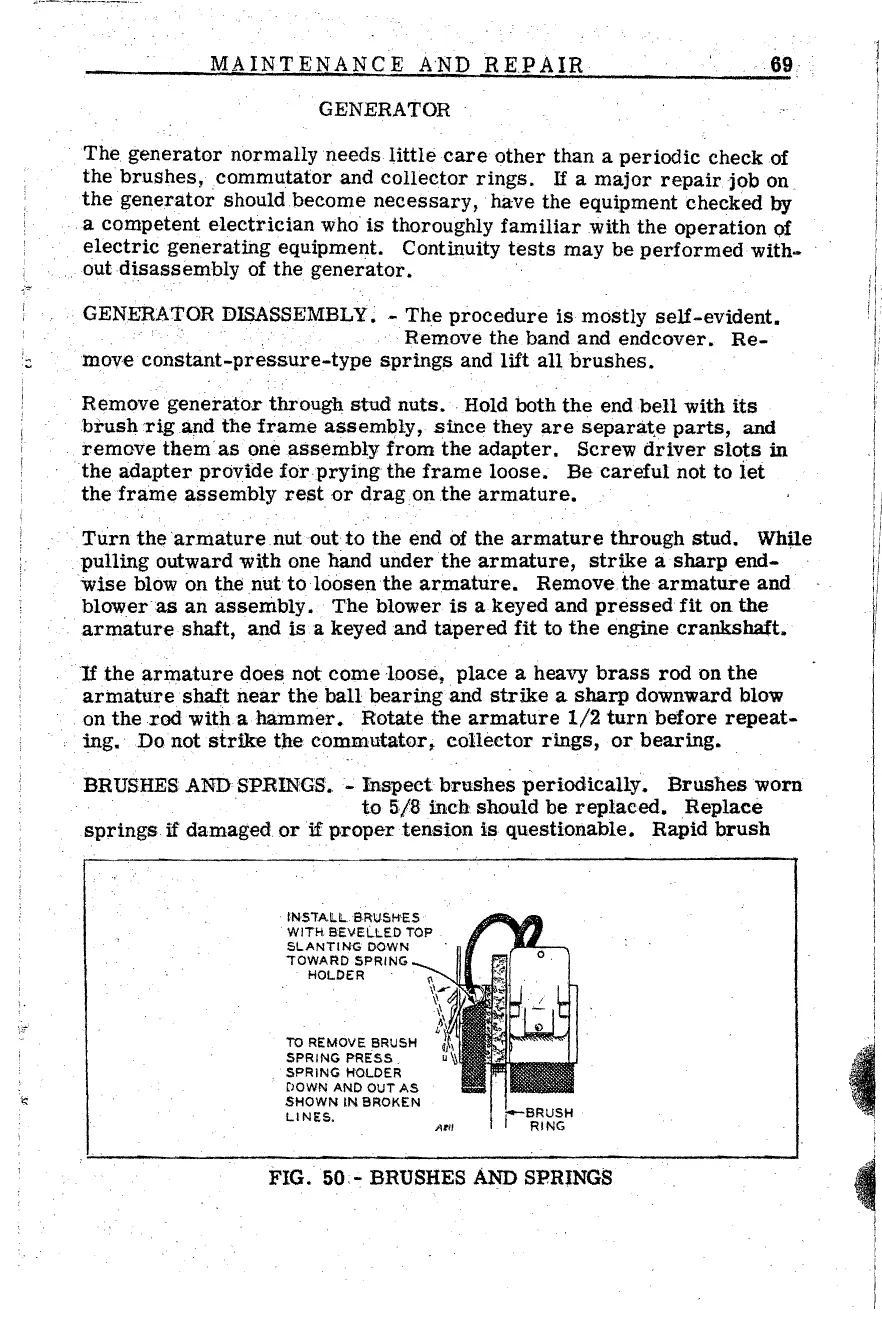

MAINTENANCE AND REPAIR
69
GENERATOR
The.
generator normally needs little care other than a periodic check of
the brushes, ,commutator and collector rings. If a major repair job on
the generator should become necessary, have the equipment checked by
a competent electrician who is thoroughly familiar with the operation of
electric generating equipment. Continuity tests may be performed with-
out disassembly of the generator.
GENERATOR DISASSEMBLY. - The procedure is mostly self-evident.
Remove the band and endcover. Re-
::lllove constant-pressure-type springs and lift all brushes.
Remove generator through stud nuts .. Hold both the end bell with its
btushrigand the frame assembly, since they are separat~e parts, and
remove them as one assembly from the adapter. Screw driver slots in
the adapter provide for prying the frame loose. Be careful not to iet
the frame assembly restor dragon the armature.
, Turn thearmaturenutoutto the end of the armature through stud. While
pulling
outwardwith one hand under the armature, strike a sharp end-
wise blow on the nuttoloosenthe ar.mature. Remove the armature and
blower
as an assembly. The blower is a keyed and pressed fit on the
armature shaft, and isa keyed and tapered fit to the engine crankshaft.
1f the armature does. not come loose, place a heavy brass rod on the
armature shaft near the ball bearing and strike a sharp downward blow
on
the rod with a hammer • Rotate the armature 1/2 turn before repeat-
ing. Do not strike the commutator ~ collector rings, or bearing.
BRUSHES AND SPRINGS.. - Inspect brushes periodically. Brushesworn
to 5/8incb should be replaced. Replace
springs if damaged or if p,roper tension is questionable. Rapid brush
INSTALIi..BRUSH"ES
WITH BEVELLED TOP
SLANTlN'G DOWN
,OWARD SPRING
HOLDER
TO REMOVE BRUSH
SPRING PRESS,
SPRING HOLDER
DOWN AND OUT
AS
SHOWN IN BROKEN
LINES. 4
RING
FIG. 50, - BRUSHES AND SPRJNGS
