60
MAINTENANCE AND REPAIR
rotocaps are faulty, install new rotocaps.
TAPPET ADJUSTMENT. - These plants are equipped with adjustable
tappets. To make a valve adjustment, re-
move the valve covers. Crank the engine over slowly by hand until the
left hand intake valve, when facing the flywheel, opens and closes.
Continue about 1/4 turn until the mark on the flywheel and the "TC"
. mark on the gear cover are in line.. This should place the left hand
piston at the top of its compression stroke, the pOSition it must be in
to get proper valve adjustment for· the left hand cylinder. Clearances
are shown in the Table of Clearances herein. For each valve the thin-
ner gauge (minimum) should pass. freely between the valve stem and
valve tappet but the thicker gauge (maximum) should not. Refer to
the illustration, Valve Service,
To correct the valve clearance, simply turn the adjusting screw as
needed to obtain the right clearance. The screw is self-locking and
will stay where set.
If valve clearance can no longer be held within given limits, replace
the valve.
To adjust the valves on the right hand cylinder,
. crank the engine over one complete revolution
and again line up the mark on the flywheel
and the "TC" mark on the gear cover. Then
follow the adjustment given for the valves of
the left hand cylinder.
GEAR COVER. ~ After removing the mounting
.
screws, tap the gear caver
gel1~ly with a soft faced hammer to loosen it.
When installing the gear cover, make sure that
. the pin in the gear cover engages the metal lined
IF FEELER WILL
ENTER HOLE ¥',
BALL HAS
FALLEN OUT.
=~==:=~--GOVERNOR
~~,.~~~
ARM
I;
. ~GOVERNOR II CUP
GOVERNOR
;.:,
I ~' <'\ \ ROLL PIN
SHAFT
I fO: \ \ ROTATE GOVER-
~ : NOR CUP SO
,
l .... ,.
, (SMOOTH 510E
°1 .
TOWARD CUP>
ff ~ ~: 1FITS INTO THE
GOVERNOR
METAL LINED
I
~N"!;:'- , HOLE IN THE
... '---';.J' p",-
. ° SHAFT YOKE
o" ,..",.~l1. CUP
A3S9a.

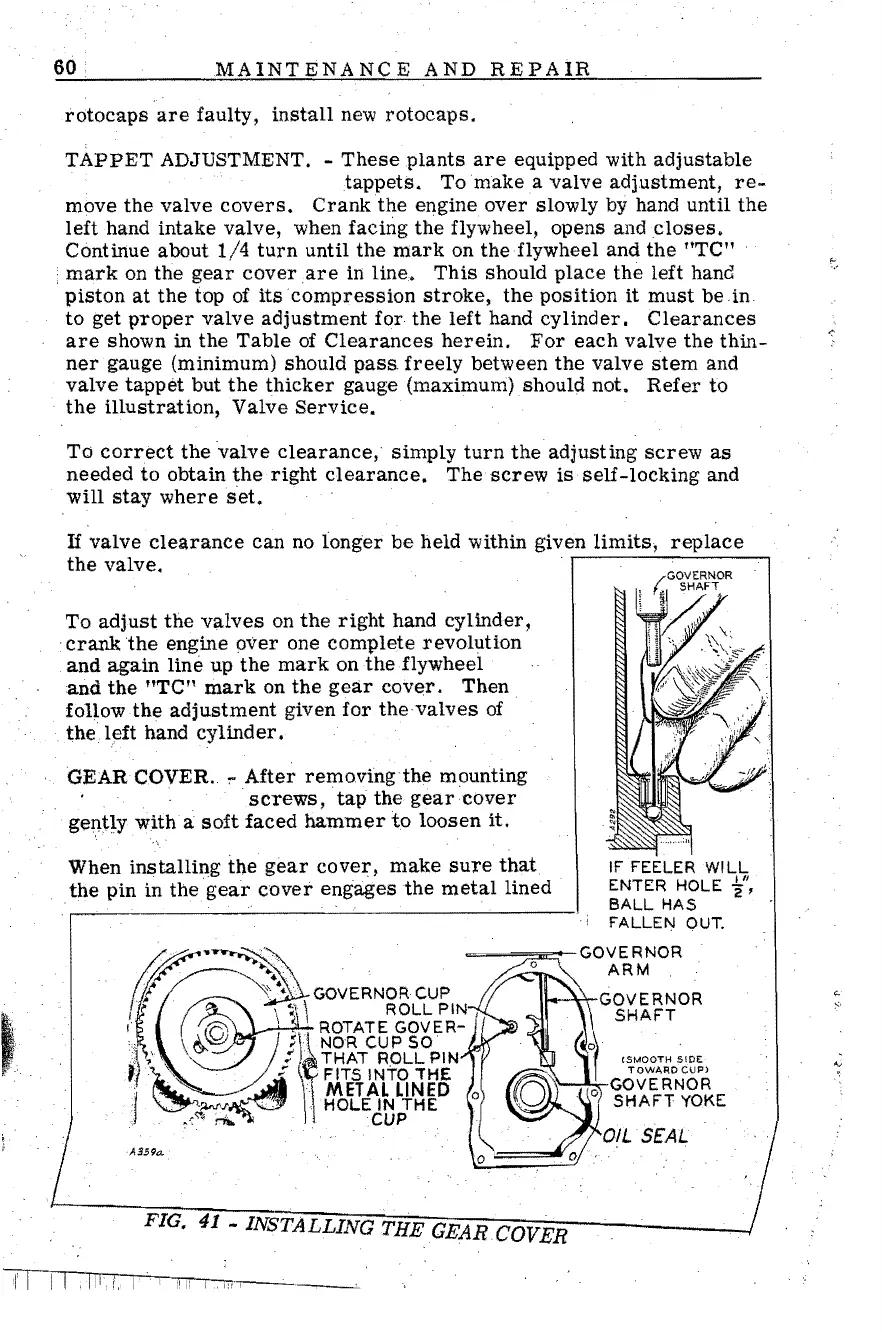

FIG.
- INSTALLING
THEGEARCOVER

Onan CCK Series Specifications

General

Fuel Type	Gasoline
Fuel System	Carburetor
Frequency	60 Hz
RPM	1800 RPM
Starting System	Electric or Recoil
Starting Method	Electric or Recoil Start
Voltage	120/240V
Compression Ratio	6.5:1
Ignition System	Battery Ignition
Phase	Single-phase
