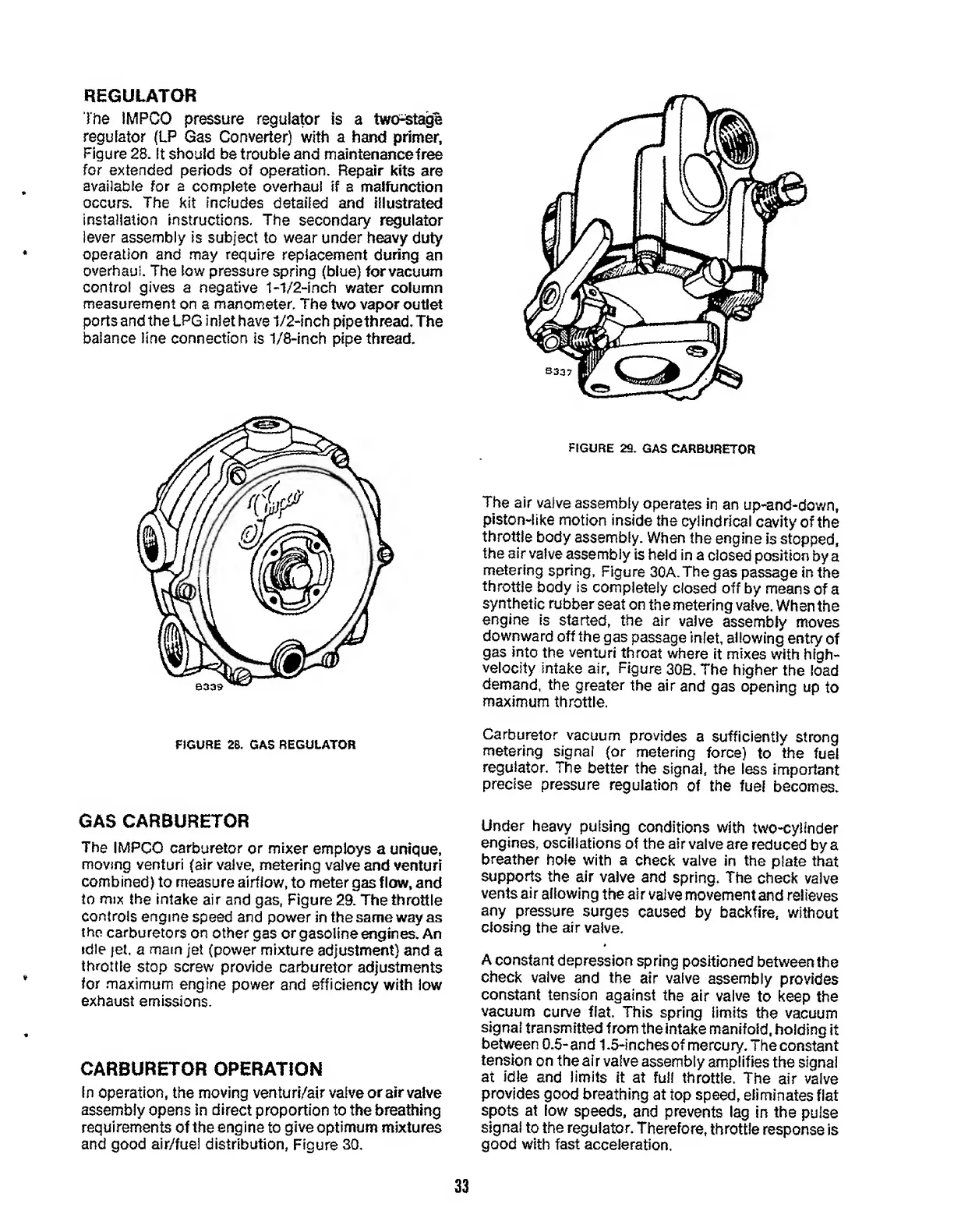

REGULATOR
The
IMPCO
pressure
regulator
is
a
two-stage
regulator
(LP
Gas
Converter)
with
a
hand
primer.
Figure
28.
it
should
be
trouble
and
maintenance
free
for
extended
periods
of
operation.
Repair
kits
are
available
for
a
complete
overhaul
if
a
malfunction
occurs.
The
kit
includes
detailed
and
illustrated
installation
instructions.
The
secondary
regulator
lever
assembly
is
subject
to
wear
under
heavy
duty
operation
and
may
require
replacement
during
an
overhaul.
The
low
pressure
spring
(blue)
forvacuum
control
gives
a
negative
1-1/2-inch
water
column
measurement
on
a
manometer.
The
two
vapor
outlet
ports
and
the
LPG
inlet
have
1/2-inch
pipethread.
The
balance
line
connection
is
1/8-inch
pipethread.
FIGURE
28.
GAS
REGULATOR
GAS
CARBURETOR
The
IMPCO
carburetor
or
mixer
employs
a
unique,
moving
venturi
{air
valve,
metering
valve
and
venturi
combined)
to
measure
airflow,
to
meter
gas
flow,
and
to
mix
the
intake
air
and
gas,
Figure
29.
The
throttle
controls
engine
speed
and
power
in
the
same
way
as
the
carburetors
on
other
gas
or
gasoline
engines.
An
idle
jet,
a
mam
jet
(power
mixture
adjustment)
and
a
throttle
stop
screw
provide
carburetor
adjustments
for
maximum
engine
power
and
efficiency
with
low
exhaust
emissions.
CARBURETOR
OPERATION
in
operation,
the
moving
venturi/air
valve
or
air
valve
assembly
opens
in
direct
proportion
to
the
breathing
requirements
of
the
engine
to
give
optimum
mixtures
and
good
air/fuel
distribution,
Figure
30.
FIGURE
29.
GAS
CARBURETOR
The
air
valve
assembly
operates
in
an
up-and-down,
piston-like
motion
inside
the
cylindrical
cavity
of
the
throttle
body
assembly.
When
the
engine
is
stopped,
the
air
valve
assembly
is
held
in
a
closed
position
by
a
metering
spring.
Figure
30A.The
gas
passage
in
the
throttle
body
is
completely
closed
off
by
means
of
a
synthetic
rubber
seat
on
the
metering
valve.
When
the
engine
is
started,
the
air
valve
assembly
moves
downward
off
the
gas
passage
inlet,
allowing
entry
of
gas
into
the
venturi
throat
where
it
mixes
with
high-
velocity
intake
air.
Figure
30B.
The
higher
the
load
demand,
the
greater
the
air
and
gas
opening
up
to
maximum
throttle.
Carburetor
vacuum
provides
a
sufficiently
strong
metering
signal
(or
metering
force)
to
the
fuel
regulator.
The
better
the
signal,
the
less
important
precise
pressure
regulation
of
the
fuel
becomes.
Under
heavy
pulsing
conditions
with
two-cylinder
engines,
oscillations
of
the
air
valve
are
reduced
by
a
breather
hole
with
a
check
valve
in
the
plate
that
supports
the
air
valve
and
spring.
The
check
valve
vents
air
allowing
the
air
valve
movement
and
relieves
any
pressure
surges
caused
by
backfire,
without
closing
the
air
valve.
A
constant
depression
spring
positioned
between
the
check
valve
and
the
air
valve
assembly
provides
constant
tension
against
the
air
valve
to
keep
the
vacuum
curve
flat.
This
spring
limits
the
vacuum
signal
transmitted
from
the
intake
manifold,
holding
it
between
0.5-and
1.5-inches
of
mercury.
The
constant
tension
on
the
air
valve
assembly
amplifies
the
signal
at
idle
and
limits
it
at
full
throttle.
The
air
valve
provides
good
breathing
at
top
speed,
eliminates
flat
spots
at
low
speeds,
and
prevents
lag
in
the
pulse
signal
to
the
regulator.
Therefore,
throttle
response
is
good
with
fast
acceleration.
33
