THROTTLE
CLOSED
CUTAWAY
VIEW
IDLE
RUBBER
SEAT
(ON
METERING
VALVE)
MIXER
BODY
MIXER
BODY
L
AIR
ENTRY
PASSAGE
IS
BLOCKED
MOVING
VENTURI
(AIR
VALVE)
-
CLOSED
POSITION
THROTTLE
BODY
THROTTLE
(CLOSED)
GAS
ENTRY
PASSAGE
IS
BLOCKED
AIR
VALVE
(METERING)
SPRING
-
EXPANDED
POSITION
AIR
ENTRY
PASSAGE
IS
OPEN
moving
VENTURI
!U
(AIR
VALVE)
^
-OPEN
POSITION
THROTTLE
(OPEN)
gas
entry
passage
is
OPEN
AIR
VALVE
(METERING)
SPRING
-
COMPRESSED
POSITION
TO
INTAKE
MANIFOLD

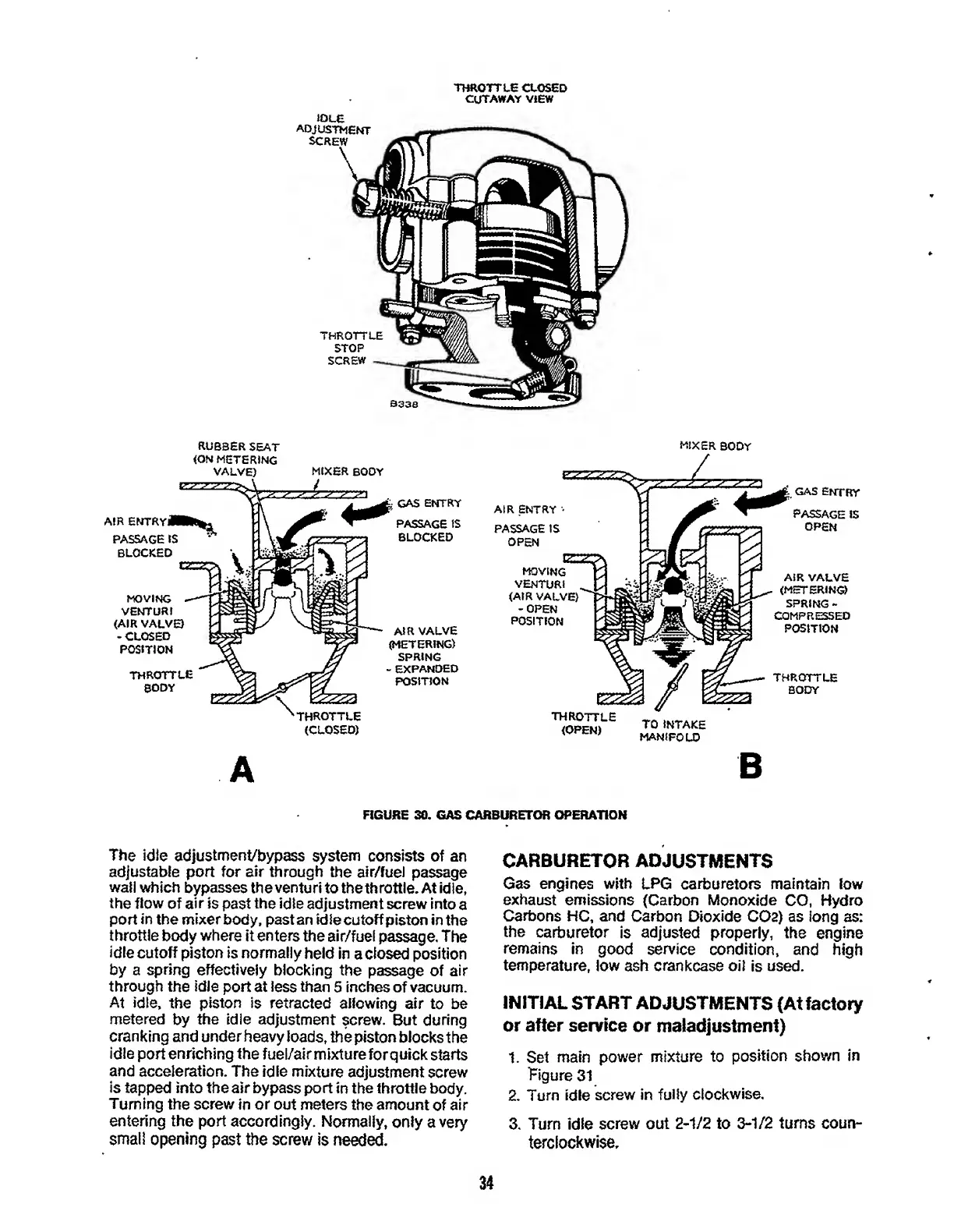

FIGURE
30.
GAS
CARBURETOR
OPERATION
The
idle
adjustment/bypass
system
consists
of
an
adjustable
port
for
air
through
the
air/fuel
passage
wall
which
bypasses
the
venturi
to
thethrottle.
At
idle,
the
flow
of
air
is
past
the
idle
adjustment
screw
into
a
port
in
the
mixer
body,
past
an
idle
cutoff
piston
inthe
throttle
body
where
it
enters
the
air/fuel
passage.
The
idle
cutoff
piston
is
normally
held
in
a
dosed
position
by
a
spring
effectively
blocking
the
passage
of
air
through
the
idle
port
at
less
than
5
inches
of
vacuum.
At
idle,
the
piston
is
retracted
allowing
air
to
be
metered
by
the
idle
adjustment
screw.
But
during
cranking
and
under
heavy
loads,
the
piston
blocks
the
idle
port
enriching
the
fuel/air
mixture
for
quick
starts
and
acceleration.
The
idle
mixture
adjustment
screw
is
tapped
into
the
air
bypass
port
in
the
throttle
body.
Turning
the
screw
in
or
out
meters
the
amount
of
air
entering
the
port
accordingly.
Normally,
only
a
very
small
opening
past
the
screw
is
needed.
CARBURETOR
ADJUSTMENTS
Gas
engines
with
LPG
carburetors
maintain
low
exhaust
emissions
(Carbon
Monoxide
CO,
Hydro
Carbons
HC,
and
Carbon
Dioxide
C02)
as
long
as:
the
carburetor
is
adjusted
properly,
the
engine
remains
in
good
service
condition,
and
high
temperature,
low
ash
crankcase
oil
is
used.
INITIAL
START
ADJUSTMENTS
(Atfactory
or
after
service
or
maladjustment)
1.
Set
main
power
mixture
to
position
shown
in
Figure
31
2.
Turn
idle
screw
in
fully
clockwise.
3.
Turn
idle
screw
out
2-1/2
to
3-1/2
turns
coun¬
terclockwise.
34
