Onan CCK User Manual

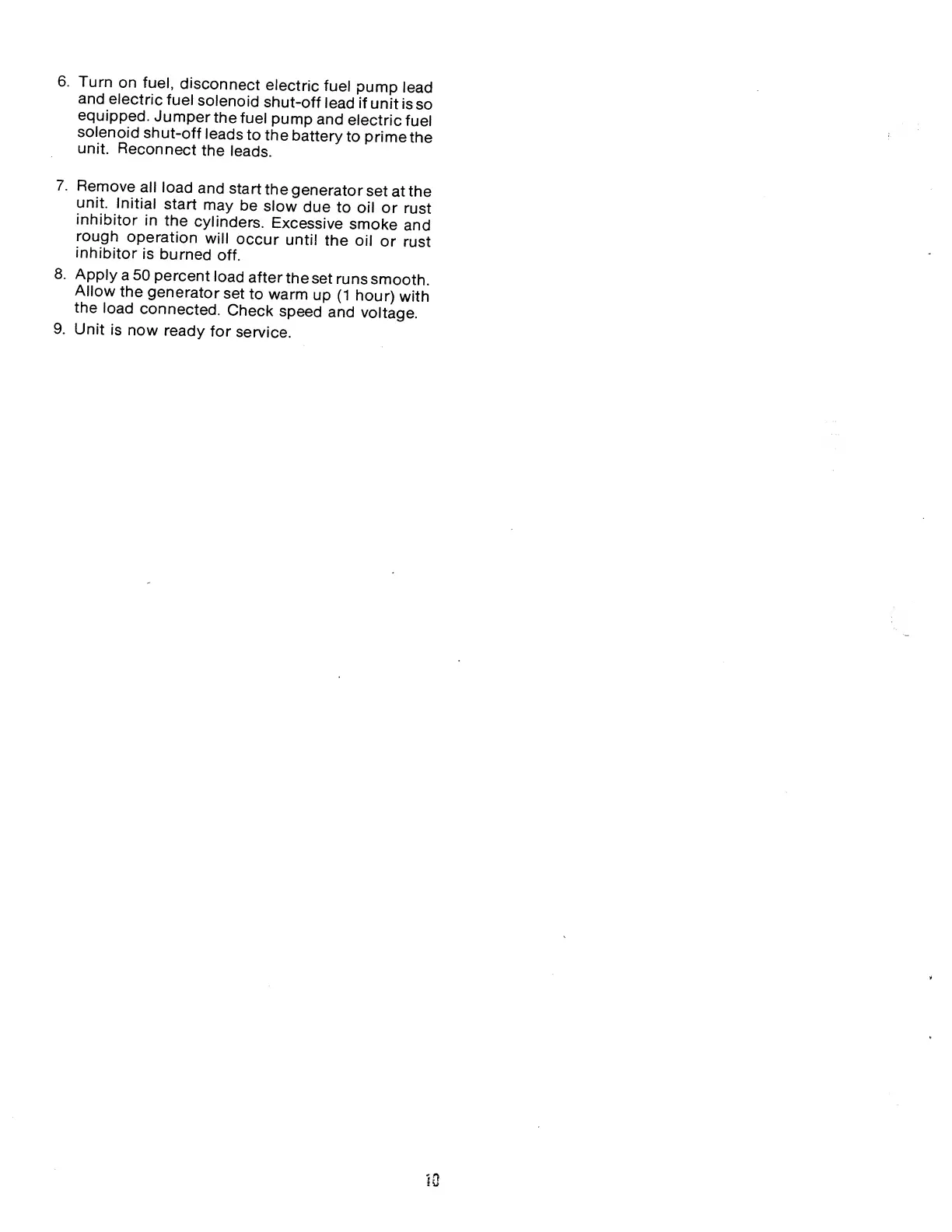

6. Turn on fuel, disconnect electric fuel pump lead
and electric fuel solenoid shut-off lead if unit is so
equipped. Jumper the fuel pump and electric fuel
solenoid shut-off leads to the battery to prime the
unit. Reconnect the leads.
7. Remove all load and start the generator set at the
unit. Initial start may be slow due to oil or rust
inhibitor in the cylinders. Excessive smoke and
rough operation will occur until the oil or rust
inhibitor is burned off.
8. Apply a 50 percent load after the set runs smooth.
Allow the generator set to warm up (1 hour) with
the load connected. Check speed and voltage.
9. Unit is now ready for service.

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
