Onan CCK User Manual

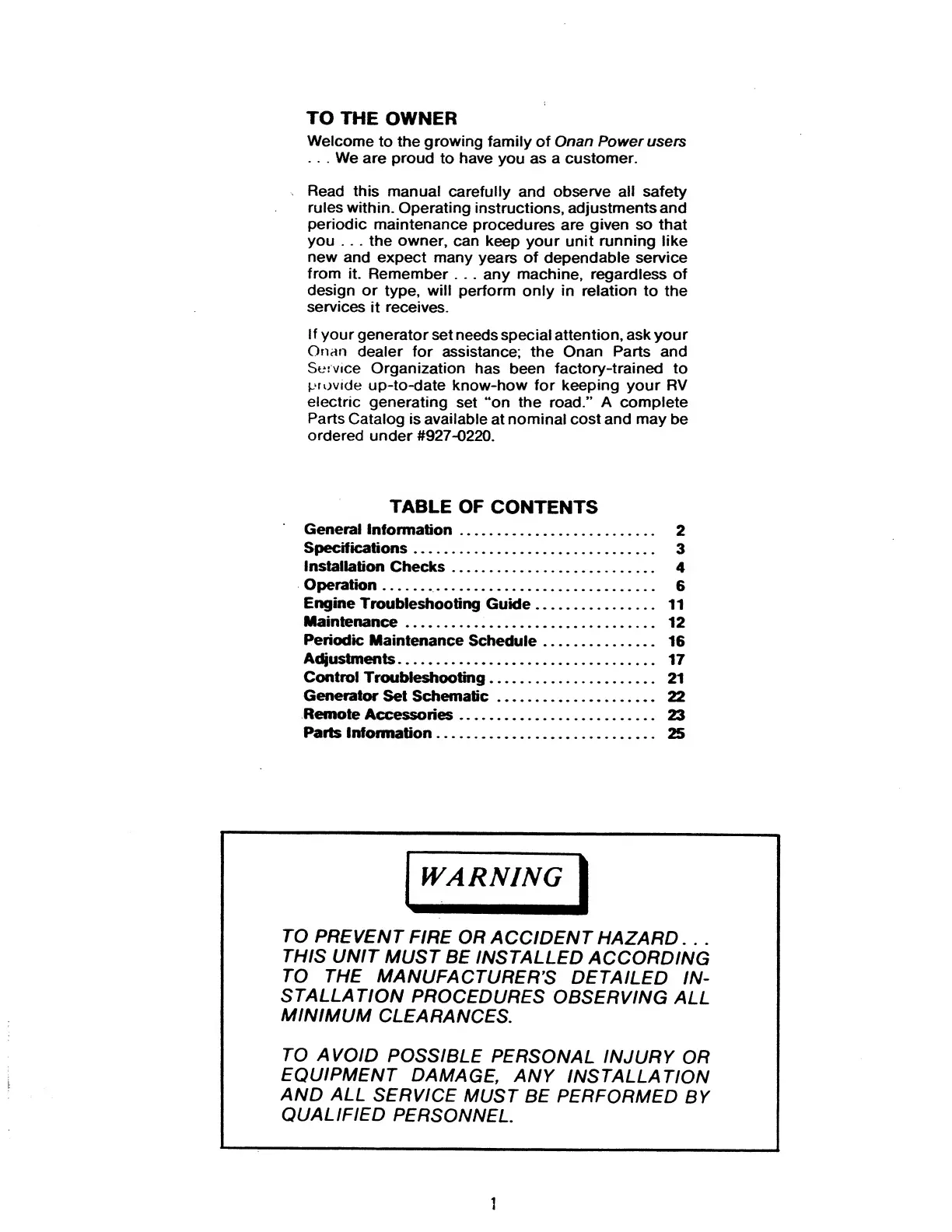

TO THE OWNER
Welcome to the growing family of Onan Power users
.. . We are proud to have you as a customer.
Read this manual carefully and observe all safety
rules within. Operating instructions, adjustments and
periodic maintenance procedures are given so that
you . . . the owner, can keep your unit running like
new and expect many years of dependable service
from it. Remember . . . any machine, regardless of
design or type, will perform only in relation to the
services it receives.
If your generator set needs special attention, ask your
Onan dealer for assistance; the Onan Parts and
Service Organization has been factory-trained to
provide up-to-date know-how for keeping your RV
electric generating set “on the road.” A complete
Parts Catalog is available at nominal cost and may be
ordered under #927-0220.
TABLE OF CONTENTS
General Information. 2
Specifications. 3
Installation Checks. 4
Operation.. 6
Engine Troubleshooting Guide. 11
Maintenance. 12
Periodic Maintenance Schedule. 16
Adjustments. 17
Control Troubleshooting. 21
Generator Set Schematic. 22
Remote Accessories. 23
Parts Information. 25
1 warningX
TO PREVENT FIRE OR ACCIDENT HAZARD. . .
THIS UNIT MUST BE INSTALLED ACCORDING
TO THE MANUFACTURERS DETAILED IN¬
STALLATION PROCEDURES OBSERVING ALL
MINIMUM CLEARANCES.
TO AVOID POSSIBLE PERSONAL INJURY OR
EQUIPMENT DAMAGE, ANY INSTALLATION
AND ALL SERVICE MUST BE PERFORMED BY
QUALIFIED PERSONNEL.
1

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
