Onan CCK User Manual

611-1127
WIRING DIAGRAM
SCHEMATIC
BTI
RECONNECTION CHARI
120V, 2W
J20/240V.3W
mil j
M2 T J-
Mi— 1
'
T
9 --
igifr
L__
M4-. ■ ■ ■

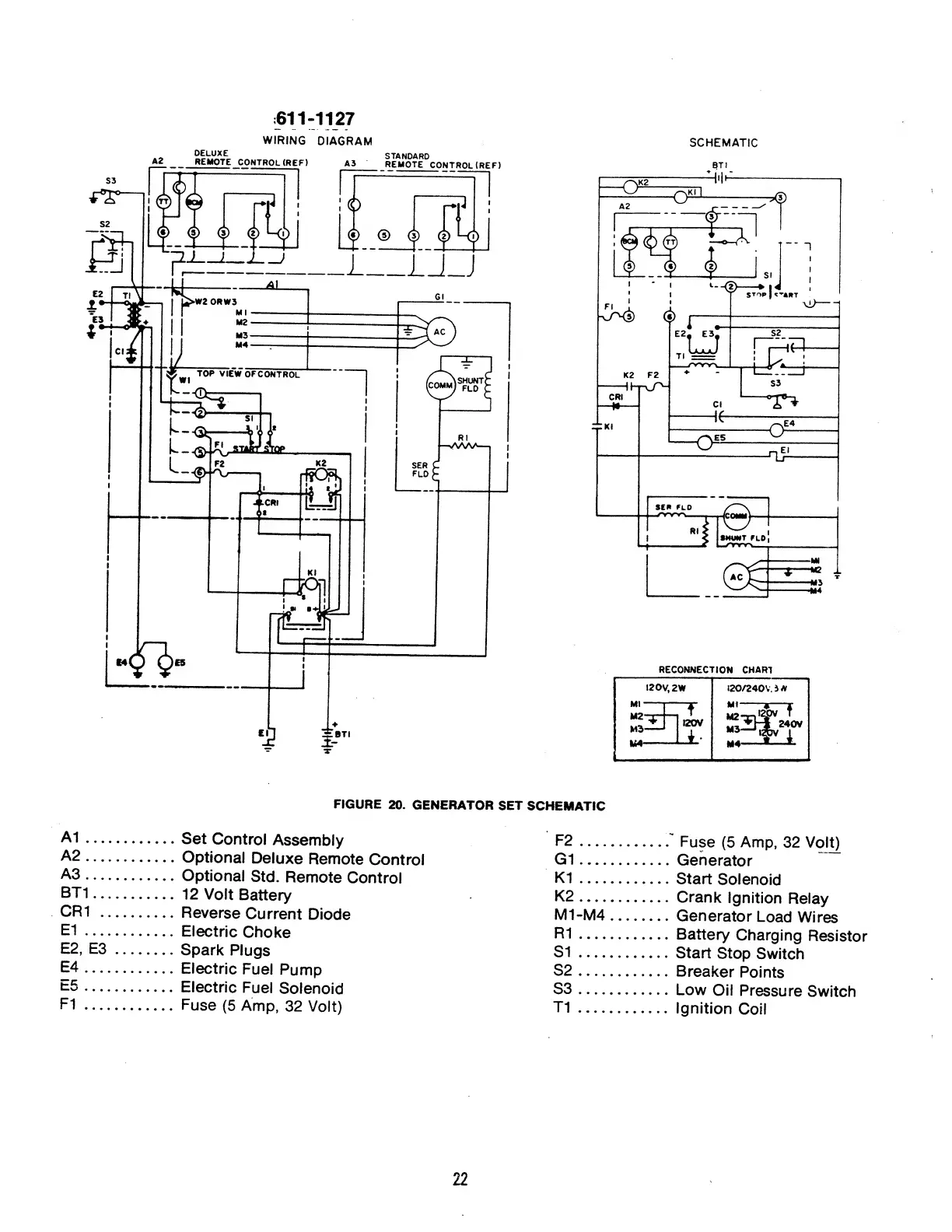

FIGURE 20. GENERATOR SET SCHEMATIC
A1.Set Control Assembly
A2.Optional Deluxe Remote Control
A3.Optional Std. Remote Control
BTI.12 Volt Battery
CR1 .Reverse Current Diode
El.Electric Choke
E2, E3.Spark Plugs
E4.Electric Fuel Pump
E5.Electric Fuel Solenoid
FI.. Fuse (5 Amp, 32 Volt)
F2. Fuse (5 Amp, 32 Volt)
G1.Generator
K1.Start Solenoid
K2.Crank Ignition Relay
M1-M4.Generator Load Wires
R1.Battery Charging Resistor
51 . S tart Stop Switch
52 . B r eaker Points
53 . L ow Oil Pressure Switch
T1.Ignition Coil
22

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
