Onan CCK User Manual

REMOTE ACCESSORIES
INSTALLING STANDARD REMOTE CON¬
TROL
This control includes a start-stop switch with an
indicator lamp. Install as follows:
1. Select switch location. Using Figure 21 as a guide,
drill screw holes and cut holes in RV panel.
2. Following national and local electrical codes and
using four insulated wires of predetermined
length (#18 or larger), connect remote switch to
terminals on generator. See Figure 22.
Ensure that leads from remote switch
connect with corresponding terminals
on generator terminal board.
Don’t route DC wires for remote control
through conduit containing AC load wir¬
ing. Induced voltages may cause erratic operation.
3. Insert remote switch in hole cutout and secure
with two #5 woodscrews supplied with switch.
-w Seal all holes that might allow noxious
gases from generator set into motor
home.

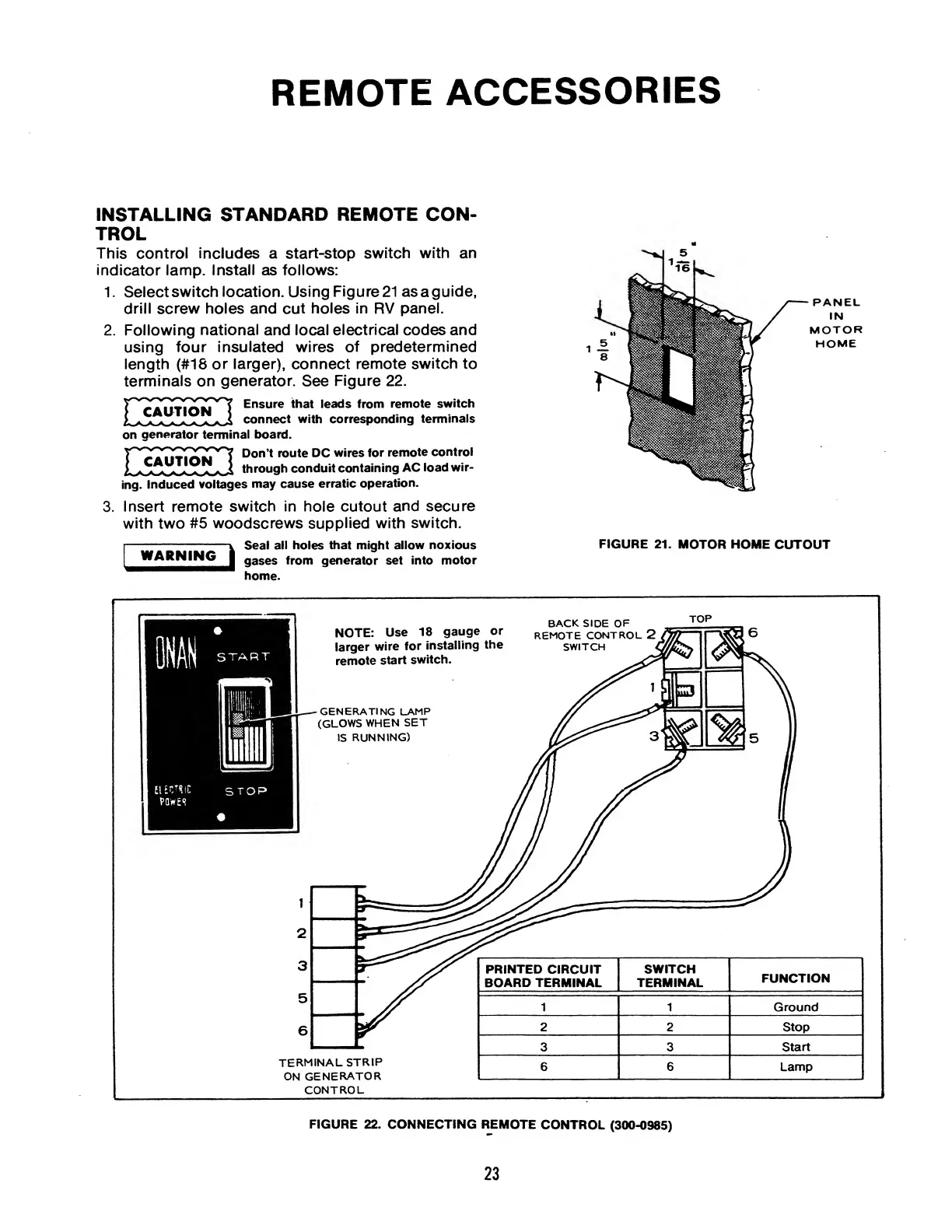

FIGURE 21. MOTOR HOME CUTOUT
NOTE: Use 18 gauge or
larger wire for installing the
remote start switch.
- GENERATING LAMP
(GLOWS WHEN SET
IS RUNNING)
BACK SIDE OF
REMOTE CONTROL!
SWITCH
TOP
TERMINAL STRIP
ON GENERATOR
CONTROL
PRINTED CIRCUIT
BOARD TERMINAL
SWITCH
TERMINAL
FUNCTION
1 1 Ground
2 2
Stop
3
3
Start
6
6 Lamp
FIGURE 22. CONNECTING REMOTE CONTROL (300-0985)
23

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
